Coima | BAP Series Self-Powered Downdraft Tables BAP M 2.5

by Coima
$13,395.00
SKU WSI-COIMABAPM2-5

Scratch & Dent (Stock Model)

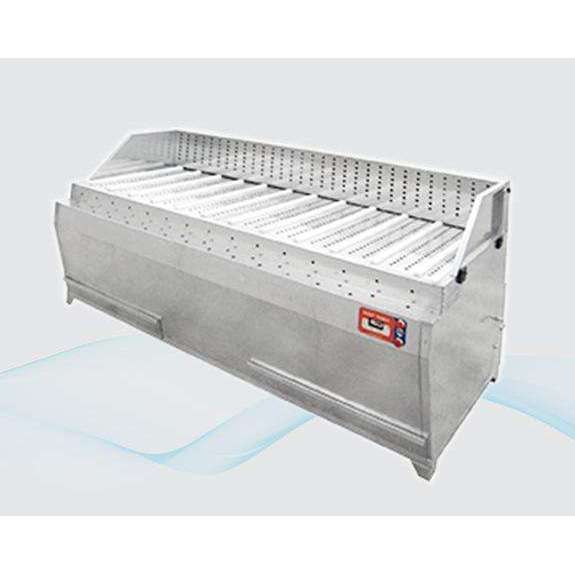

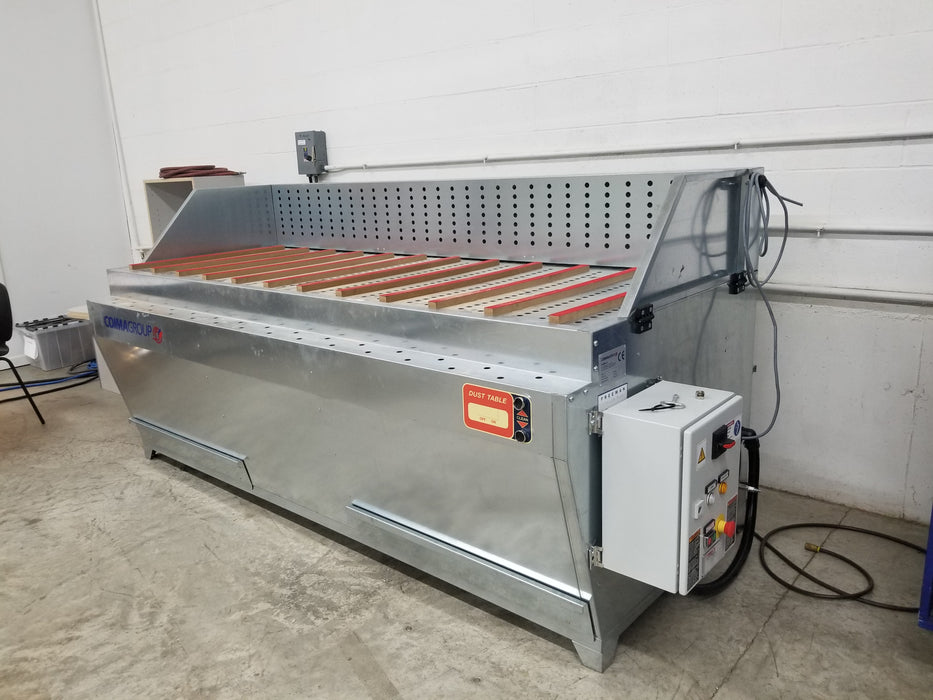

The BAP Series Self-Powered Downdraft Tables are ideal for sanding and finishing operations often used in woodworking and other dust-producing processes. The galvanized sheet steel construction provides a durable base with a 35″ deep work surface, and optional scratch-resistant felt strips offer additional workpiece protection.

The BAP Series tables are equipped with aluminized polyester filter cartridges and a pulse-jet compressed air cleaning system to provide maximum suction and extended filter life. Dust is collected in removable steel drawers at the bottom of the table for easy disposal. The integrated suction fan ensures consistent face velocity and provides for convenient mobility when the optional casters are included.

Includes

Other options include:

  • Automatic timer for the cleaning system
  • Side walls & rear suction wall
  • Spark-resistant fan configuration for added safety

The BAP-E Series offers an economical solution for light dust/light duty applications.

MODEL WIDTH FILTERS FILTER SIZE FILTER AREA FAN HP AIRFLOW
BAP E-2 79″ 2 Ø13”/ L23” 210 ft2 2HP 2,300 CFM
BAP E-2.5 98″ 2 Ø13”/ L27” 246 ft2 2HP 2,600 CFM
BAP E-3 118″ 4 Ø13”/ L39” 351 ft2 2HP 3,200 CFM


The BAP-M Series offers a more powerful solution for light to medium dust in medium or heavy duty applications.

MODEL WIDTH FILTERS FILTER SIZE FILTER AREA FAN HP AIRFLOW
BAP M-1 39″ 2 Ø13”/ L15” 158 ft2 1.5HP 1,700 CFM
BAP M-1.5 59″ 2 Ø13”/ L23” 210 ft2 2HP 2,300 CFM
BAP M-2 79″ 4 Ø13”/ L23” 421 ft2 2HP 2,550 CFM
BAP M-2.5 98″ 4 Ø13”/ L27” 492 ft2 3HP 3,300 CFM
BAP M-3 118″ 4 Ø13”/ L39” 702 ft2 3HP 3,900 CFM
