Castle CSI 1.5D Pocket Cutter and Screw Inserter

by Castle
$58,999.00
SKU WSI-CASTLECSI1-5D

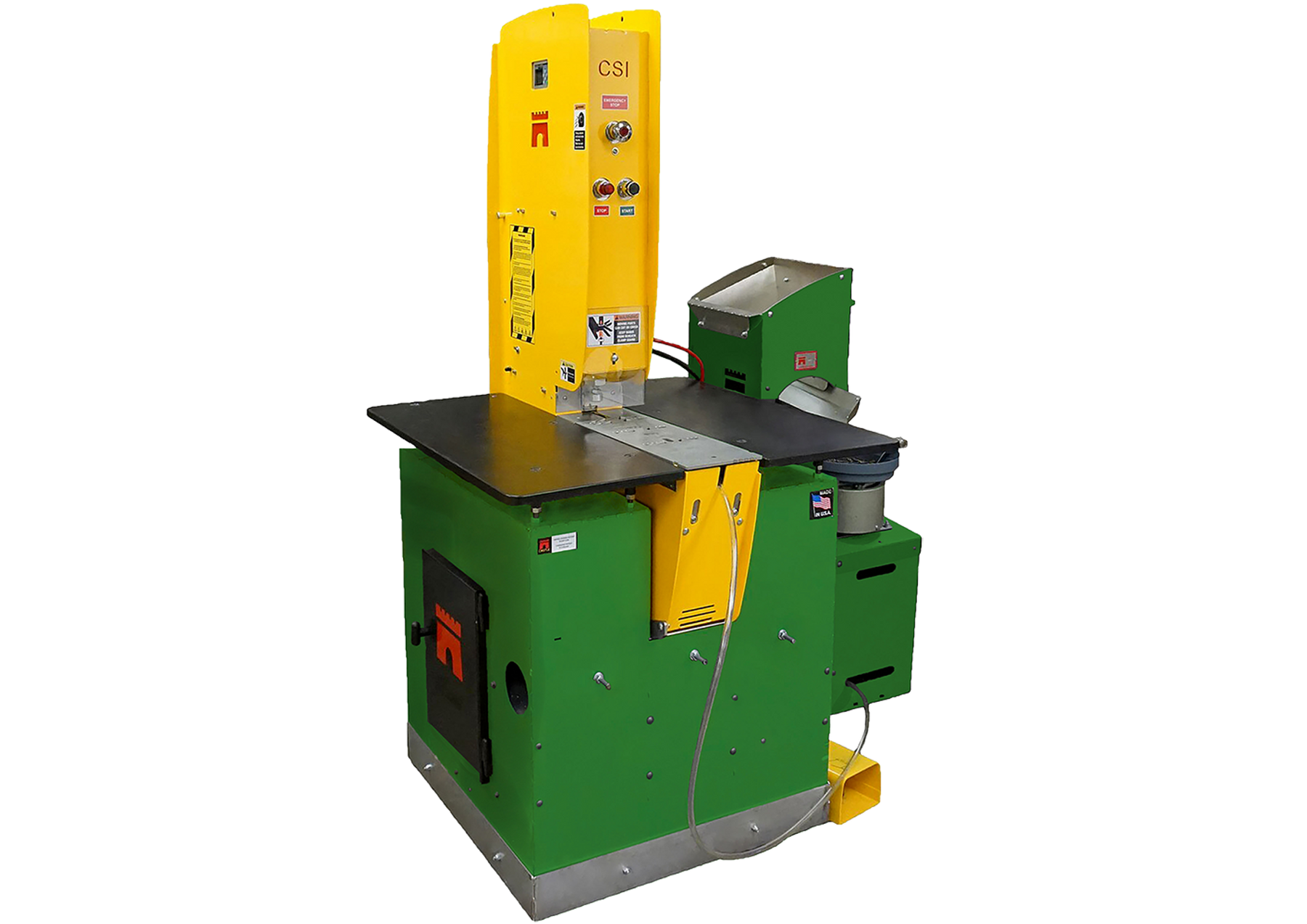

With the patented Screw-In-Pocket (SIP) technology, CSI-1.5D cuts Castle’s distinctive, low-angle screw pocket, drills a low-angle pilot hole and inserts a flush screw - all in 1.5 seconds.

Castle’s CSI-1.5D Pocket Cutter/Screw Inserter Pocket cuts pockets and inserts screws in one step: pockets with screws, delivered! Our patented technology reduces assembly time by 50%. The CSI-1.5D produces stackable parts in faster production times, reduces waste, and eliminates non-value-added labor in high-capacity production joinery.

Use the CSI-1.5D with composites, panel and hard or soft wood.

ADVANTAGES

-    1.5 second, single operation pocket cutting and screw insertion

-    Inserted Screws are below flush – parts can be stacked without marring

-    Works with 1-1/4” or 1-1/2” pocket screws Shop Castle screws

-    “Pocket Detect” sensing prevents loaded-pocket cutting errors

-    Easy access to carriages for quick tooling changes (Part C55850 - CSI Universal Screw Tube Plate)

-    Adjustable router feed rate optimizes quality and cycle time for various materials

-    Includes premium, solid carbide router bit, drill bit, and dust collection port



Also Available:

-    Optional air table specifically designed for the CSI 1.5D, for panel/large part processing; runs on 230V or 460V 3 phase, and extends the work surface on either side to 59"

-    Customizable work decks and work stops for efficient and accurate material alignment

TECHNICAL SPECIFICATIONS

Electrical: 230V or 460V

Air: 85 psi with minimum 3/8” ID supply line

Dust collection: 4” duct port

REQ CFM: 350 CFM with 4” dust collection

Footprint: 35” x 33” (35” x 63” including Screw Feeder)

Working Height: 36”

Machine Height: 72”

Worktop Area: 33” x 35”

Shipping Weight: 1085 lbs.

Manufactured: USA



KEY COMPONENTS*

Siemens LOGO! PLC controls

LCD status display with cycle counter

Variable frequency drive

Teknomotor .44HP 220/380V 18000 RPM drill spindle

Teknomotor 2.7 HP 230V or 460V 18000 RPM router spindle

Castle screw delivery system w/vibratory feeder bowl level sensor

Heavy duty, Parker Viking Xtreme Series valves w/manual override

*Actual brands and models are dependent on 3rd party suppliers.
