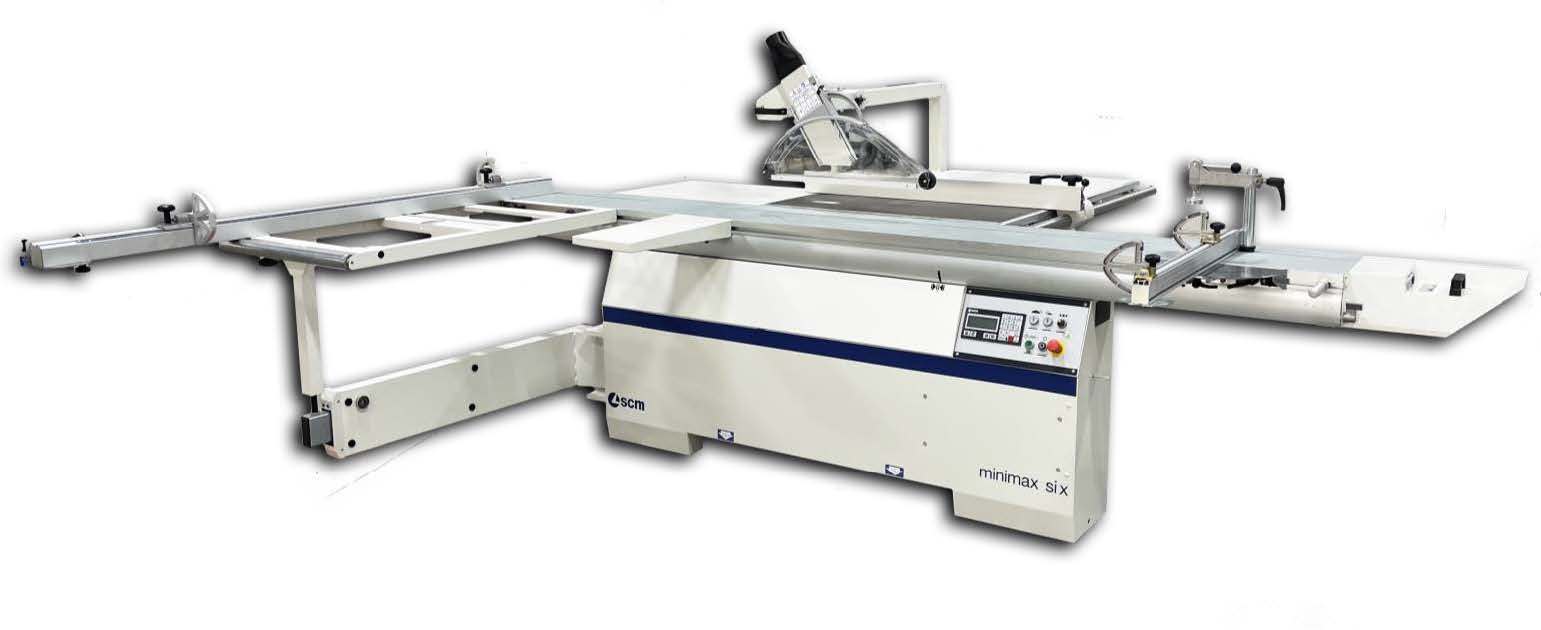

The SCM Minimax SI X sliding table saw is a high-performance solution designed for precision, efficiency, and ease of use in professional woodworking environments. Equipped with the SCM Thundercut app, this machine seamlessly integrates optimization and sequencing capabilities, allowing users to manage material inventory, import cutting lists, and optimize cuts directly from a compatible tablet. Its robust cast iron saw unit, independent scoring motor, and anodized aluminum alloy carriage ensure exceptional accuracy and durability. Featuring an advanced "READY" electronic control system, an adjustable rip fence, and a spacious squaring frame, the Minimax SI X offers superior flexibility and reliability for a wide range of cutting applications.
**Freight Included**
STANDARD EQUIPMENT
- Optimizer/Sequencer App for Tablet: SCM Thundercut. Application to be downloaded from the App Store or Play Store on compatible tablets (mobile devices) equipped with iPadOS or Android operating systems. It can be activated using the QR code supplied with the machine. The App allows to:
- Manage your machine stock and the material and panel magazine
- Create and modify projects, import projects from the main furniture design software ("cpout" file format), import cutting lists
- Optimize cutting lists, choosing from one or more proposals of the optimization software integrated into the App
- Set the machine correctly for each cut to be made, thanks to the simple and intuitive graphics of the 3D sequencer that guides the operator at each step
- Print labels with bar code to identify the various parts, thanks to the Bluetooth connection with compatible label printers
- Cast iron saw unit, with lifting system by means of cylindrical bars and tilting on high rigidity sliding side trunnions, complete with scoring unit with independent motor and external setting up
- Anodized aluminum alloy carriage (dimensions 360 x 3200 mm) sliding on hardened steel guides, which are fixed on the carriage by means of mechanical bending system
- Squaring frame (dimensions 1200 x 650 mm) complete with:
- Telescopic fence with 2 crosscut flip-over stops and rule tilted towards the operator
- Eccentric clamp
- Swinging arm support
- Idle roller to facilitate the panel loading/unloading
- Dedicated rip fence with:
- "High rigidity" cast iron fence support
- Micrometric adjustment and cam-locking system
- Rectified steel round sliding bar, 45 mm diameter
- (available as option: electronic control)
- "READY" electronic control
- Control of blades unit lifting/tilting
- Tools data setting with automatic height adjustment with respect to the tilting
- Mode: manual, semiautomatic and automatic with memory capacity up to 99 programs
- Additional functions: calculator and hour counter
TOOLING INCLUDED
- Qty. 1 Main blade (350 mm)
- Qty. 1 scoring blade
- Trimming shoe, push stick and push handle
- Toolbox: Wrenches, allen wrenches, user manual, spare parts catalog
