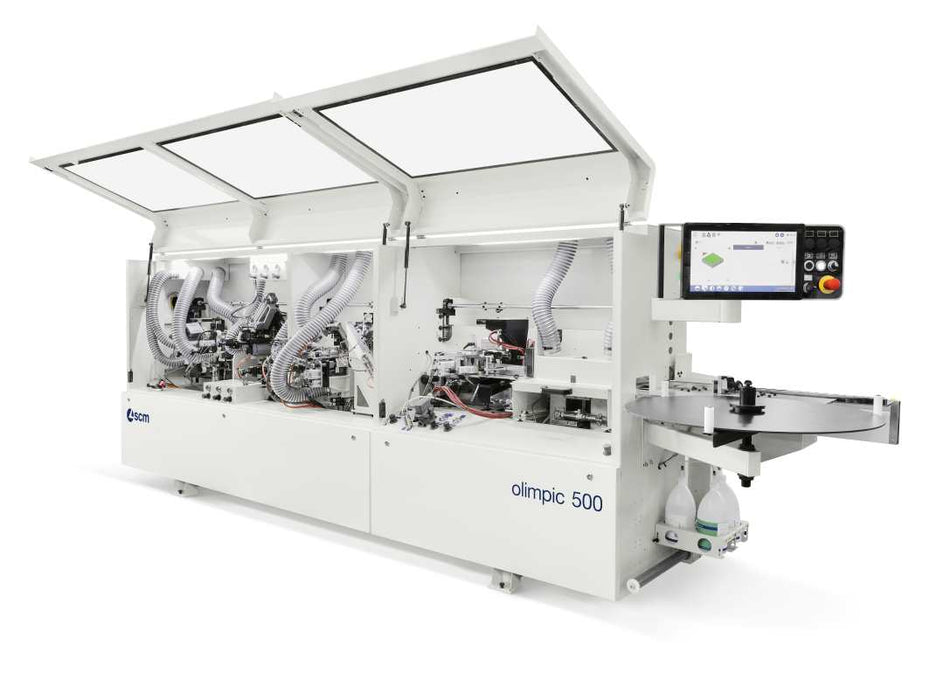

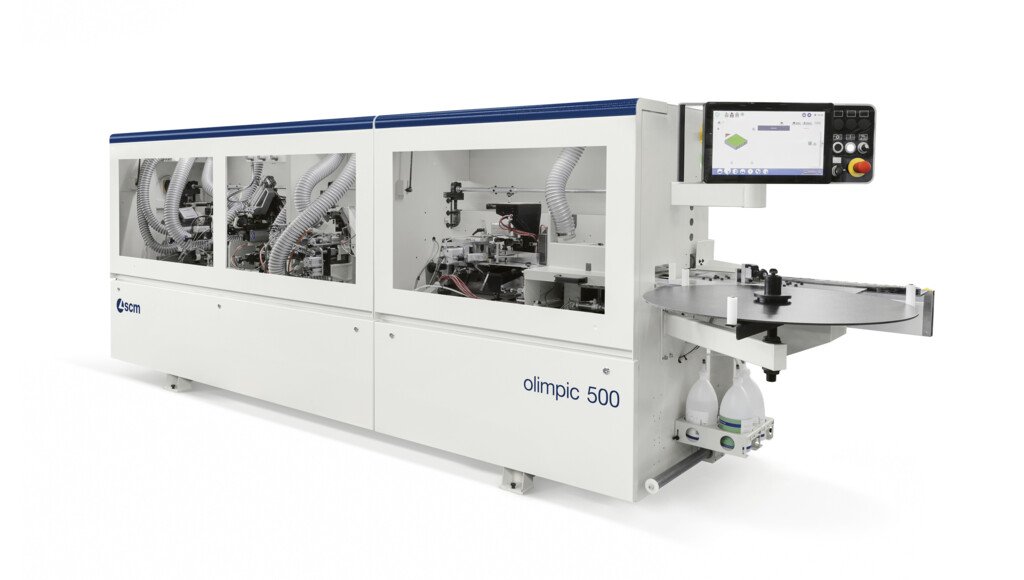

SCM Olimpic 500 HP Edgebander In Stock

by SCM

Serial Number - AH00005697

500 HP

-New Series of Machines
-40 FPM Feed Track
-Heavier Frame
-60mm Panel Thickness Including Corner Rounding Unit
-6mm Capacity


Anti Adhesive, Premill, End Trim, T/B Trim (4 axis servo), Corner Rounding (2 axis servo), Profile Scrape (4 axis servo), Glue Scrape, Buff

Automatic single sided edgebander designed to for those looking for more servo driven set up used for edgebanding straight vertical profiles with coiled material (veneer and PVC) and with strips (high-pressure laminate and solid wood) with a maximum thickness of 6mm.

Air cushion table placed at the machine entry & 300 mm extended infeed fence

  • 300mm Extended Infeed Fence
  • Table Dimensions: 1,600mm (63”) x 600mm (24”)
  • Not Available with Infeed Device for Narrow Pieces
  • Machine Status Light and Go/No-Go Light

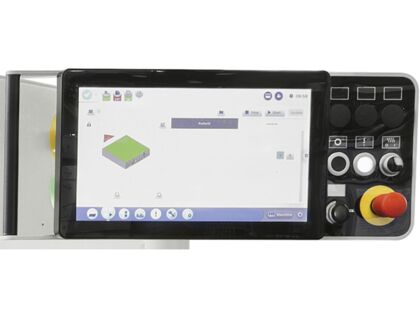

EYE S Controller with 15" Touch Screen

  • EYE-S Controller with Maestro Active Edge
  • 15” High Resolution Touch Screen
  • Unlimited Number of Working Programs
  • Provides Diagnostic, Maintenance and Production Information
  • LED Light Bar to Indicate Machine Status
  • Available in mm’s or inches
  • Available in 5 languages

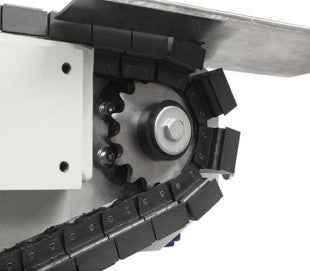

Feed Chain with New Style Replaceable Track Pads

  • Staggered Rollers, Larger Diameter, on Top
  • Pressure Beam w/Steel Ball Bearings
  • Mechanical Digital Readout for Panel Thickness
  • Travels on a Round and Flat Guide



Smart Glue Pot (SGP) Allows for use of EVA or PUR glue.

  • SGP-E Glue Pot
  • Standard on the HP ERT
  • 1.5 Kg Capacity
  • Manual Dosage with Graduated Knob
  • Manual Purge for PUR and EVA Glue

Servo Driven Top & Bottom Trimmers

  • Four Axis Servo Positioning
  • Able to Process Two Different Radii (2mm / 1mm)
  • Independently Controlled
  • Quick Change / Disconnect motors
  • Top/Bottom/Side Copy Wheels

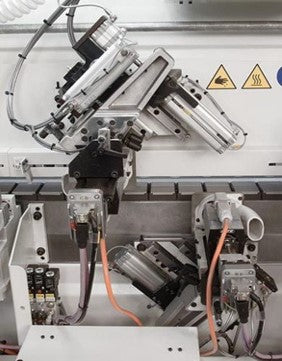

Servo Driven Corner Rounding Unit

  • Two Motor Corner Rounding Unit – Round X Style
  • Servo Positioning Through the Controller
  • Can Process both Thick/Thin PVC Through the Controller
  • Capable of Trimming the Entire Panel
  • Dust Collection Mounted to Motors



Servo Driven Profile Scrape Station

  • Four Axis Servo Positioning
  • Able to Process Two Different Radii (2mm / 1mm)
  • Independently Controlled
  • Top / Bottom / Side Copy Wheels
  • Mechanical Digital Readouts
  • Collection Bin

Duty Cycle:
5-6 Hours of Production Per Day
Capacities / Feed Speeds / Panel Thickness:
6mm / 40fpm / 60mm

Edge thickness mm 0,4 - 6
Panel thickness mm 8 - 60
Feed speed m/min 12
Compressed air bar 6
