Coima SHK Series Enclosureless Dust Collector

by Coima

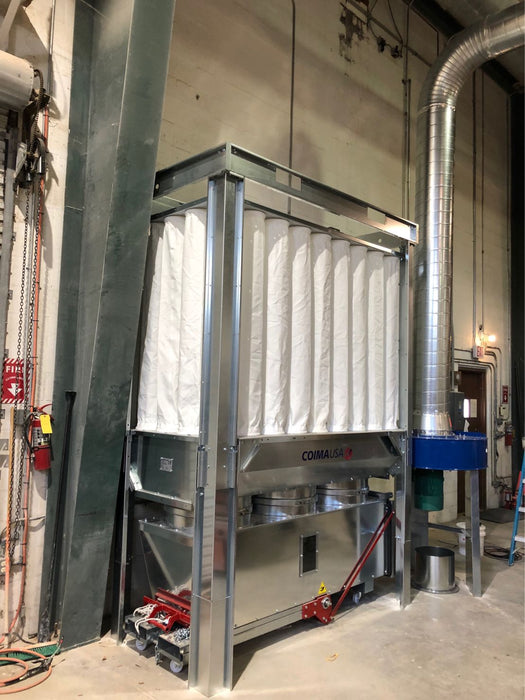

The SHK series enclosureless dust collector is designed for the collection of sawdust and is ideal for indoor use in smaller wood shops, or for more localized extraction dedicated to specific woodworking machinery. The integral mechanical shaker cleaning system increases production time by reducing labor required to maintain filter efficiency. The bags can be mechanically shaken after the fan is switched off (per NFPA guidelines).

The filter housing supports anti-static polyester filter sleeves fixed by double snap rings into a tube sheet, which is mounted atop the material collection hopper that empties the collected material into plastic bags. The collector frame is made of galvanized sheet steel. The material handling fan is rated for S1 duty cycle (continuous running), and features a premium high-efficiency IP55 motor.

Coima SHK Series Chart 1

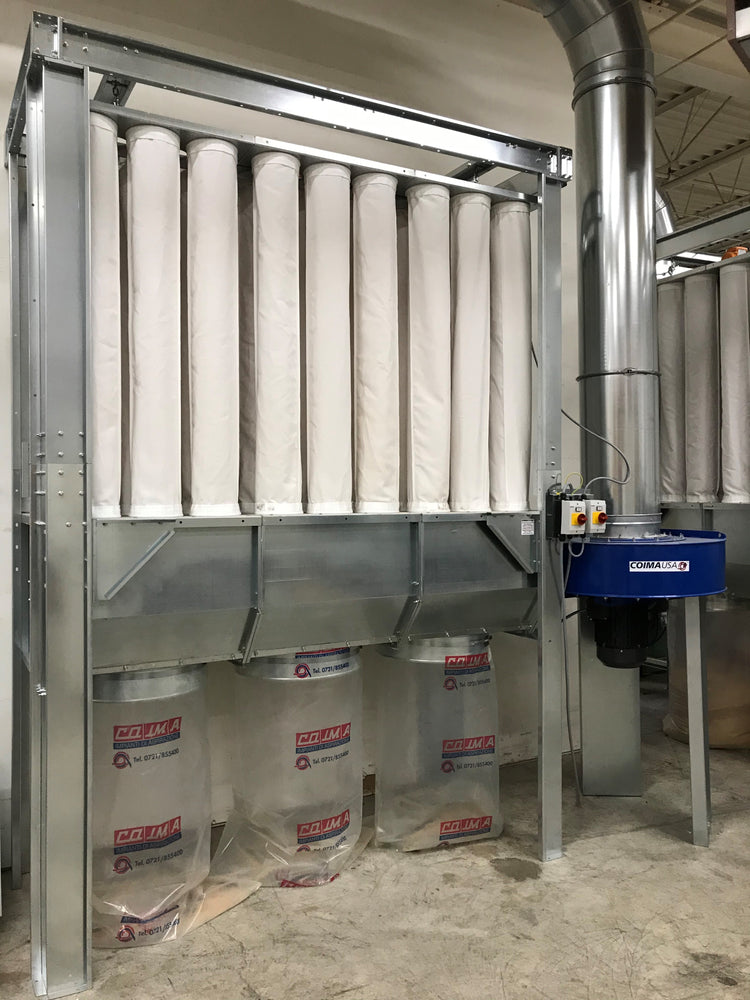

The SHK Series collectors are available with several waste discharge options:

  • Hopper and waste bags

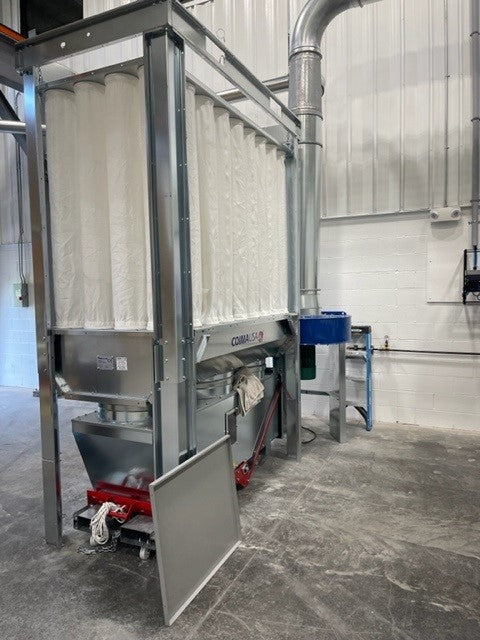

  • Haul-away forklift dump bin (wide leg adapter kit available for long-side bin removal)
  • Waste barrels with viewing windows
  • Collection hopper with rotary screw extractor and rotary air lock (leg extensions available for additional clearance below discharge)
  • Closed-loop material transfer system including rotary screw extractor, rotary air lock, material transfer fan and material transfer ductwork

Additional safety equipment is available for spark detection and extinguishing, deflagration relief and containment, and abort for return air applications. Enclosure panels are available for locating SHK Series units outdoors. All SHK Series units are capable of retrofit for locating outdoors.

Coima SHK Series Dust Collectors Technical Data (Click on Model for Dimensional Drawings)

SHK-1 8″ 3200 1 5 HP 119 ft2 12
SHK-2 8″ 3600 2 7.5 HP 238 ft2 24
SHK-3 7″ 5000 3 10 HP 357 ft2 36
SHK-3 PLUS 13.5″ 5000 3 15 HP 357 ft2 36
SHK-4 HS 13.5″ 5000 4 15 HP 476 ft2 48
SHK-4 11″ 6400 4 15 HP 476 ft2 48

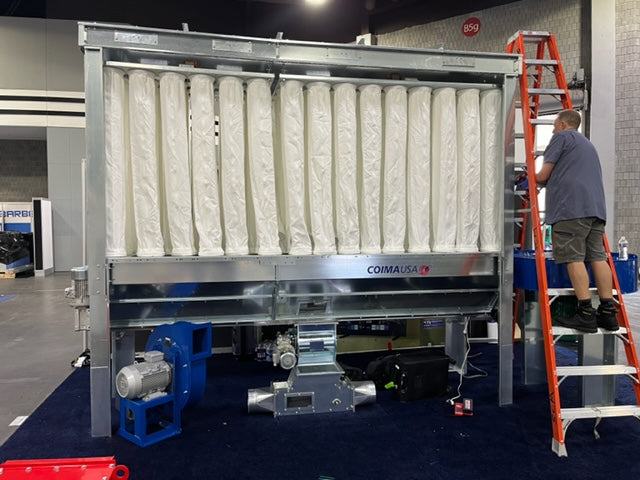

SHK-5 11″ 7100 5 20 HP 595 ft2 60

Coima SHK Series Chart - SHK 3 Dust Collector Dimensions Sizing
