Castle TSM, 31 Pocket Cutter Machine

by Castle
$8,699.00
SKU WSI-CastleTSM31

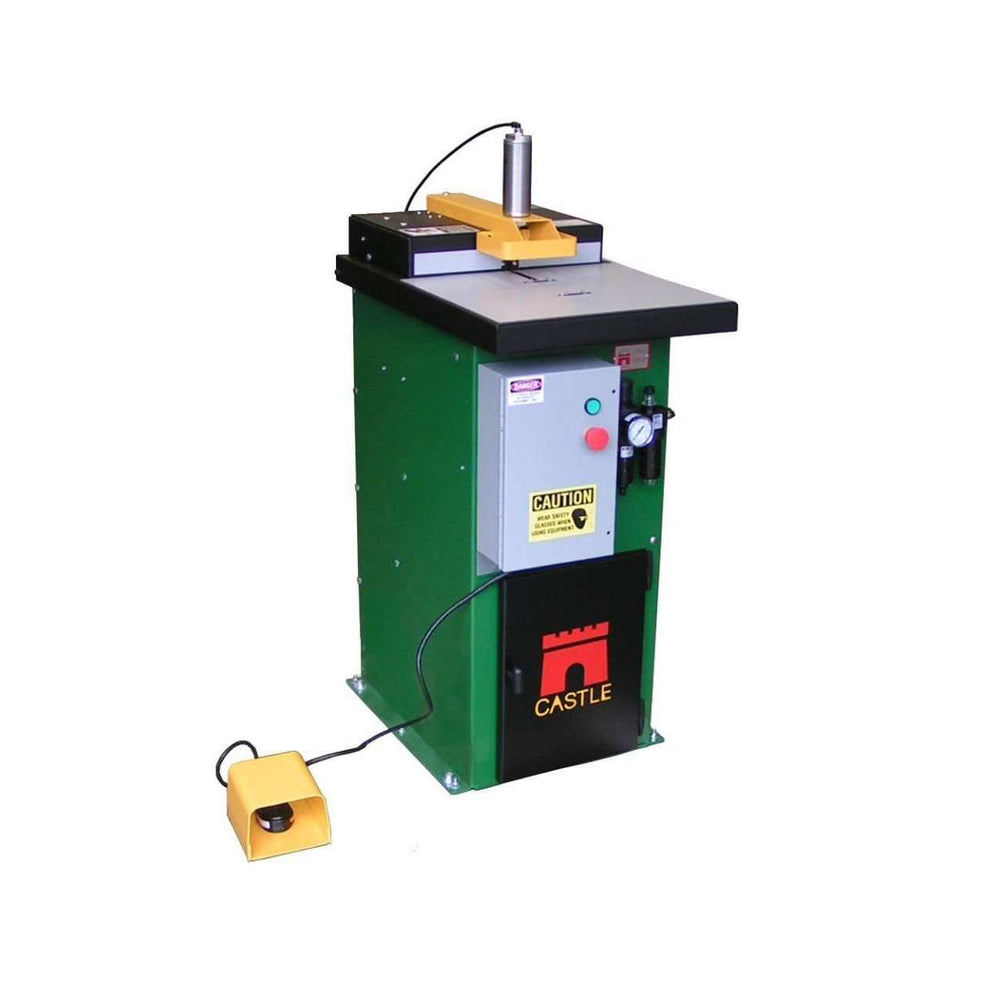

The TSM-31 pocket cutter machine cuts the same patented six degree Castle Pocket as the TSM-22. This machine is designed for continuous production in furniture plants, mobile home factories, multi-shift cabinet production and so much more. A heavy duty, single-phase induction motor drives the pocket cutting spindle. A specially-designed, high-torque, heavy-duty air motor drives the pilot bit.

The TSM-31 features heavy duty construction throughout with easy, top-down access for quick router and drill bit changes. Adjustable Indexing Stops are built into the top for quick part transitions during high production shifts. This premier woodworking shop tool can produce more than a quarter million pockets per month for years on end with minimal maintenance.

When you are in need of premier woodworking tools and supplies, turn to Castle, Inc. We pride ourselves on providing our customers with the absolute best and highest quality carpentry supplies.

  • Router: 1.5hp Baldor Router Motor

  • Router bit: Premium 3/8″ Solid Carbide, Rough Mill

  • Drill: Sioux SDG10S25FCT Air Motor

  • Drill bit: 9/64” Brad and Spur Premium TiN-Coated Bit

  • Power req: 220v, 10 amp

  • Air req: 85 psi—external regulator, filter and lubricator included

  • Basic footprint: 21″ depth x 19″ width

  • Working height: 36.5″

  • Worktop usable area: 16″ depth x 18.5” width

  • Machine height: 38”

  • Shipping weight: Approx 360 lbs

  • Shipping dimensions: 28″ x 32″ x 52″
