Accord 25 FX
CNC machining centre providing utmost performance with minimum investment.
Designed to meet the needs of small and medium-sized companies, it combines state of the art technology with extreme ease of use for flexible productions of doors, windows, stairs, solid wood parts and for machining wooden and extra-wooden panels: plastic, composites, resins and light alloys.
HEAVY DUTY PROFILING
The PRISMA machining heads with 5 interpolating axes are designed for the processing of solid wood.
The ideal solution for windows, doors and stairs.
RAPID AND PRECISE SET-UP

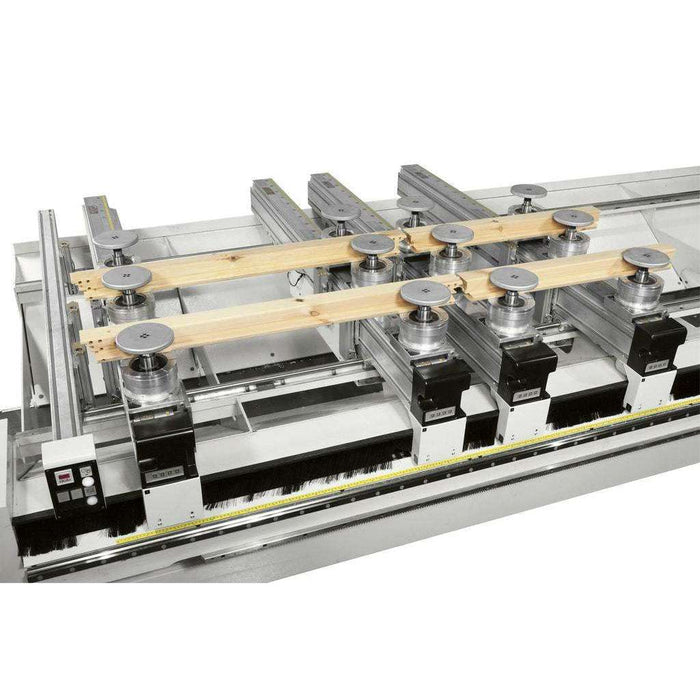

The MATIC bars worktable with direct transmission system and independent drive units, assures the complete set-up in seconds.
Simple and quick replacement of clamps and suction cups through the exclusive rapid locking device.
PERFECT FINISH QUALITY
The architecture with fixed table and mobile gantry structure, consisting of a sturdy construction equipped with front and rear sliding guides, ensures maximum accuracy and finish quality over the entire work area.
Simple and intuitive programming, thanks to the MAESTRO software that includes modules for different applications.
|accord 25 fx|
|X-Y-Z axes dimensions||mm||3680x1380x250
|X-Y-Z axes max. speed||m/min||60-60-30|
|5 axes electrospindle motor power (max.)||kW||12|
|3/4 axes electrospindle motor power (max.)||kW||15|
|5 axes electrospindle rotation speed (max.)||rpm||24000|
|3/4 axes electrospindle rotation speed (max.)||rpm||24000|
|Vertical and horizontal spindles (max.)||n.||30|
