Balestrini Pico MD

by SCM
$75,000.00
SKU WSI-SCMPICOMD

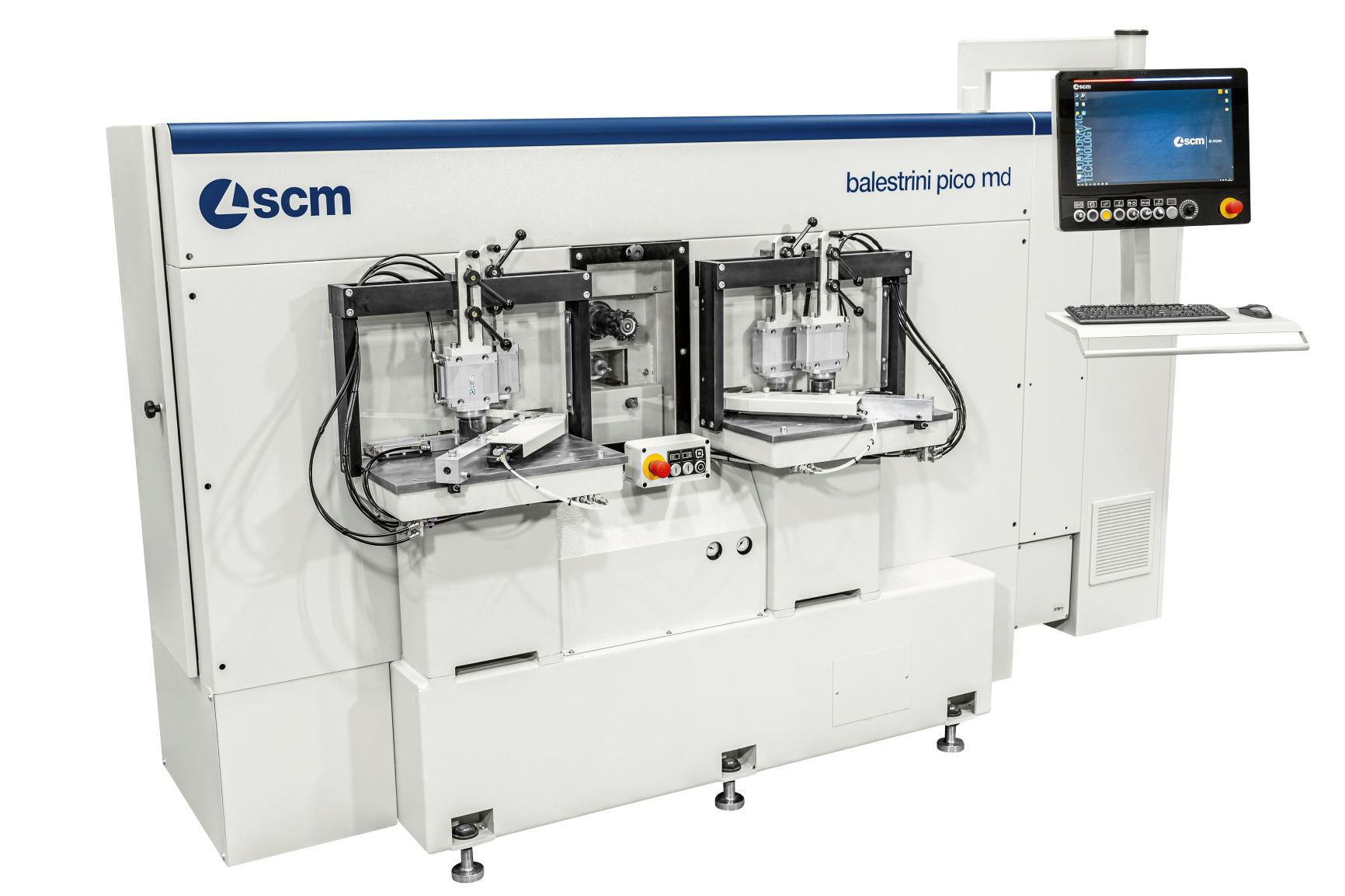

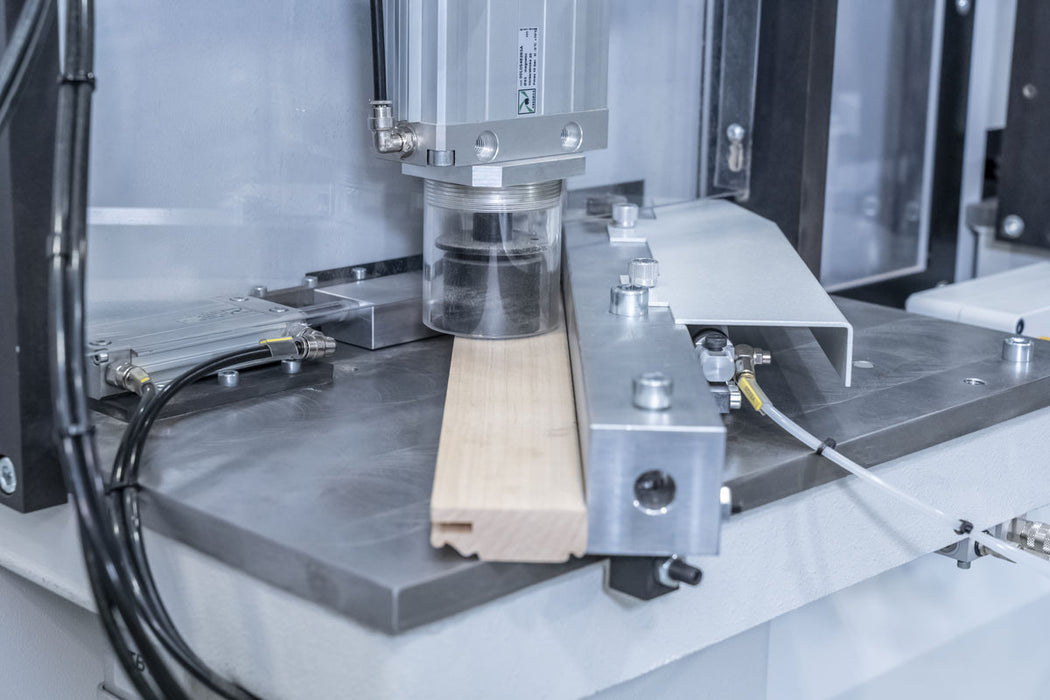

CNC Tenoning-mortising machine with double worktable

Dedicated to the execution of “Miter Door” joints for the production of frames and cabinet doors in solid wood or melamine-coated MDF, with assembly with no need of dowels.

The few set-up phases and the new Human-Machine Interface Maestro active joint allow to produce several batches with high productivity.



Advantages



POWER AND ERGONOMICS

The 4.5 kW tenoning unit and the 2 kW mortising unit make it possible to produce tenons and mortises with a reduced number of passes. The tenoning and mortising depth is adjusted in the parking area, which is also used for tool maintenance.

“INFINITY" WORK CYCLE

Up to 50 frames per hour with the Infinity work cycle that uses the interpolation of the two NC axes to execute pendulum machining without interruption, depending on the presence of the workpiece on the worktable.

Its particular path allows to avoid any chipping of the workpieces.

SAFETY AND CLEANLINESS

The full enclosure of the machine ensures protection without reducing its ease-of-use, and keeps the outside environment clean.

The side suction outlets allow to convey shavings and dust towards the extraction system.

MASTER ACTIVE JOINT

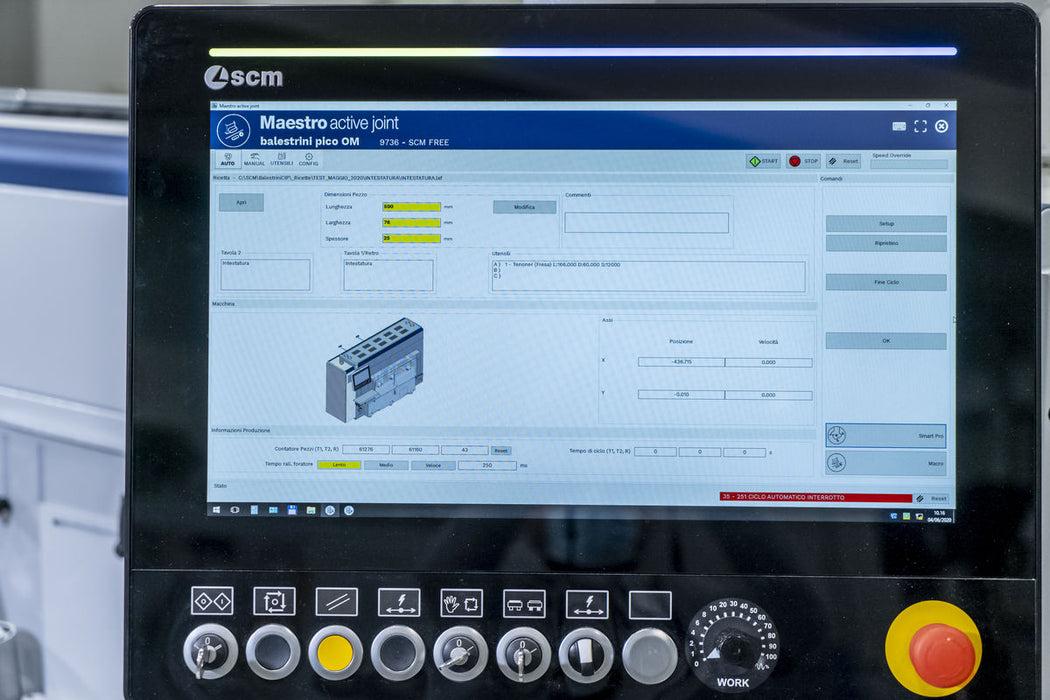

It is the new Human-Machine Interface with an extremely simple and effective design, which allows to select numerous macros for Miter Door joint, tenons, holes and mortises programming.

Technical Data

MACHINING FEATURES
Workpiece cross-section max.(widthxthickness)
Min. 38 x 18 mm
With 45° cut 102 x 26 mm
With 0° cut 145 x 26 mm
Workpiece length Min. 100 mm
Max. with front reference stop Not applicable
Max. with rear reference stop 880 mm
Tenon dimensions Length max. 140 mm
Thickness max. 25 mm
Height 8 ÷ 30 mm
Hole or mortise dimensions Hole diameter max. 16 mm (doubling by interpolation)
Mortise length max. 140 mm
Mortise thickness max. 16 mm (doubling by interpolation)
Hole or mortise depth max. 30 mm
"Miter Door" work cycle time min. 18s (50 frames for cabinet doors/hour)

Technical data

MACHINING FEATURES

Workpiece cross-section (widthxthickness)

Min. 38 x 18 mm
Max. with 45° cut 102 x 28 mm
Max. with 0° cut 150 x 28 mm
Workpiece length Min. 100 mm
Max. Not applicable
Tenon dimensions Length max. 150 mm
Thickness max. 12,7 mm (1/2")
Height 8 ÷ 26 mm
Hole or mortise dimensions Hole diameter 3 ÷ 16 mm (up to 26 mm by interpolation)
Mortise length max. 150 mm
Mortise thickness 3 ÷ 16 mm (up to 26 mm by interpolation)
Hole or mortise depth max. 12,7 mm (1/2")
"Miter Door" work cycle time min. 18s (50 frames for cabinet doors/hour)



MODEL pico md
Composition Code
COMPOSITION
Tenon/milling spindle Yes
Mortising spindle Twin table/Single sided
Notching device (French miter) No
Applications
Tenons Yes
45 degree miter doors Yes
90 degree "Shaker" doors No
Face frames No
French miter joints No
Tooling
Diamond tenon/milling tool Yes
Mortise bit (3/8" or 10 mm) 1
Diamond 45 degree notching tool N/A
Electrical
Voltage/Hz 400V 50/60 Hz
Transformer 480 volt to 400 volt (optional) $2,200.00
OPERATING SYSTEM
Control Unit Eye-M Console
Operating System Microsoft Windows 10
Monitor 21.5" LCD
Machine Language English
Machine Operator Interface Maestro Active Joint
Remote Machine Diagnostics Yes
