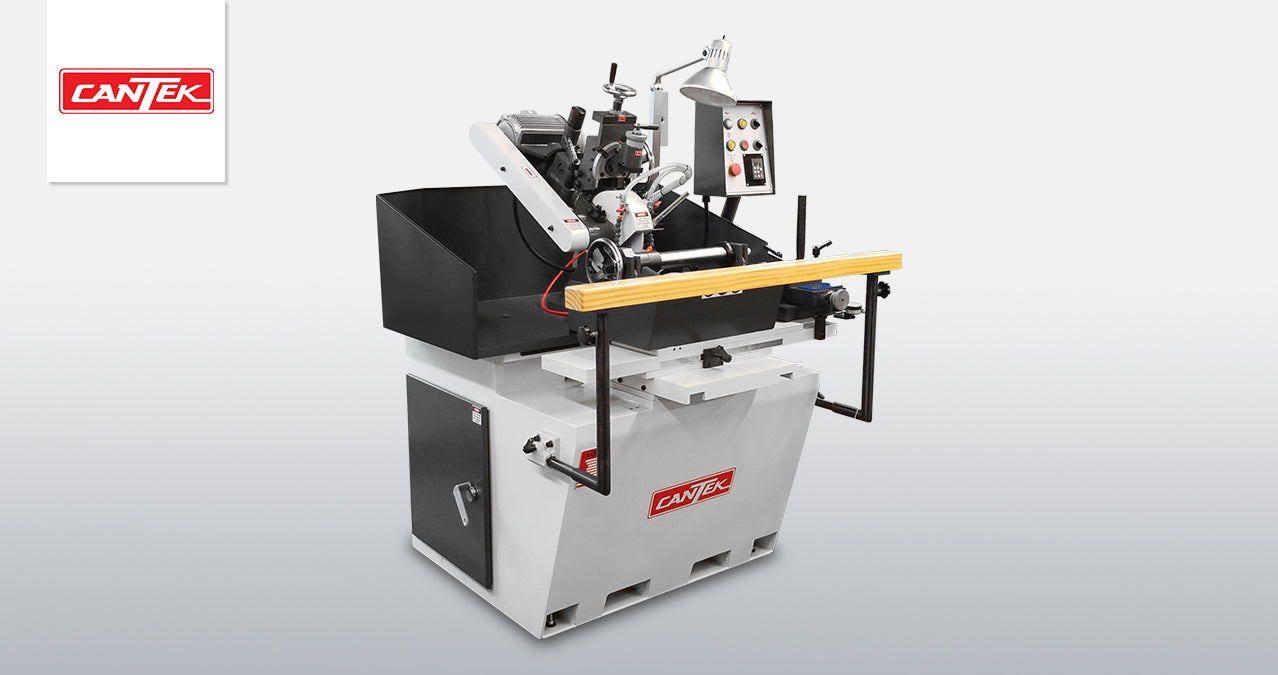

Cantek | JF330 Profile Grinder

by Cantek
SKU WSI-CantekJF330

Designed for consistency, ease of use, and excellent finished results.

The Cantek JF330 Profile Grinder was designed to ensure the operator can produce an optimum knife finish, while producing precisely accurate profiles.  The powerful 3HP grinding motor makes knife grinding a breeze.  The VFD allows the operator to dial in the optimum grinding speed no matter what type of knife steel they are grinding.  Using an axial constant setup, tools can be transferred to the moulder quickly for precise and fast changeovers.  The cutterhead is mounted to a sliding worktable which runs on high precision Schneeberger linear bearings.  All these special features make the JF330 profile grinder the ideal solution for the small to large size moulding shop.

  • Powerful 3 HP grinding motor, allowing deep aggressive grinding when required.
  • Axial constant set up, allowing the ground tools to be easily transferred to the moulder for quick changeover

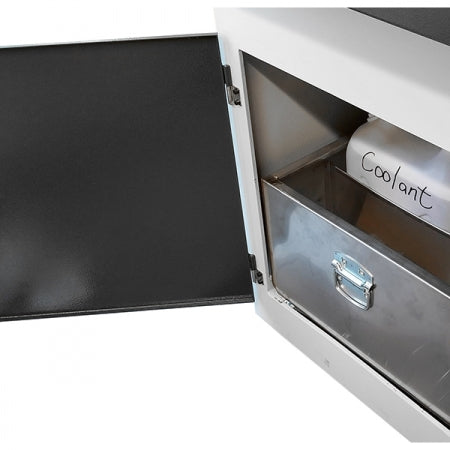

  • Stainless steel splash guards, coolant tank for long rust-free life

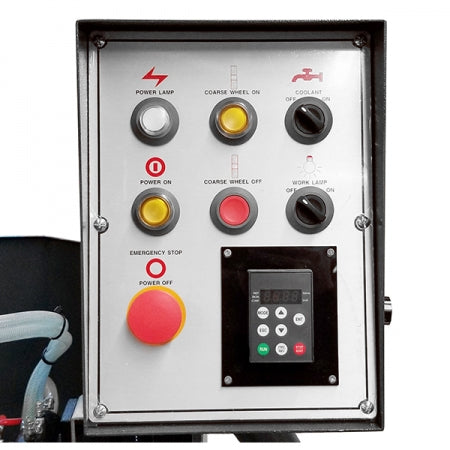

  • Easy to access adjustments and controls
  • 3 HP grinding motor
  • VFD to allow RPM to be varied for different wheels, and diameters
  • Schneeberger linear bearings for effortless and smooth worktable movement
  • Axial constant set up
  • Quick change side angle adjustments
  • Quick change grinding wheel hubs
Maximum length of straight grind
Maximum length of profile grind
Maximum diameter of swing
Max. depth of profile with 140mm hub
Max. depth of profile with 110 mm hub
Grinding motor
3 HP
Grinding wheel size
225 mm dia. x 60 mm bore
Machine dimensions
41 x 44 x 59″
Machine weight
1750 lbs
  • Motorized Side Clearance
  • Motorized Wheel Back Clearance
  • Motorized Grinding wheel in/out
