CANTEK PCS-30 Cut Off Saw 203V, 3PH. 460V available at additional cost.

by Cantek

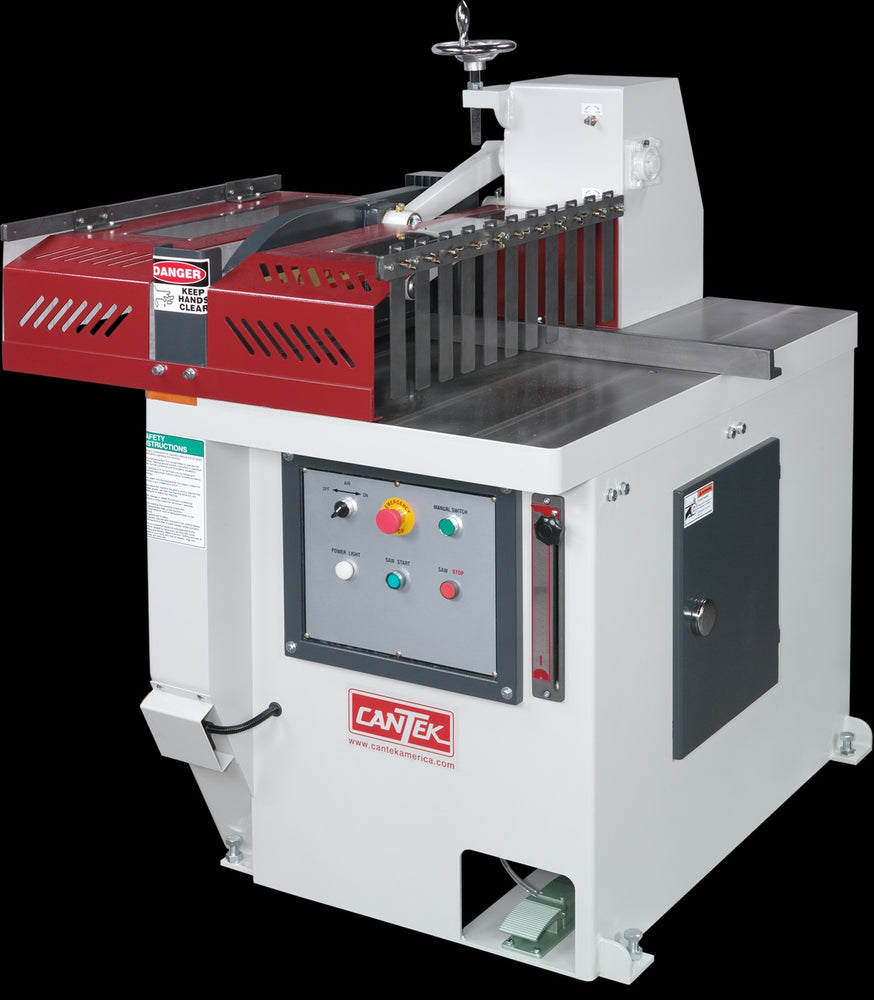

  • Picture shown left-hand model is standard. Right-hand model (optional)
  • Motion cycles are pneumatically operated, and conveniently controlled by a foot switch. (Double hands pressing is available[optional])
  • 30” sawblade included
  • Normal cutting thickness adjustment is made by means of a knob. Adjusting cutting suize according to scale
  • Fast cutting rate up to 10 ~ 15 times per minute. Cycle speeds are adjustable
  • Powerful 15HP motor drive (optional: up to 20HP)
  • Easy belt tension adjustment of replacement
  • Infeed and outfeed roller conveyors (optional)
  • The lubricator is used for lubricating the clamp mechanism, which effectively upgrades smoothness of clamping motions
  • Telemecanique Electrics
  • CSA Electric Control Box
  • CE Safety Switch

 Note: A Saw Blade is included with the machine

Cycle speed 10 ~  15 strokes/min
Cycle operation Pneumatic
Saw blade size (included) 30”
Saw arbor diameter 2”
Saw bade speed 1600 rpm
Dust exhaust diameter Ø4” x (2)
Motor 15 HP (20HP optional)
Table size 50.40” x 32.28” (1280 x 820 mm)
Net weight 1433 lbs (650 kgs)
Gross weight 1697 lbs (770 kgs)
Packing dimensions (LxWxH) 56.30” x 40.55” x 64.96” (1430 x 1030 x 1650 mm)
