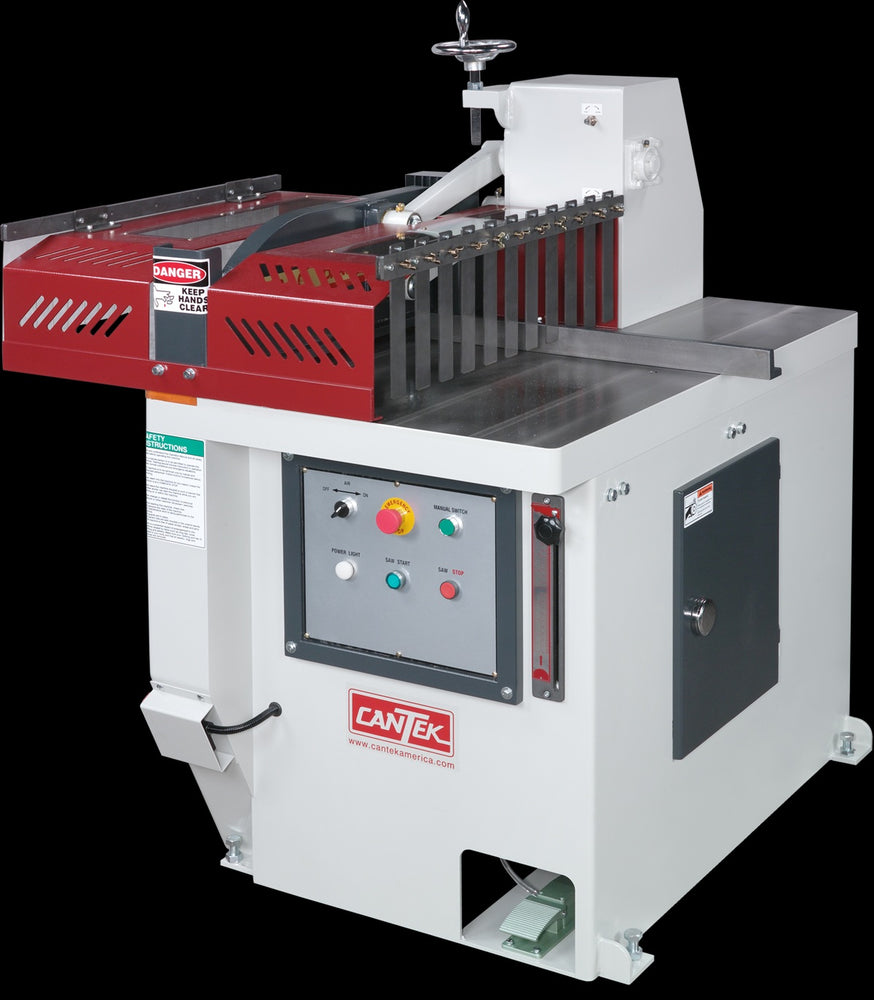

CANTEK PCS-36 Cut Off Saw 230V, 3PH. 460V available at additional cost.

by Cantek
  • The machine accommodates Ø36″ sawblade for great cutting capacity.
  • Cutting speed 10~15 cuts/min.
  • 25HP powerful sawblade motor.
  • Equipped with a delay timer for safety protection.
  • Easy to adjust or replace transmission belt.
  • Available to equip with powered roller conveyor table.
  • Rugged machine construction for maximum stability.
    • The machine is equipped with 4 dust hood outlets with Ø5” diameter, providing a dramatical increase in dust suction efficiency
  • The lubricator is used for lubricating the clamp mechanism, which effectively upgrades smoothness of clamping motions.
  • Telemecanique Electrics
  • CSA Electric Control Box
  • CE Safety Switch

Note: A Saw Blade is included with the machine

Cycle speed 10 ~  15 strokes/min
Cycle operation Pneumatic
Saw blade size (included) 36”
Saw arbor diameter 2”
Saw bade speed 1500 rpm
Dust exhaust diameter Ø5” x (4)
Motor 25 HP
Table size 57.48” x 34.64” (1460 x 880 mm)
Net weight 2469 lbs (1120 kgs)
Gross weight 2491 lbs (1130 kgs)
Packing dimensions (LxWxH) 63” x 42.52” x 76.77” (1600 x 1080 x 1950 mm)
