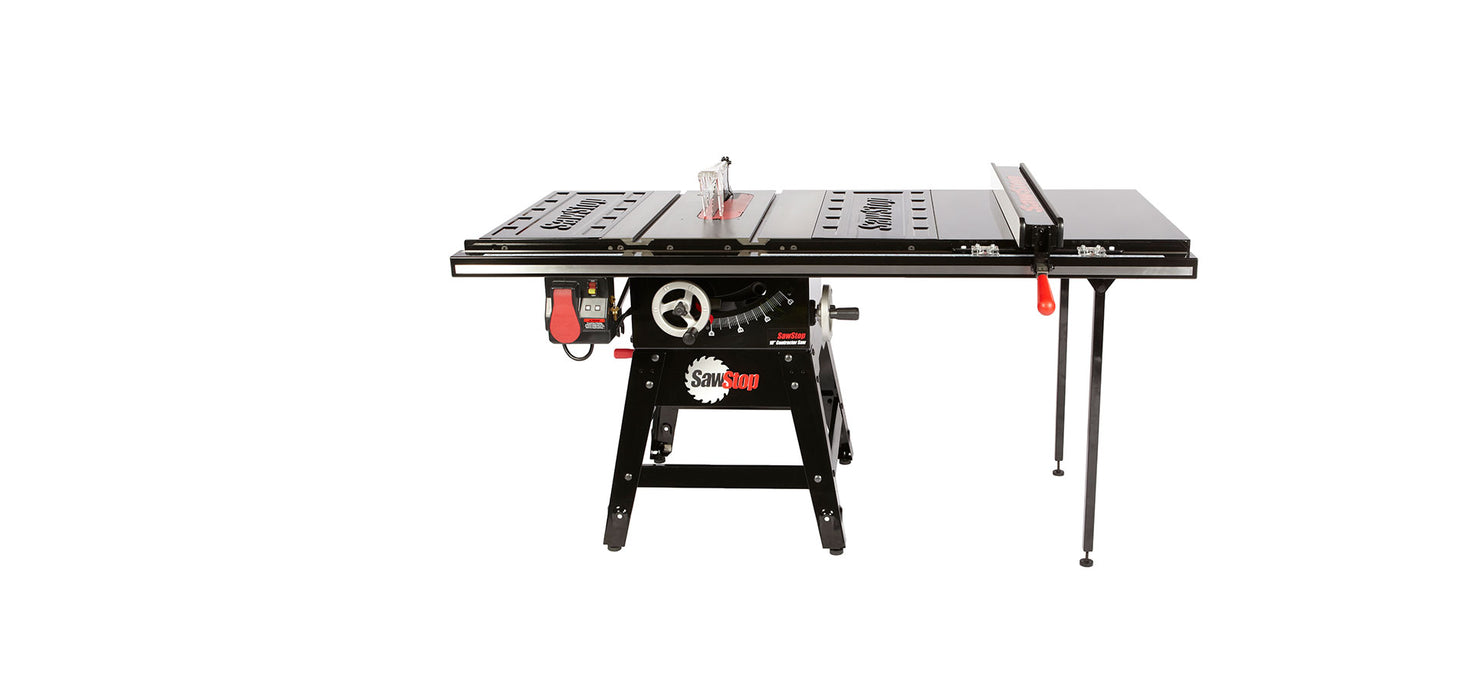

SawStop 1.75HP Contractor Saw

by SawStop
$1,699.00
SKU

This saw's 110V power and optimized footprint make it ideal for the many challenges of a home shop. With SawStop's legendary safety system, uncompromising quality and industry-leading dust collection, this 110V Contractor Table Saw is engineered to be the cornerstone of a home shop. This saw is compatible with various rails, bases and attachments, each Contractor Saw offers various combinations of portable and stationary work stations suitable for any type of job.

Option:

30" Standard
30” rip capacity & Aluminum Extrusion Fence | 58 1/2" w, 40" d, 34 3/4" h

36" T-Glide
36” rip capacity & T-Glide Fence Assembly | 69 1/8" w, 45" d, 34 3/4" h

52" T-Glide
52” rip capacity & T-Glide Fence Assembly | 85 1/4" w, 45" d, 34 3/4" h

Features

Safety System

Prevents serious accidents and injuries to provide the highest level of safety during operation

Mobility
All purpose safety and mobility suitable for both jobsites and work shops Rugged 110V motor (configurable to 220V) delivers a higher level of performance and power

Simple
Tool-free quick change mount allows for fast and easy transitions between guard and riving knifes

Accuracy
Professional fence systems deliver the straightest and most accurate cuts possible

Dust Collection
Enhanced dust collection increases dust and debris removal to provide a cleaner and safer work environment (Includes standard Micro Blade Guard, optional Dust Collection Blade Guard Sold Separately)

Quality
Unmatched quality of construction provides a durable and reliable saw that's built to last

Compatibility
Compatible with both 10 in. standard blades as well as 8 in. dado blade sets for maximum versatility

Please Note: Unit includes Standard Base, optional Mobile Cart and Mobile Base sold separately

Includes

(2) Steel Extension Wings
(1) Miter Gauge
(1) Micro Blade Guard
(1) Riving Knife
(2) Blade Wrenches
(1) Push Stick
(1) 10" Blade
(1) Standard Brake Cartridge
(1) Owner's Manual
(1) Assembly Instructions
(2) Hardware Packs
(1) 3mm Hex Key
(1) 5mm Hex Key
(1) 8mm hex Key
(1) Blade Spacing Adjustment Gauge

Please Note: Unit includes Standard Base, optional Mobile Cart and Mobile Base sold separately

Technical Data

Motor: (all 60Hz, TEFC): 1.75hp
Cabinet footprint: 25 3/4" w x 27" d
Cast iron table: 20″ w x 27″ d
Cast iron table (w/ extension wings): 44″ w x 27″ d (w/opt. cast iron wings)
Extension wings: 12″ w x 27″ d each
Extension table 36 in rails: 23 3/4″ w x 27″ d
Extension table 52 in rails: 40 1/8″ w x 27″ d
Weights - table saw only: 225 lbs
Weights - w/ 30 in fence systems: 245 lbs
Weights - w/ 36 in fence systems: 310 lbs
Weights - w/ 52 in fence systems: 335 lbs
Weights - (optional cast iron wings): 35 lbs each
Shipping weight (approx.): 240 lbs (table saw only)
Blade: 40-tooth, prof. grade, 5/8″ arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118″ (3mm)
Blade plate thickness: 0.078″ (2mm)
Max. depth of cut, blade at 0º: 3 1/8″
Max. depth of cut, blade at 45º: 2 1/4″
Max. rip, right of blade - 30 in: 30 1/2″ (w/ 30″ rails)
Max. rip, right of blade - 36 in: 36 1/2″ (w/ 36″ rails)
Max. rip, right of blade - 52 in: 52 1/2″ (w/ 52″ rails)
Max. rip, left of blade: 16 1/2″ (w/ 30" Std. Fence)
Max. rip, left of blade (options): 12 1/2" (w/ T-Glide Fence)
Dado diameter: 8″ (req. dado brake + insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8″
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10 5/8"
Table behind blade (max. elevation): 7 1/8″
Arbor Runout: 0.001″ Maximum allowable runout
Table flatness measured diagonally: 0.016″ Maximum gap
Blade alignment with miter slot: 0.010″ Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25º
Alignment between splitter and blade: 0.010″ Maximum difference
Miter slots T-shaped: 3/4″ at top, 1″ at bottom, 3/8″ deep
Miter slots center: 11 1/8″ center-to-center
Miter slots info: 5 1/2″ (arbor flange to center of right slot)
Dust collection port diameter: 4″ under table top
Riving knife / splitter thickness: 0.090" (2.3 mm)
Blade guard (micro guard): polycarbonate,
Insert: zero clearance phenolic
Hand wheels: 6″ diameter, cast alum. w/ ABS handle
Belts: V-ribbed belt – static dissipative
Overall saw dimensions: 44" w x 39 1/4" d x 34 3/4" h (body only)
Overall saw dimensions 30 in: 58 1/2" w x 40" d x 34 3/4" h
Overall saw dimensions 36 in: 69 1/8" w x 45" d x 34 3/4" h
Overall saw dimensions 52 in: 85 1/4" w x 45" d x 34 3/4" h
Motor configuration 1: CNS175: 1.75 hp, 110v, 14 A
