DMS Freedom Patriot 4X8 CNC Router
Freedom Machine Tool – Patriot CNC Machine
4’ x 8’ Flat Vacuum Table

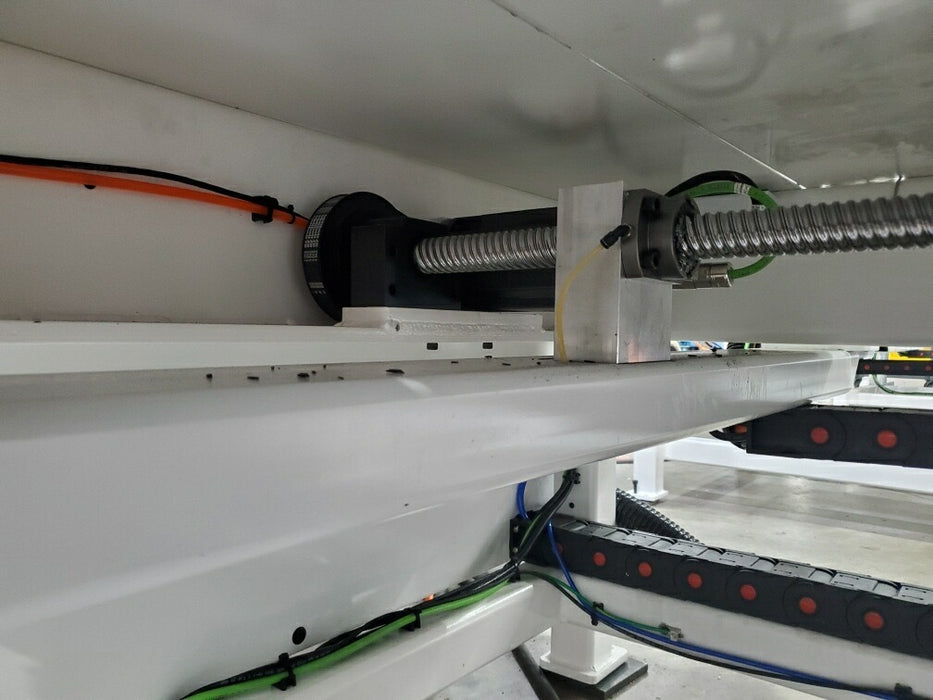

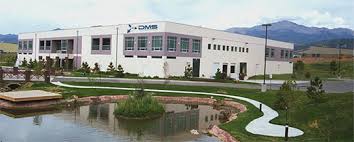

Like all FMT CNC machines, the Patriot line features an all-steel frame and is manufactured in-house at our manufacturing facility in Colorado Springs, Colorado. The welded steel frame guarantees the highest level of rigidity and durability. The rectangular shape and supporting structure are engineered to reduce resonance and improve the quality of cut.
MODEL |
Patriot 4x8 |
WORKTABLE |
|
X & Y |
4' x 8' |
Panel Passage |
9" |
Z Axis Stroke |
12" |
Number of Vacuum Zones |
4 |
Type of Work Table |
Phenolic |
Vacuum Pumps |
One (1) Becker VTLF 2.250 300cm/h Pump |
ROUTER HEAD |
|
Router Spindle HP |
12 HP Hiteco Router HSK63F |
Router Spindle Speeds |
1,500-24,000 rpm |
Router Cooling System |
Air Cooled |
Measuring Device for Tool Length |
Yes |
Dust Hood |
Pneumatic (2 Positions) |

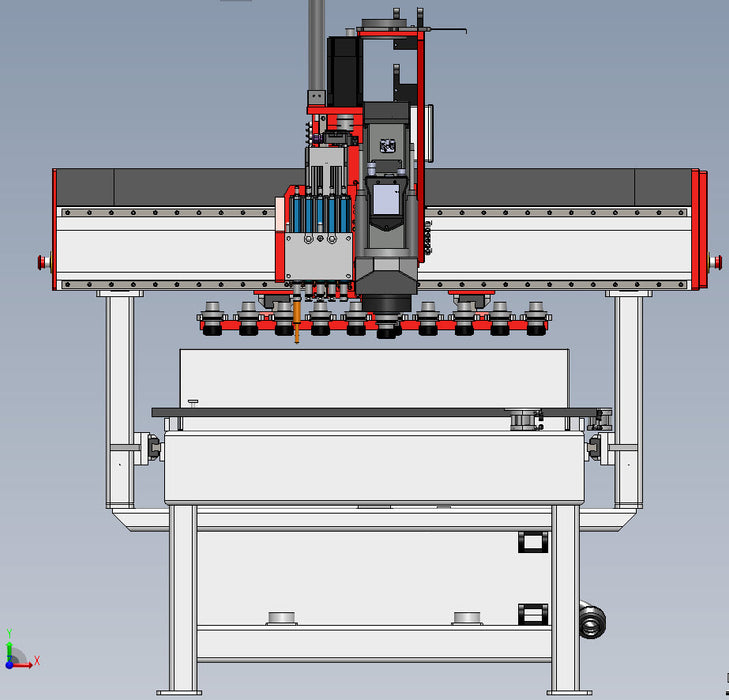

Automatic Tool Changer |
10 - Position Ride Along Rack |
DRILL UNIT/PIGGYBACK |
|
Type of Drill Unit |
Hiteco F9 |
Vertical Drills |
9 |
Drill Unit RPM |
2,000-8,000 |

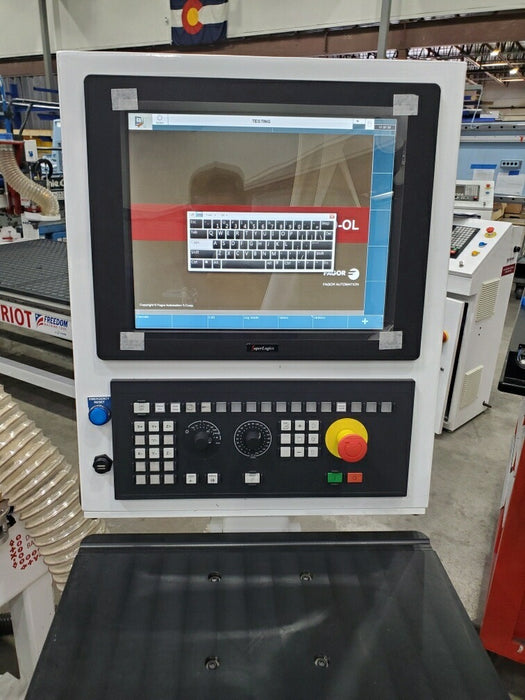

SOFTWARE/CONTROL |
|
PC Console |
FAGOR 8070 |
OS |
Windows PC |
|
