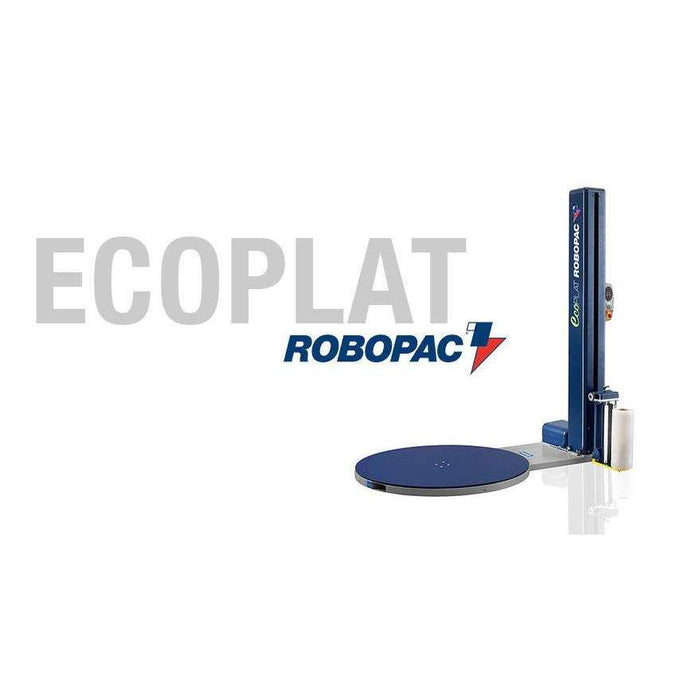

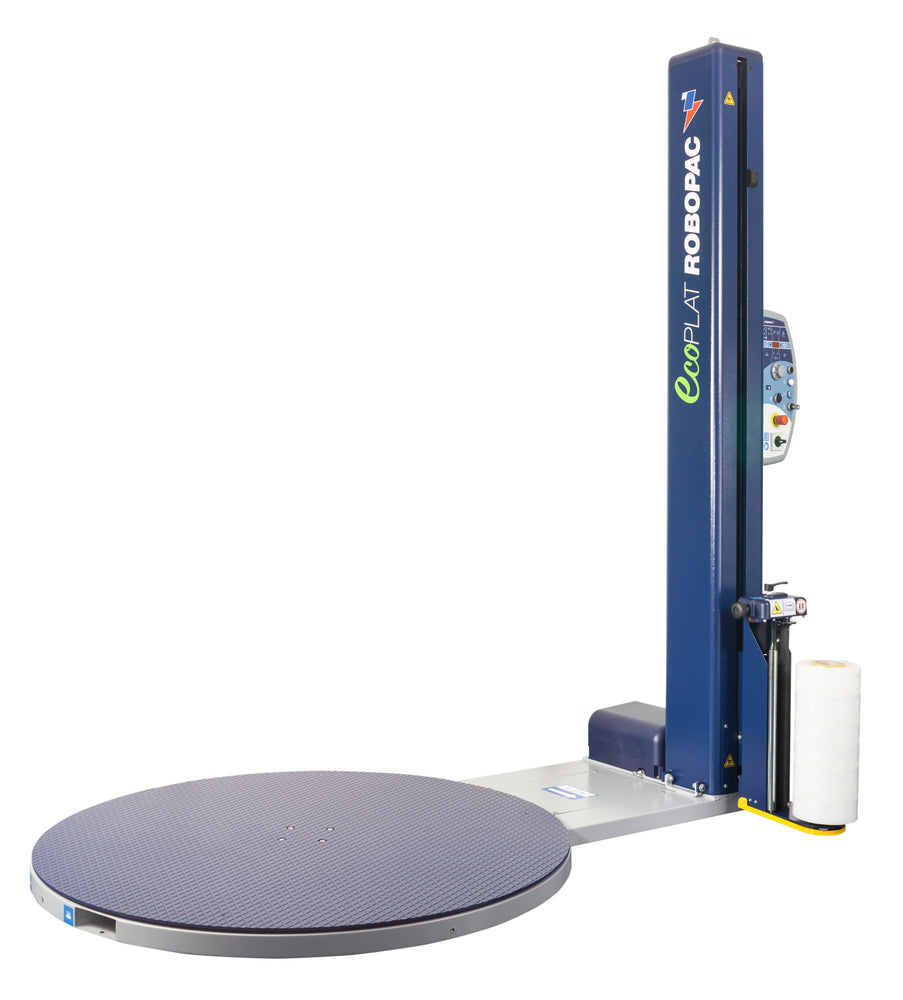

Ecoplat Semi-Automatic Turntable Stretch Wrapper

by RoboPac
$6,309.00
SKU WSI-ROBOPACECOPLATSEMI-AUTOMATIC-86MH

The EcoPlat is designed for customers wrapping 10 to 15 loads per hour. It comes with productivity improving standards like a Self-Learning Wrap Program, 86" or 110” wrap height and a heavy duty 4,400 pound capacity turntable.

Like all Robopac stretch wrappers, the EcoPlat is safe for your operators. It comes equipped with safety features like roll carriage Anti Fall Device, Roll Carriage Safety Stop and a 65” diameter diamond plated steel turntable that prevents your load from shifting during the wrapping process. A standard 40” X 48” pallet fits within the turntable reducing the risk of product damage or injury from overhanging pallets. The roll carriage on the EcoPlat is on the operator side of the machine to keep your operators safe and out of the wrapping area.

The EcoPlat turntable is supported by 28 heavy duty casters and can handle a 4,400 lb load. Weight capacity can be increased quickly and easily to 5,500 lbs.

R-Connect, available for this machine is our latest innovation was developed to provide usage and performance data via the cloud, enabling you to meet Industry 4.0 demands by putting performance monitoring & optimization at your fingertips. Utilization drastically reduces downtime by giving you informational transparency, allowing you to connect with your machines remotely to investigate alarms, adjust parameters, & respond promptly. This Industry 4.0 innovation empowers you with actionable insight to continuously improve performance, cost savings, & automation.

 Performance
Production Speed Up to 30 LPH
Load Capacity
Max Load Dimensions 52"(w) x 52" (l) x 86" Optional 110" (h)
Maximum Load Weight 4400 lbs
Machine Structure
Turntable Height 3"
Turntable Diameter 65"
Turntable Construction 3/8" diamond plate steel
Turntable Drive Motor 3/4 HP VAC
Turntable Speed 4 - 10 RPM
Film Delivery System
Standard Pre-Stretch Roller Stretch to 100%
Containment Force Variable Force Control
Film Carriage Motor 1/2 HP VAC Chain-Driven
Height Sensing Automatic via Photocell
Operator Interface
Control Panel Graphic LED Interface
Wrapping Menus 3 Fixed, 1 Programmable Menu
Utility Requirements
Electrical 115V, 20 amps, 60Hz, 1PH
Safety Features
Anti-Fall Device on Carriage YES
Pressure Activated Safety Stop on Carriage

YES

Advantages
Better Load Containment
Easy to Load Turntable
Easy to Operate
Ideal for Distribution Centers
Safe and Simple Operation
Low Total Cost of Ownership

R-Connect® Ready
Able to install R-Connect® remote monitoring software immediately.

Standard 86" Wrap Height
Optional 110" to ensures you can wrap even your tallest loads.

Warranty
Written guarantee to repair or replace the machine if necessary.

Available Options
R-Connect – Remote Machine Monitoring and Film Consumption Tracking
R-Connect: add 2 years – Extra years of Monitoring and Diagnostic Services
Extra Weight Capacity - 5,500lbs.
Scale Package - Built-in 5,000 lbs. capacity
Ramp for 65" Turntable (3" H)
24" (L) Ramp Extension for 65" Turntable (3" H)
Ramp for 65” Turntable for Scale Package (4” H)
24" (L) Ramp Extension for 65" Turntable for Scale Package (4" H)
Photocell for Dark Color Loads - Deters clear, shiny or dark colored loads
Pit Mount Package for 65" Turntable Machine - Floor Level
Turntable Guards - Protect the loading side of the machine from damage by forklifts during the loading/unloading of pallets (requires 6 anchor bolts)
