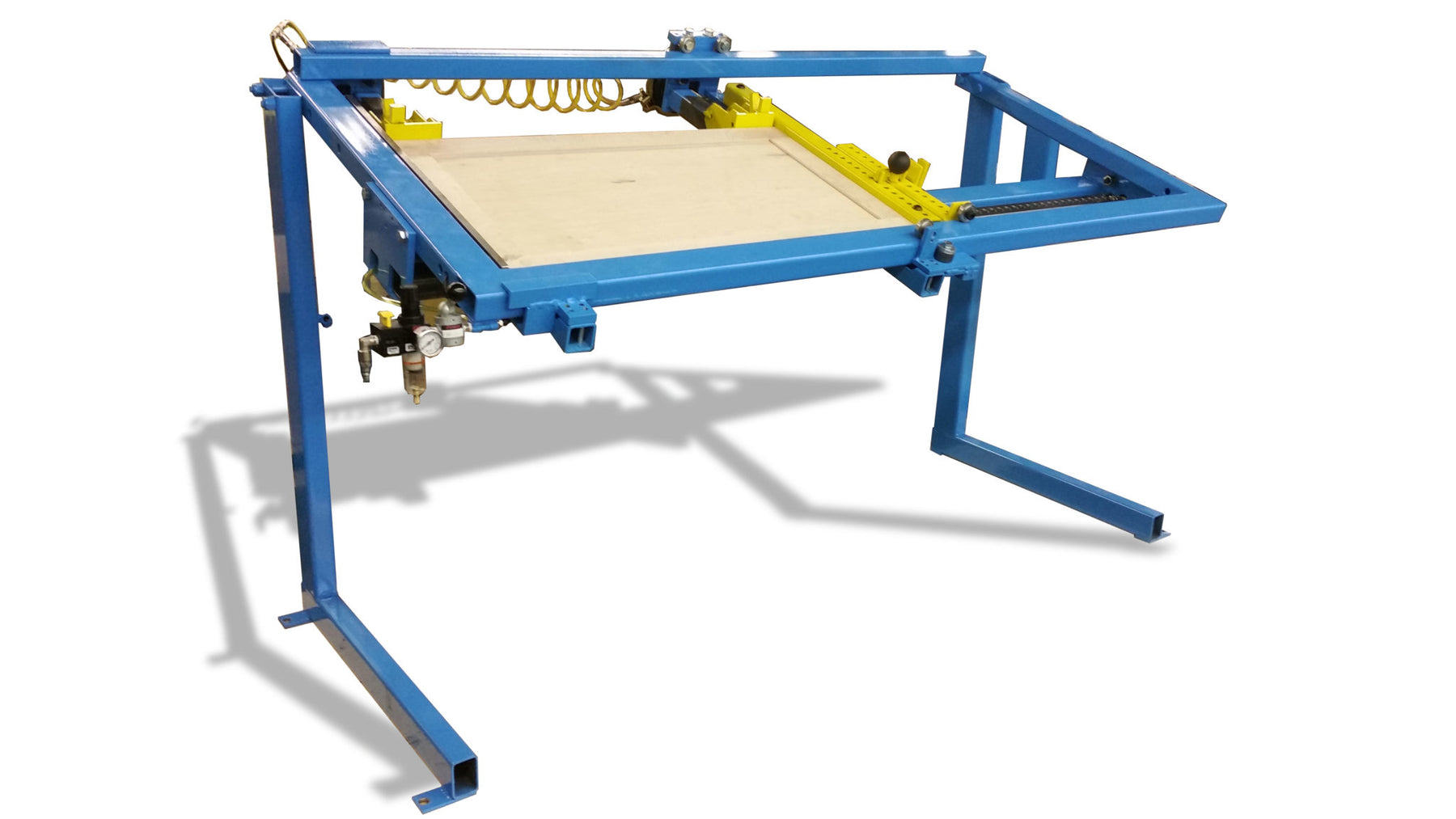

JLT #717A-DC – Cabinet Door Clamp

by JLT

Our Most Popular Door Clamp Design – Higher Quality Doors at a Faster Production Pace

Clamp and Square 100+ Stile & Rail Doors Per Day


Single #717A Stile & Rail Door Clamp - 26" x 62" Capacity


Single Narrow Stile Door Clamp - 25" x 61" Capacity
Features MDF Door Clamping Kit. Includes non-marring UHMW
for all clamping surfaces.


  • 26″ x 62″ Maximum capacity.
  • Minimum 9″ Clamping Capacity
  • (2) Second Squaring of Stile and Rail Cabinet Doors.
  • Precise and Accurate Squaring Guaranteed
  • MDF and HDF Door Models Available!!
  • Includes (2) Vertical Clamps & (1) Horizontal Clamp.
  • Easy to use, Single Lever Operation.
  • Fast Changeovers
  • 15 Degree Working Angle

Enhanced Features from the Tried & True #79K Design:

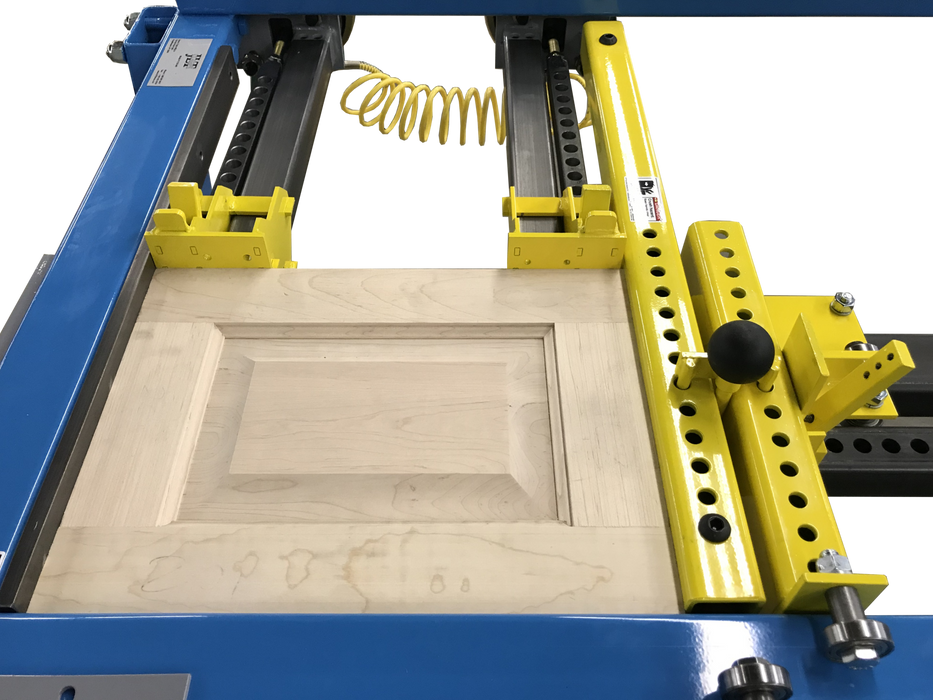

  • Clamping force centered on your stiles and rails — where you need it most.

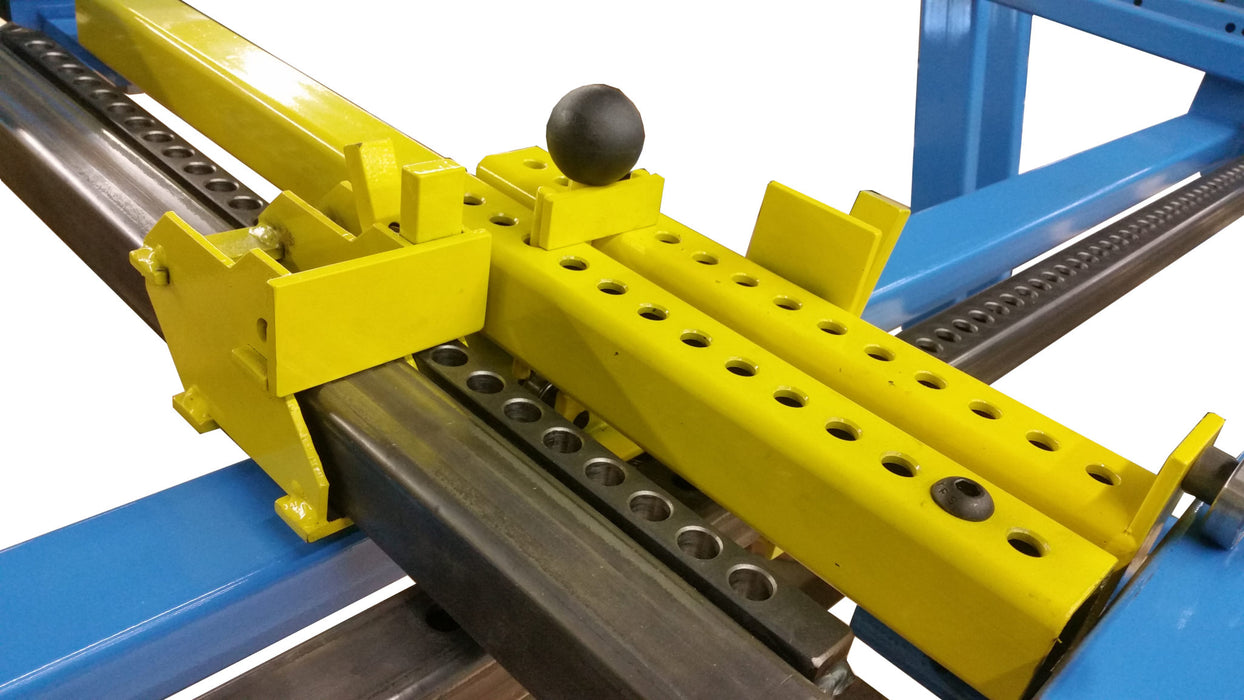

  • Intuitive Pin System allows even Quicker and Easier setup than ever before.
  • Cylinders Located in the back of the machine to Provide Operator with Additional Working Space.

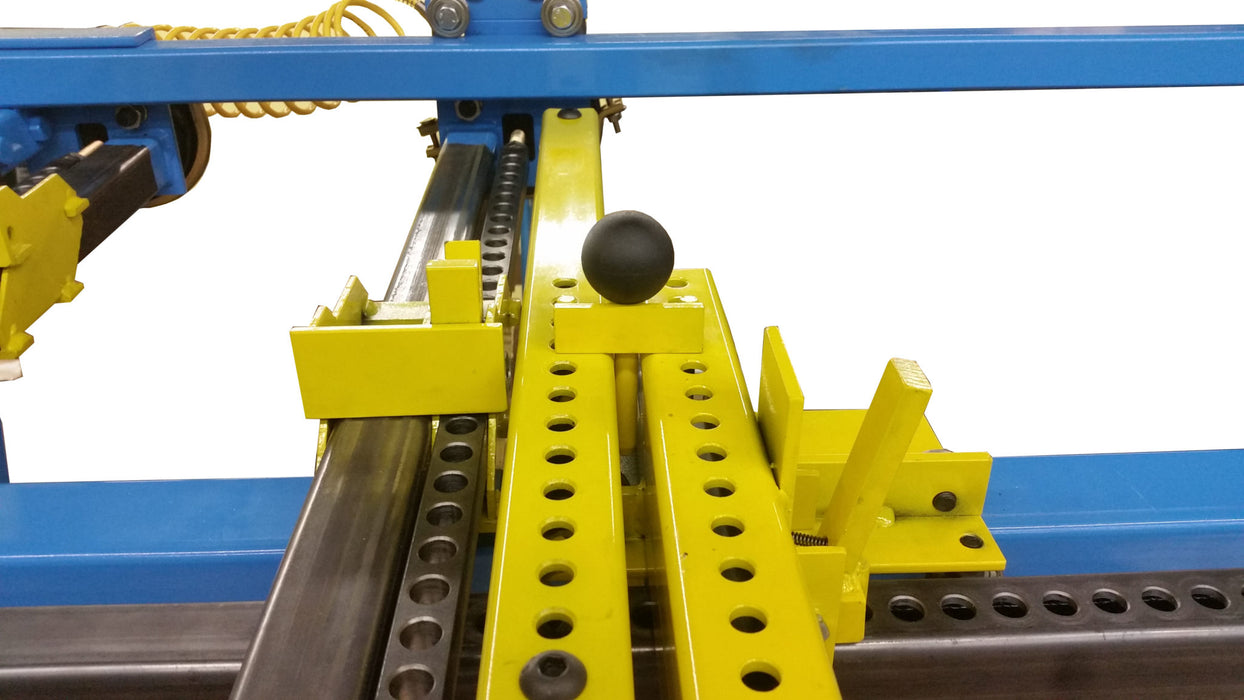

  • Redesigned Jaws with Thumb Plate for Increased Efficiency.
  • Thicker Push Bars Decrease Daily Wear and Tear.


Machine Footprint: 86″L x 50″H x 36″W
