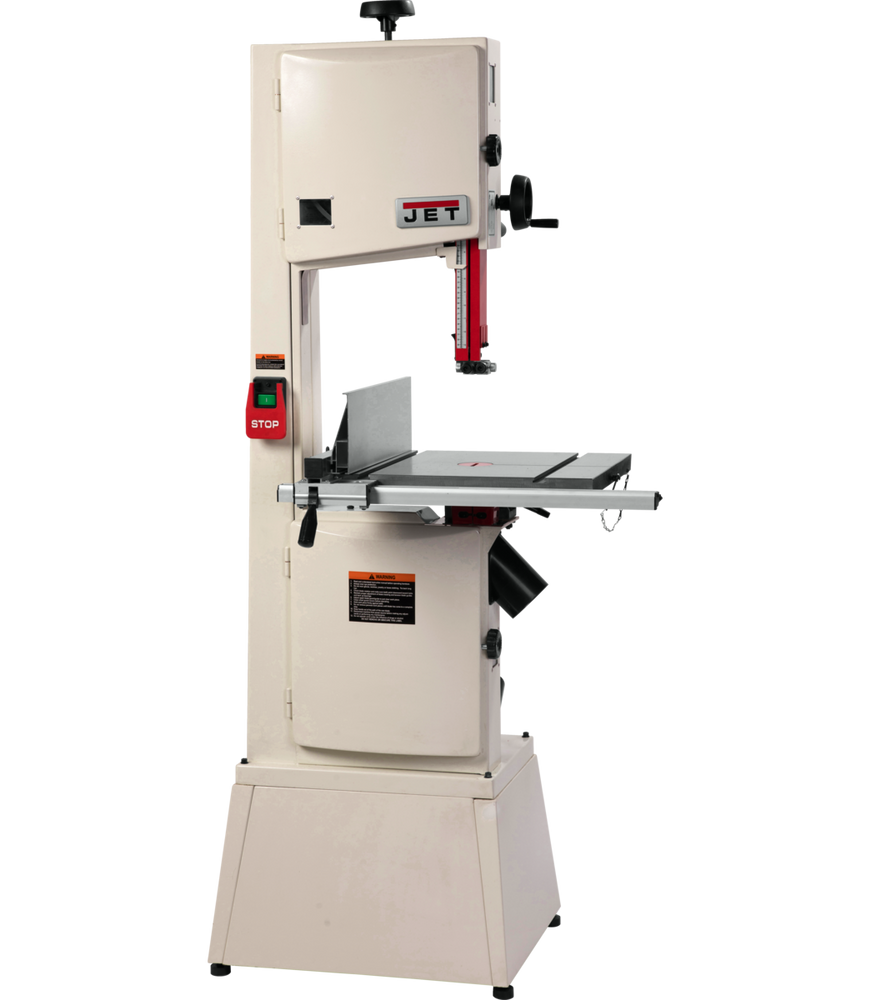

JWBS-14SFX, 14" Bandsaw, 1-3/4HP, 115/230V

by Jet
SKU 714400K
  • Deeper table with a massive 360 sq. in. of cast iron work surface for greater work piece support
  • Over 13 Resaw capacity for cutting large pieces of wood, slicing veneers, and cutting book matched panels
  • Heavy duty tubular steel welded construction
  • Dual 4 dust ports for maximum dust collection efficiency
  • Independently adjustable, upper and lower ball bearing blade guides
  • Convenient 115V AC outlet location for optional accessories
  • Engineered die-cast and steel trunnion system, allows for single point adjustments when moving table
  • Larger machined aluminum fence surface with easily visible measurements for the most accurate cutting
  • Robust stamped steel doors with welded steel pin hinges for greater product durability
  • Blade tensioning wheel located on top of the saw for better work piece clearance when cutting
Gross Weight316.000
Net Weight272.000
Ready For Web (US)Yes
Prop 65Cancer and Reproductive Harm
Table Height from Floor (In.)40
Blade Length (In.)116
Minimum Saw Blade Width (In.)1/8
Miter Gauge Positive Stops#N/A
Blade Speed (SFPM)3000
Table T-Slot (In.)3/4 (x2)
Recommended Circuit Size (Amps.)20
Stand TypeClosed
Motor Power (HP)1.75
Motor Voltage (V)115/230
Dust Collection Minimum CFM Required (CFM)350
Motor Phase (PH)1
Prewired Voltage (V)115
Motor Amps15/7.5
Table Size with Extension (L x W) (In.)#N/A
Dust Port Outside Diameter (In.)2 x 4
Style (Type)#N/A
Cutting Capacity Height (In.)13
Table Tilt (Deg.)45 Right
Blade Width (In.)#N/A
Table Size (L x W) (In.)21 x 17
Maximum Saw Blade Width (In.)3/4
Cutting Capacity Width (In.)13-1/2
Band Saw Size/Wheel Diameter (In.)14
Wiring Remarks#N/A
Motor Voltage (V.)#N/A
