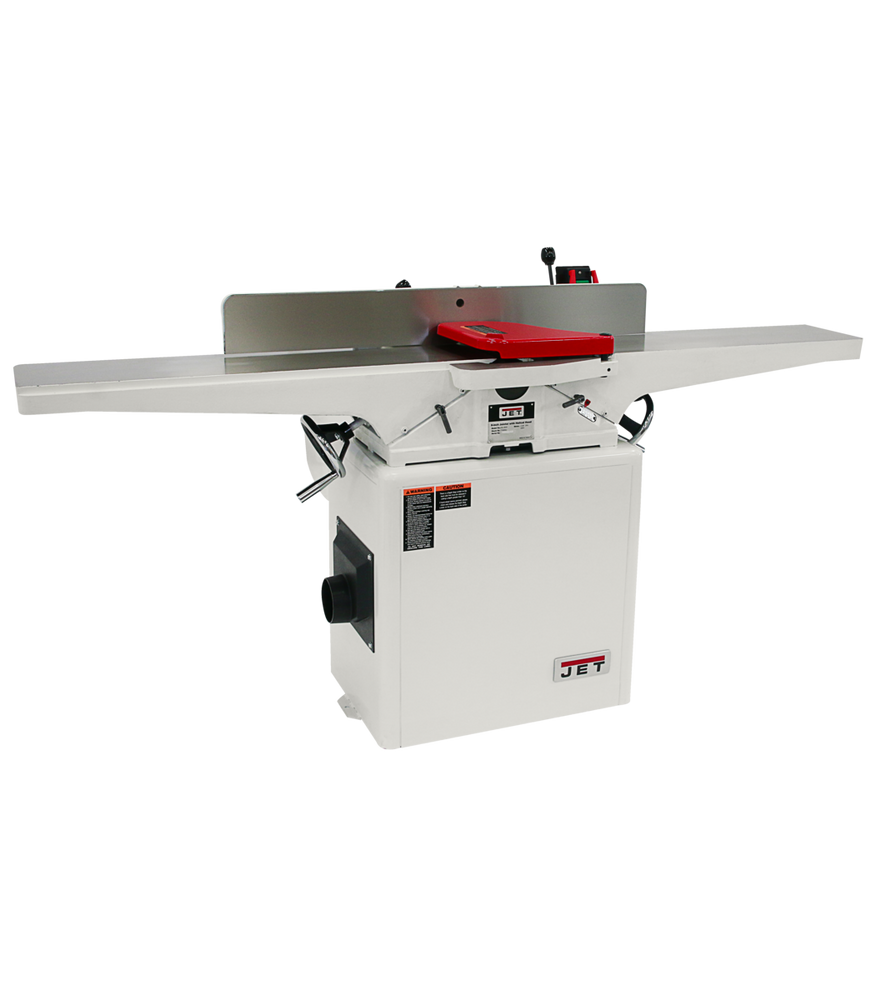

- Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
- Extra-long, heavy-duty cast iron infeed and outfeed tables with precision machined finish
- Large chrome handwheels and easy-to-reach locks make table adjustments less of a hassle
- Tall, rigid fence provides added support
- Two-way tilting fence with positive stops at 45 and 90 to handle bevel operations
- Dual position magnetic controls provide long life and reliability, protecting the motor from potential electrical supply issues
- Built-in 4 dust chute connects to your collection system for efficient dust/chip disposal
- Fence adjustment levers are conveniently located in the center of the fence for quick access
- Powerful 2HP motor easily handles the toughest jointing tasks
- Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
| Height | 18.500 |
| Length | 74.000 |
| Gross Weight | 456.000 |
| Net Weight | 379.000 |
| Volume | 19.965 |
| Width | 25.200 |
| Ready For Web (US) | Yes |
| Prop 65 | Cancer and Reproductive Harm |
| Infeed Table Length (In.) | |
| Fence Positive Stops (Deg.) | 45 L, 90, 45 R |
| Motor Power (HP) | 2 |
| Fence Tilt (Deg.) | 45 L, 45 R |
| Table Height from Floor (In.) | 31-1/4 |
| Motor Phase (PH) | 1 |
| Cutterhead Speed (RPM) | 5500 |
| Fence Size (L x H) (In.) | 38-1/2 x 4-3/4 |
| ` | #N/A |
| Cutting Capacity (W x D) (In.) | 8 x 1/2 |
| Recommended Circuit Size (Amps.) | 20 |
| Outfeed Table Length (In.) | |
| Number of Knives | 36 |
| Table Size (L x W) (In.) | 72 x 9 |
| Size (In.) | |
| Rabbeting Ledge (In.) | |
| Wiring Remarks | |
| Helical Knife Size (L x W x T) (In.) | 15 x 15 x 2.5 |
| Type of Cutterhead | |
| Rabbeting Capacity (In.) | n/a |
| Motor Amps | 12 |
| Dust Port Outside Diameter (In.) | 4 |
| Cuts Per Minute | |
| Cutterhead Diameter (In.) | |
| Standard Knife Size (L x W x T) (In.) | |
| Motor Voltage (V) | 230 |
| Prewired Voltage (V) | 230 |
