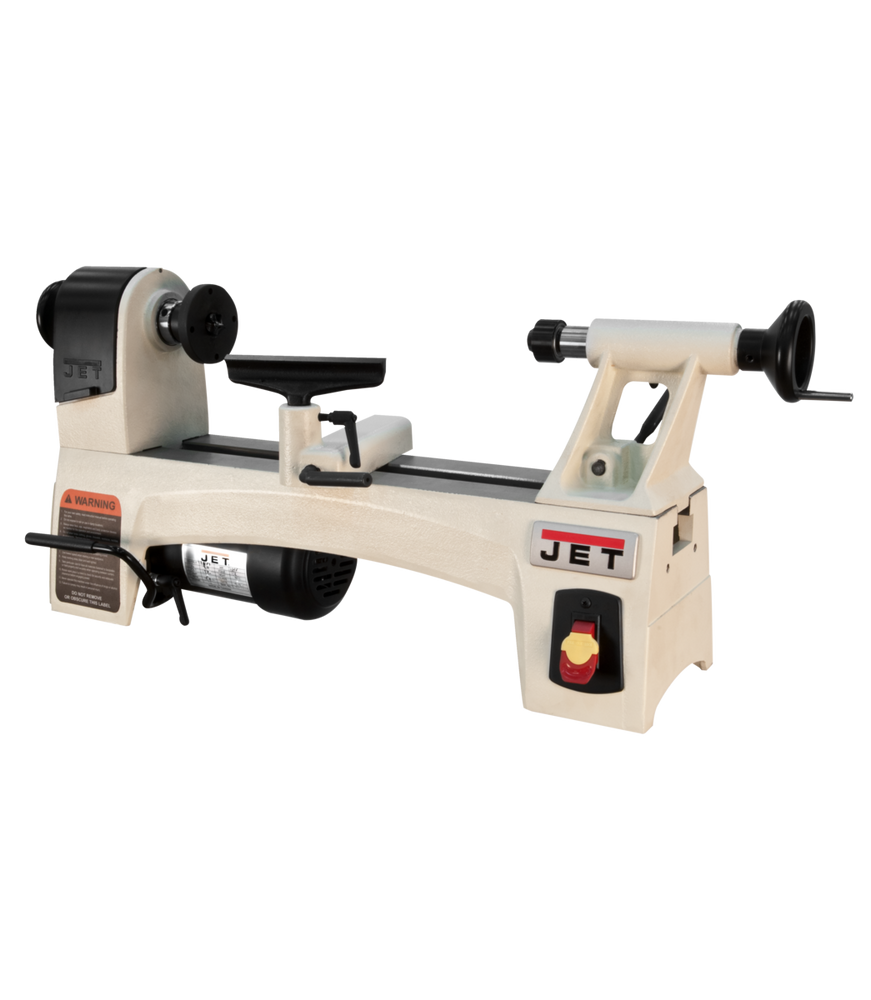

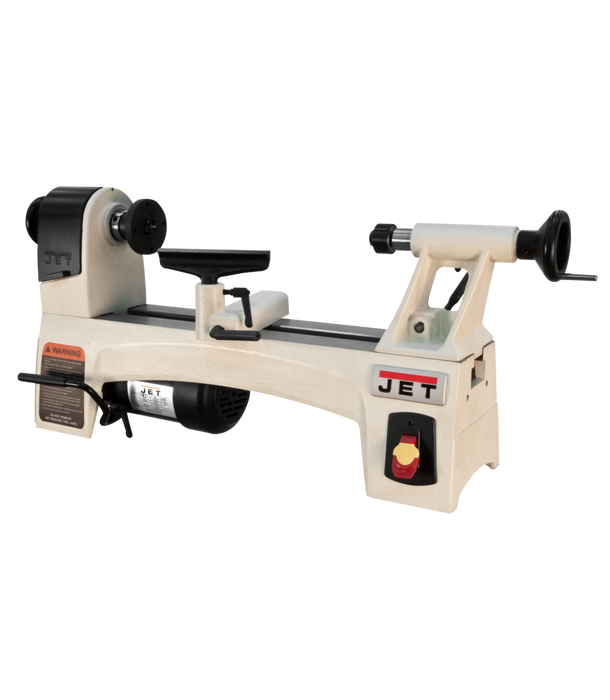

- 15-1/2 between centers
- Six spindle speeds: 500, 840, 1240, 1800, 2630 and 3975
- Integrated 24 position indexing
- Improved tensioning system with easier access to belts
- Wider bed ways provide increased rigidity
- Live center in the tailstock
| Height | 17.100 |
| Length | 30.500 |
| Gross Weight | 82.500 |
| Net Weight | 77.000 |
| Volume | 3.562 |
| Width | 11.800 |
| Ready For Web (US) | Yes |
| Prop 65 | Cancer and Reproductive Harm |
| Motor Amps | 5 |
| Distance Between Centers (In.) | 15-1/2 |
| Quill Travel (In.) | 2 |
| Prewired Voltage (V.) | 115 |
| Assembled Machine Dimensions (In.) | 26L x 7W x 14H |
| Outboard Turning | #N/A |
| Tailstock Bore (In.) | #N/A |
| Swing Over Bed (In.) | 10 |
| Number of Indexing Positions | 24 |
| Spindle Bore (In.) | 3/8 |
| Motor Power (HP) | 1/2 |
| Quill Taper | MT2 |
| Spindle Thread (In./TPI) | 1/8 TPI |
| Motor Phase (PH) | 1 |
| Spindle Speeds | 500/840/1240/1800/2630/3975 |
| Centerline of Spindle to Floor (In.) | #N/A |
| Spindle Taper | MT2 |
| Headstock Movement | #N/A |
| Motor Voltage (V.) | 115 |
| Speed Range | #N/A |
| Swing Over Tool Rest Base (In.) | 7-5/16 |
| Size (In.) | #N/A |
| Recommended Circuit Size (Amps.) | 10 |
| Bed Construction | Cast Iron |
| Style (Type) | #N/A |
| Wiring Remarks | #N/A |
| Outboard External Threads (In. x TPI) | #N/A |
| Bed Gap (In.) | #N/A |
