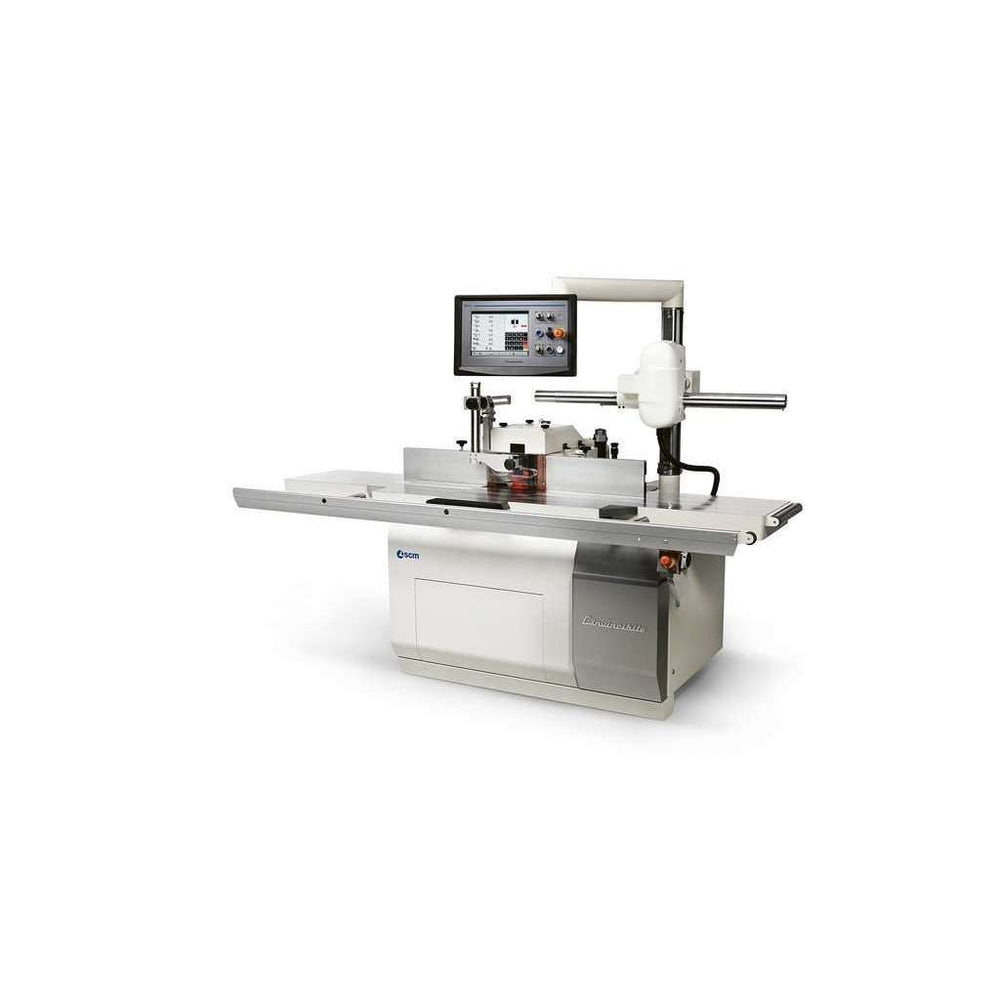

SCM L’Invincibile TI 5 Tilting Shaper (INCLUDES FREIGHT)
The exclusive choice for your success.
Buying a "L’Invincibile TI 5" machine means you get a customised solution because it is the result of years of experience, technical research, Italian creativity.
Electrospindle: machining centre technology service for the woodworker.
Absolute machining precision and absence of vibration due to the perfectly balanced structure of the electrospindle. The electrospindle’s direct drive eliminates maintenance procedures common with conventional belt driven systems.

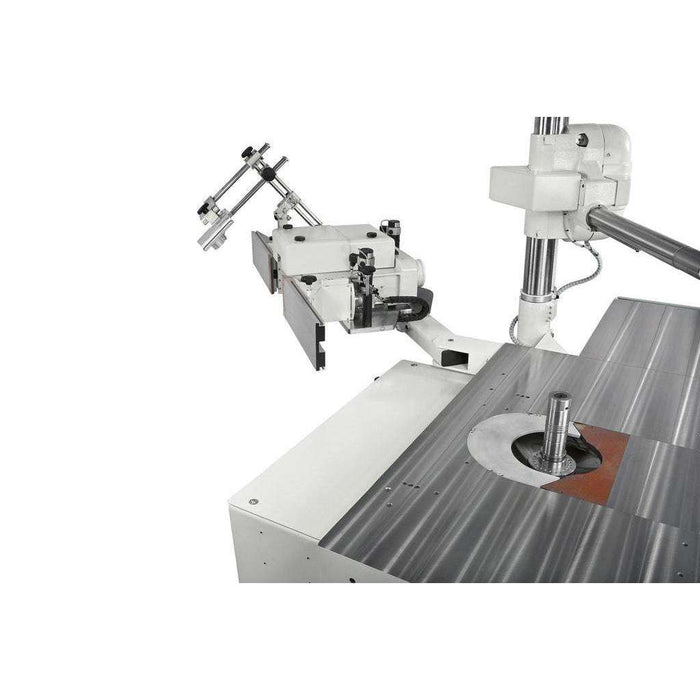

"FAST" sectional worktable: the best support for the workpiece. Provides support for the work piece being machined also close to the tool, allowing the adjustment with mounted tools.
"FLEX" fence: immediately in the correct position. A single simple movement to retract and re-position in an instant and accurately position the fence on the worktable with such precision that no other control is necessary (Scm patent).

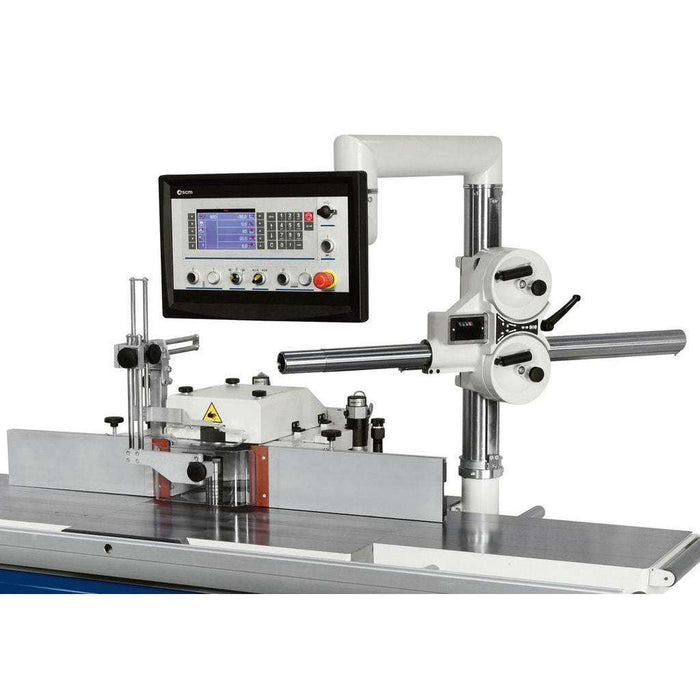

"Easy touch": the operating Advantagestage for easy assistance. Integrated and fast control of all dedicated functions. These features translate into immediate improvements in productivity and guarantees the capability of the full potential of the machine.
|L'invincibile ti 5|
|Spindle height diam. 30-35 (40-50)||mm||140 (160)|
|Spindle speed (at 50 Hz)||rpm||900 ÷ 12000|
|Max. diameter of the profiling tool||mm||250|
|Max. tool diameter retractable under the table at 90°||mm||300|
|Max. diameter of the tenoning tool||mm||300|
|Three-phase motor power starting from:||kW/Hz||7,5 (7,5) / 50 (60)|
