Maggi Evolution 1000R Router CNC Machining Center

Maggi Evolution 1000R Router CNC Machining Center

by STEFF maggi
$0.00
SKU WSI-STEFFMAGGI1000R
The Evolution 1000 Router is a CNC Machining Center that accurately routes, drills, and grooves from underneath with automatic operator return or can be unloaded from the back.

  • This machine is designed for one man operation and practically zero set-up time
  • It is capable of routing, boring both vertically and horizontally, and for hinge holes, while also providing a grooving saw

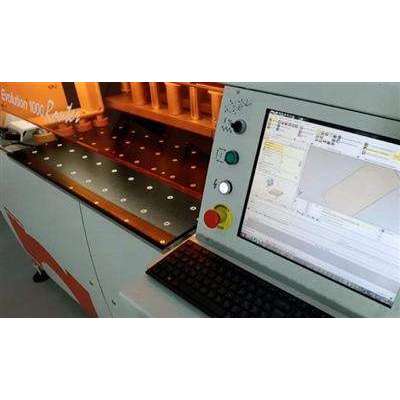

  • It has an integrated control panel with an industrial PC using Windows Operating System, 17" color monitor, CD, keyboard and mouse

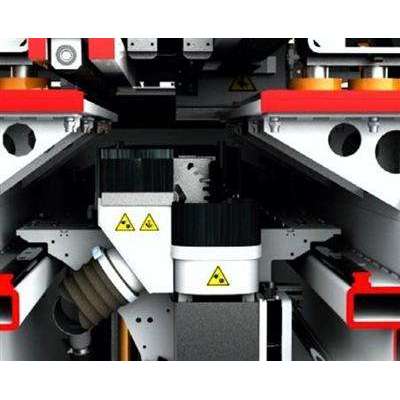

  • The machine is equipped with (1) Electrospindle router, (11) Vertical drills, (6) Horizontal drills, (1) Grooving Saw
  • (4) Horizontal drill in X-axis, (2) in Y-axis

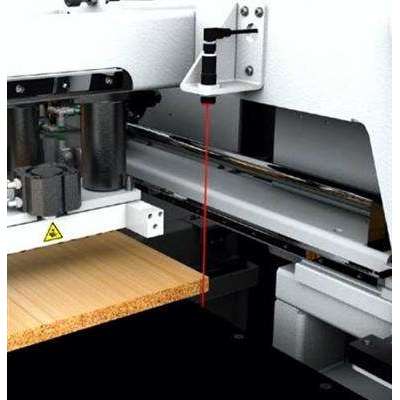

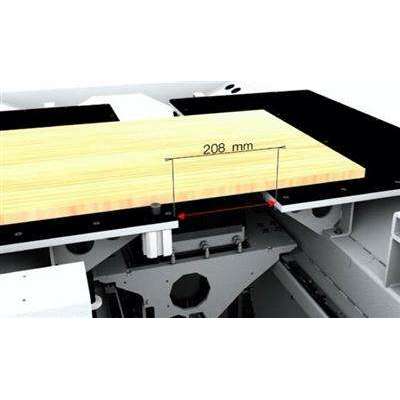

  • A laser measuring tool is included to determine the dimensions of the panel and to reset the boring process according to the real length of the panel itself
  • The entire head unit is moved via ball screws and controlled by 'Yaskawa' brushless servo motors
  • A panel holddown presser ensures the panel is perfectly flat to provide accurate assembly
  • Large air flotation tables make handling the panel easy
  • 3.3 kW, 24000 RPM Electrospindle
  • Max boring depth: 60mm
  • X/Y axis Speed 42 m/min (137 ft/min), Z axis 10 m/min (32 ft/min.)
  • Grooving Saw with 120 mm diameter and 4 mm kerf
  • 900 Minimum CFM @ Air Speed 98 FPS
  • Minimum Panel Size: 300 mm (11.81") x 75 mm (3") x 8 mm (.31") thick
  • Maximum Panel Size: 10000 mm (393.7") x 1000 mm (39.36") x 60 mm (2.4") thick
  • Machine dimensions: 92" x 57" x 54" tall
  • Weight: 1870 lbs

FOB SANFORD, NC
INSTALLATION AND TRAINING: $2,500.00 + AIRFARE
Optional Accessories:

  • Additional TPA/CAD PRO software license to create programs from remote work station $1,295.00
  • Barcode Scanner to upload working programs even faster $1,695.00
  • Post Processor $1,495.00
