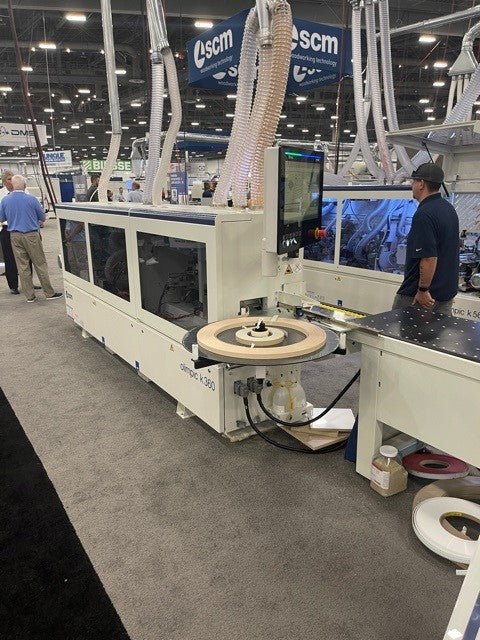

SCM Olimpic K360 HP Edgebander

SCM Olimpic K360 HP Edgebander

by SCM
$88,000.00
Payment Calculator
Financing Request
SKU WSI-SCMK360

K360 HP

• New Series of Machines
• 6mm Capacity
• 60mm Panel Thickness
• 36 Feet Per Minute
• Feed Chain



Automatic single sided edgebander designed to for those looking for more servo driven set up used for edgebanding straight vertical profiles with coiled material
(veneer and PVC) and with strips (high-pressure laminate and solid wood) with a maximum thickness of 6mm.

Air cushion table placed at the machine entry & 200 mm longer entry guide

Placed at the machine entry, it facilitates the insertion and handling  of the panels, especially when they are of larger dimensions.

Table Dimension 1600 X 600 mm

200 mm longer entry guide and shorter panel support in order to bring the air cushion table closer to the presser of the machine to facilitate the panel insertion

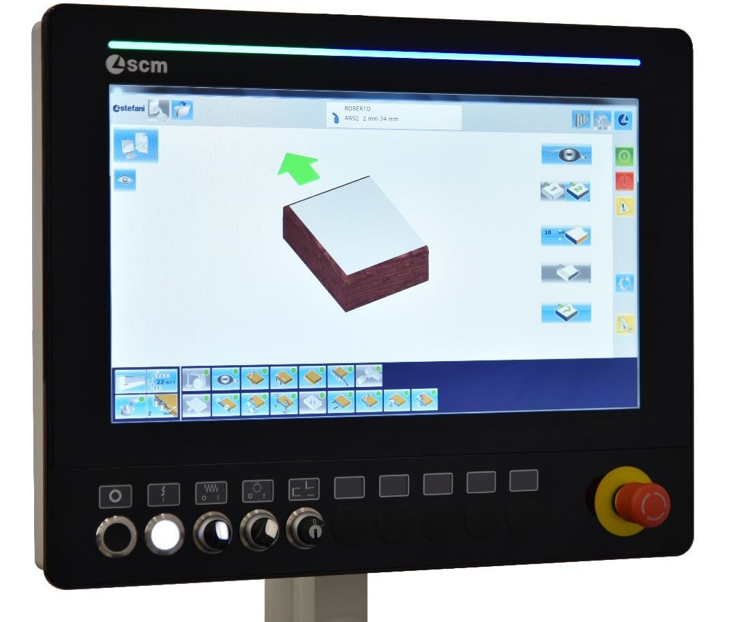

EYE M Controller with 21.5" Touch Screen

  • Maestro Pro-Edge PC Controller
  • 21.5” High Resolution Touch Screen
  • Unlimited Number of Working Programs
  • Provides Diagnostic, Maintenance and Production Information
  • LED Light Bar to Indicate Machine Status
  • Available in mm’s or inches
  • Available in 5 languages

Smart Glue Pot (SGP) Allows for use of EVA or PUR glue.

  • SGP-E Glue Pot
  • Standard on the HP ERT
  • 1.5 Kg Capacity
  • Manual Dosage with Graduated Knob
  • Manual Purge for PUR and EVA Glue

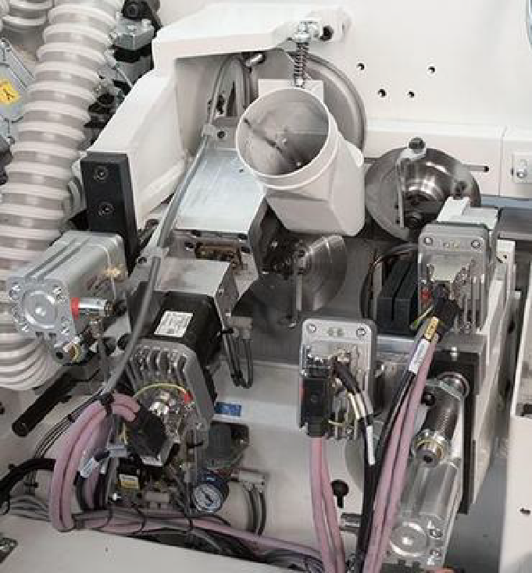

Servo Driven Top & Bottom Trimmers

  • Four Axis Servo Positioning
  • Able to Process Two Different Radii (2mm / 1mm)
  • Independently Controlled
  • Quick Change / Disconnect motors
  • Top/Bottom/Side Copy Wheels

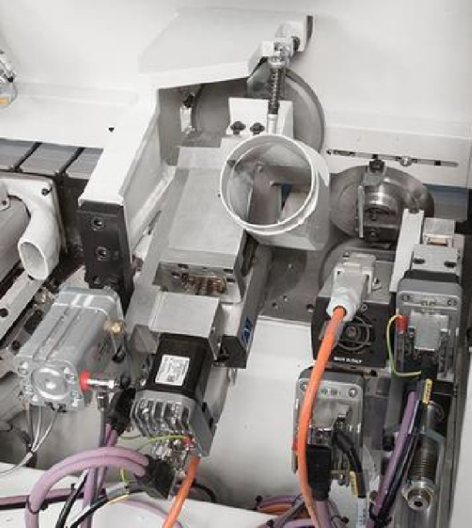

Servo Driven Corner Rounding Unit

  • Single Motor Unit
  • Servo Positioning through the Controller
  • Diamond Cutter standard
  • Dust Collection
  • Maximum Panel Thickness 45mm
  • Minimum Panel Length 280mm

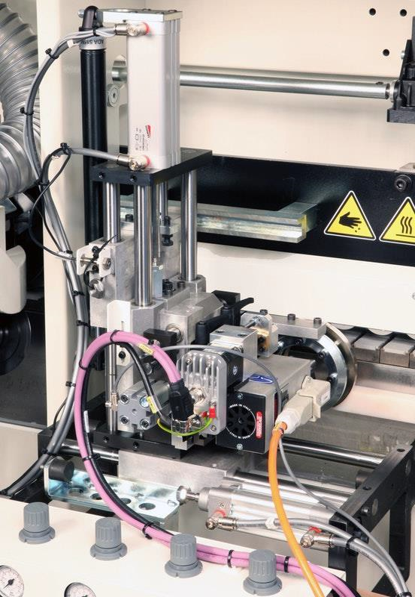

Servo Driven Profile Scrape Station

  • Four Axis Servo Positioning
  • Able to Process Two Different Radii (2mm / 1mm)
  • Independently Controlled
  • Top / Bottom / Side Copy Wheels
  • Mechanical Digital Readouts
  • Collection Bin

Duty Cycle:
2-3 Hours of Production Per Day

Capacities / Feed Speeds / Panel Thickness:
6mm / 36 fpm / 60mm



Edge thickness mm 0,4 - 6
Panel thickness mm 8 - 60
Feed speed m/min 11
Compressed air bar 6
