Omga Push Feed SNC T 521 SNC
Click or scroll to zoom
Tap or pinch to zoom
Omga Push Feed SNC T 521 SNC
Click or scroll to zoom
Tap or pinch to zoom
Omga Push Feed SNC T 521 SNC
Omga Push Feed SNC T 521 SNC

Omga Push Feed SNC T 521 SNC

by WSI Machinery
$0.00
SKU

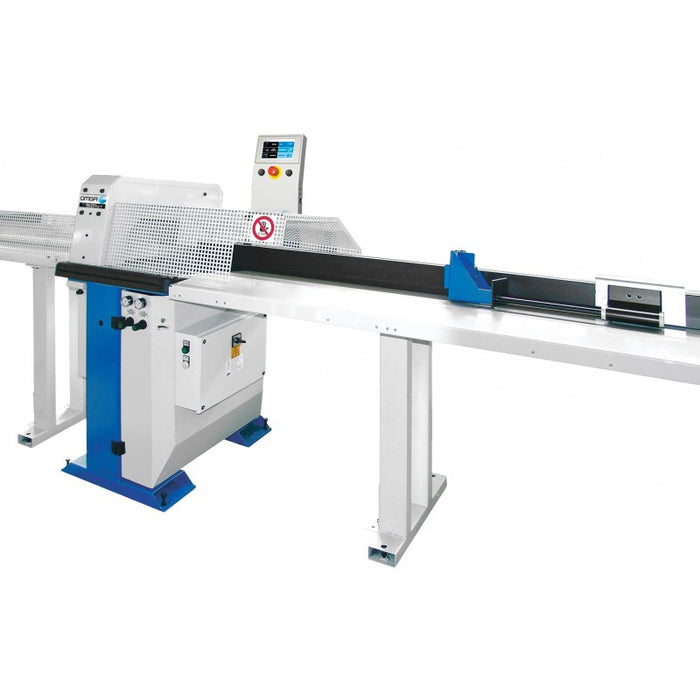

Automatic push fed saw for sequenced cutting with 18" saw blade.



MORE INFO

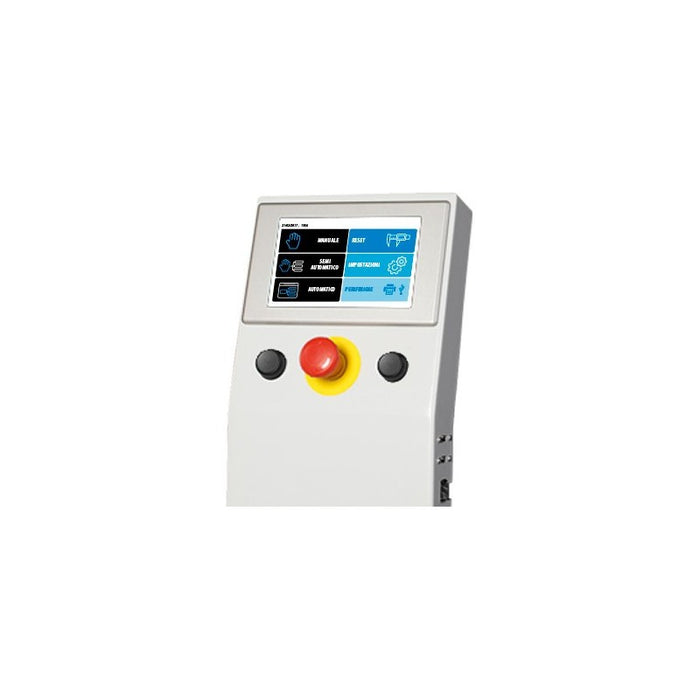

Last Generation automatic programmable cut-off saw for precision length cutting of wood stock. Suitable for any production requirement. The machine is equipped with a controller capable of performing two work cycle programs. The onboard computer is able to store cutting lists with lengths and the relevant quantity of parts. Cutting lists can be input direct for the NC keypad or with direct serial connection to a remote PC. The system is available in 13' or 20' useable lengths.

  T 521 SNC
Max. piece thickness 4 1/2"
Max. piece width 12 5/8"
Max. infeed length 14' - 20'
Max. feed Speed 200 FPM
Saw blade motor power 6 HP
Saw blade diameter 18" (20" Opt)
Feed motor power 2.5 Nm (.75 kW)
Cutting Speed 0.5 - 1 sec.
Average number of cuts 15 - 20 / min.

Download Brochure      Download Brochure
