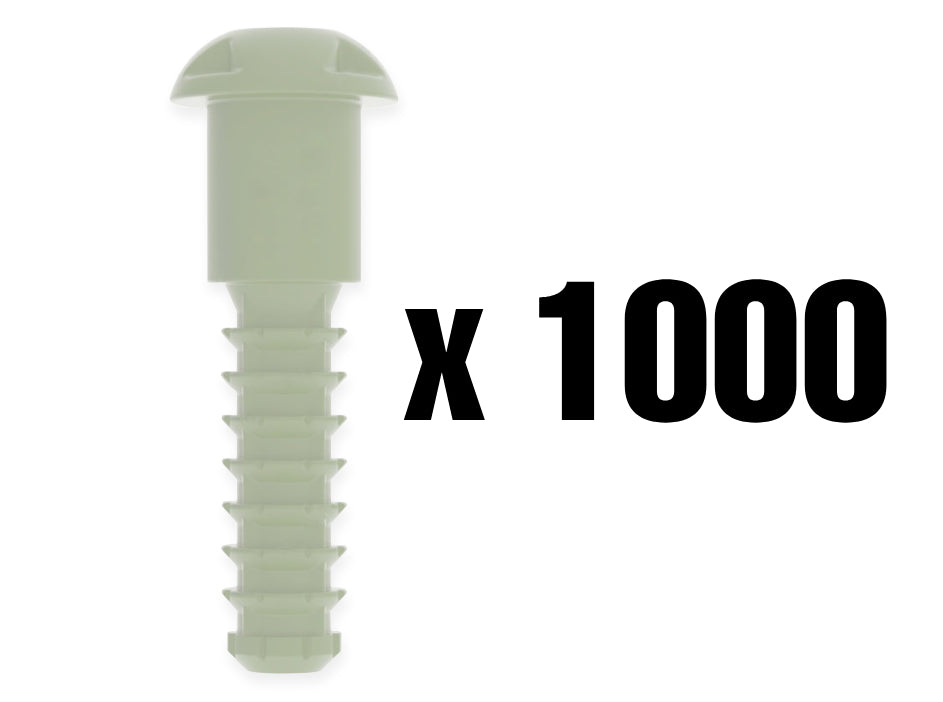

Peanut 3 Long Connector - Box of 1000 (20¢ Each)

$204.99
SKU IFP3L1000

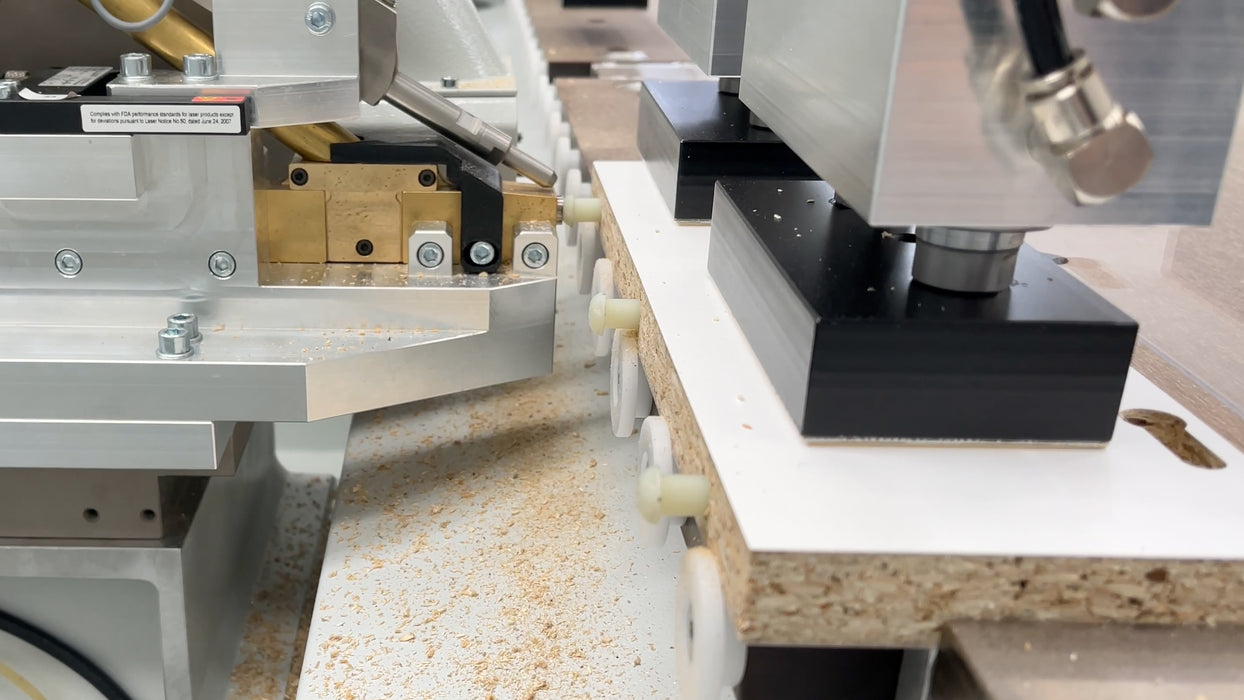

The Peanut 3 Long is used with Auto-Insertion Machines, End-Drilling Machines, & Large-Scale Production Line Insertion Machines for 90º connections. With alternative applications of end-to-end connections as well.

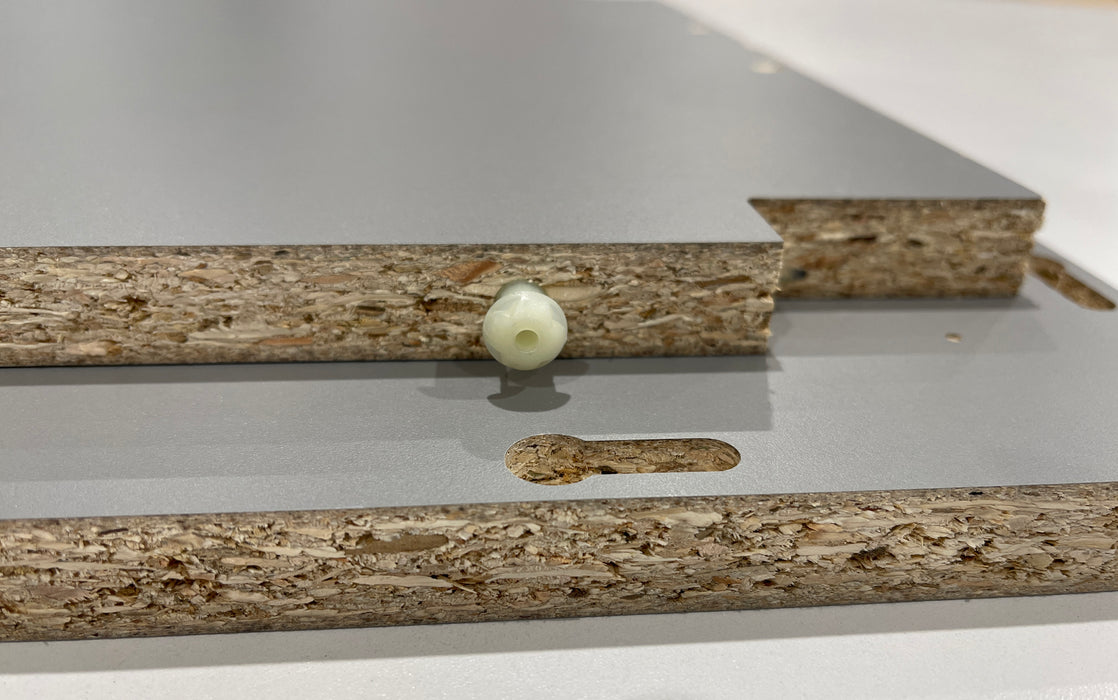

The Peanut 3 Long is a single-component, invisible connector and the optimum solution for large-scale manufacturers. It is designed for fast assembly and is compatible with end-drilling machines, auto-insertion machines, and large-scale production line insertion machines. The long dowel length provides an optimal solution for 90º and end-to-end connections. The component is solid filled, meaning that it has no holes for screws or pins. In assembly, the Peanut head rides over the lip of the Peanut slot and slides to the end. This action creates a strong clamping force, pulling the two panels together from the inside.

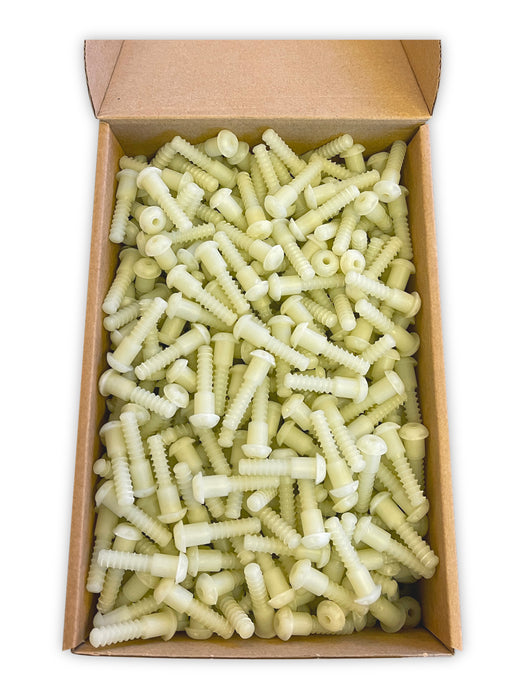

Available Sizes: Box of 1,000 (20¢ per)

Features

  • A self-clamping, single component connector
  • 100% Concealed connector
  • Creates an incredibly strong joint
  • Quick and simple assembly of cabinets
  • Packs flat when pre-inserted
  • Ideal for boring and insertion machines
  • Can be reassembled many times
  • Made from glass-fiber reinforced nylon



Technical Specs

Brand: Peanut

Material: Glass-Fiber Reinforced Nylon

Insertion Type: Dismountable

Finish: White

Peanut 3 Long Technical Data Sheet

 1. Machining

Drill your 6mm PEANUT 3 holes and machine your PEANUT Slots with the Peanut Cutter.

2. Insert the PEANUT 3

Use a mallet or hammer to insert the PEANUT 3 flush.

3. Join your furniture

Simply connect your furniture together.

Peanut 3 Connector Video

Peanut 3 Quick Insertion Demonstration Video

Peanut 3 Assembling a Prototype Cabinet Video
