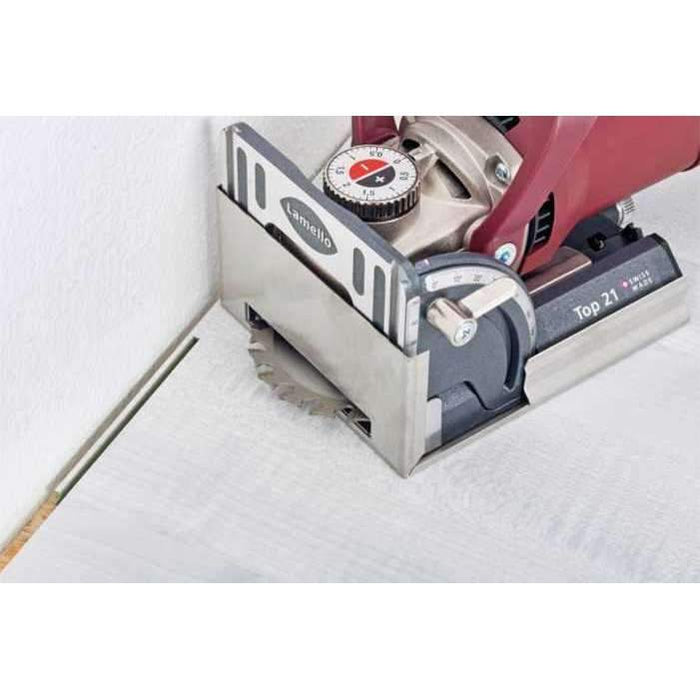

Lamello Top 21 Biscuit Joiner, 101500S

by Lamello
$1,495.00
SKU CL101500S

Lamello's Top 21 biscuit joiner mills a precise 4mm groove for wood joining and supports a wide range of fixed, self-clamping, and detachable connectors. Its unique cutter height adjustment allows fine-tuning in 0.1mm increments, enabling centered grooves, recessed edges, and expansion gaps with full precision. Built with machined aluminum components, it ensures accuracy, stability, and versatility for furniture joints, mitres, and panel connectors.

Includes

  • Top 21 biscuit joiner
  • Suction stub 36mm
  • Carbide reversing blade cutter
  • Spacer 4mm
  • Set of Tools
  • Stop Square
  • Dust Bag

Features

  • Height-adjustable cutter based on the tried-and-tested original from the inventor of the system.
  • Fixed, self-clamping and detachable connecting fittings

Benefits

  • Unique rotating height adjustment to set the cutting position in 0.1 mm intervals, totalling in 4 mm
  • Powerful, electronically controlled 1050 W motor with soft start, constant speed, restart and overload protection
  • New base plate generation with improved visibility of the angle scale and height adjustment as well as new application surfaces left and right for efficient positioning on the work piece
  • Precision-machined guide and application surfaces for perfect fit of work pieces
  • Multifunctional stop square for vertical stability as well as perfect mitres due to the application on the outer surface for 22.5 and 45° angles

Applications

  • The highly efficient, simple and accurate joining system for panels
  • Adjust groove position to exact center of workpiece

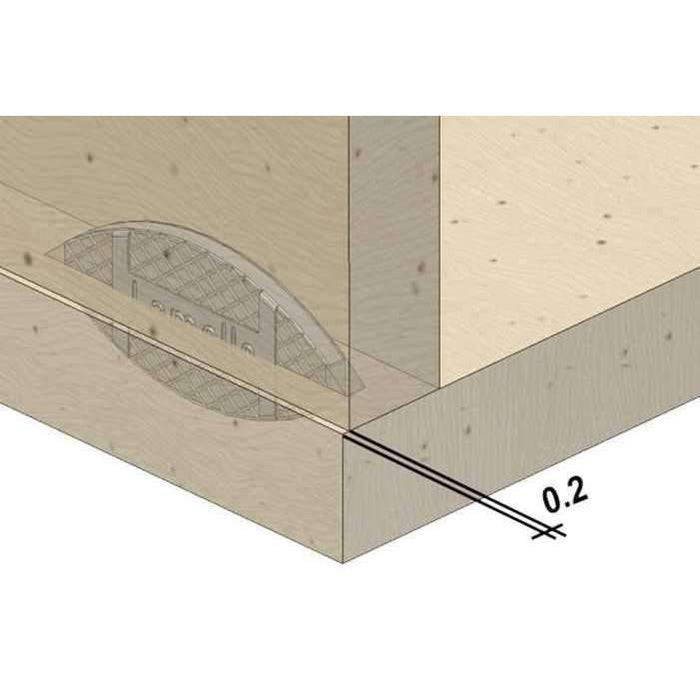

  • Easy cutting of connections with offsets
  • 2 x 4 mm double cuts for Lamello Clamex S
  • Cutting of 8–12 mm expansion gaps, adjustable in 0.1 mm increments
  • Fixed connections of wood and panels as well as composite materials such as solid surfaces using biscuits of various sizes, the clamping element or the plastic element for solid surfaces
  • Detachable connections using the Clamex S connector
  • Self-clamping connections with the E20-L and E20-H elements
  • Further use to cut grooves and expansion gaps as well as to mill out resin pockets

Versatile

A cutting principle for many different joining elements.

Swivelling Front Stop with Fixed Pivot Point

Join reliably with the cutter which is in the exact center between to two application surfaces.

Multifunctional Stop Square

In addition to vertical stability resulting from the larger contact area, the stop square enables variable adjustment of the groove position, 0 - 50mm.

Revolutionary Height Adjustment

Adjustable cutter position (+-2 mm) in 0.1 mm increments over the rotary knob, for individual positioning of the groove.

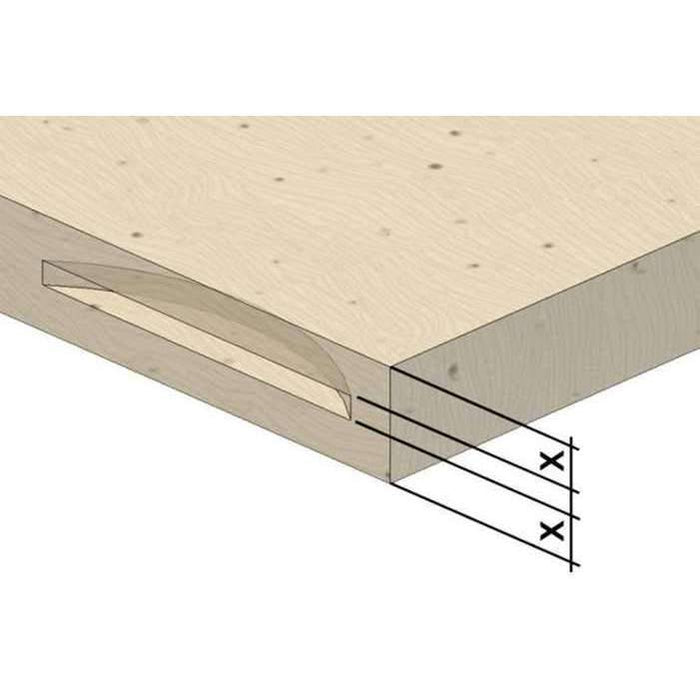

Always in the Center

Always cut the groove into the center of the workpiece thickness - as a result of the adjustable cutter position.

Powerful Motor

Powerful motor with electronic controller, soft start, speed control, overload protection, and restart protection.

Technical Data

Power: 1,050 W
Voltage: 120 V
Speed: 9,000 minˉ¹
Cutter: Carbide-tipped cutter with groove, 100 x 4 x 22 mm
Teeth: 6, with scoring teeth
Max. cutting depth: 20 mm
Weight: 7.7lbs.
