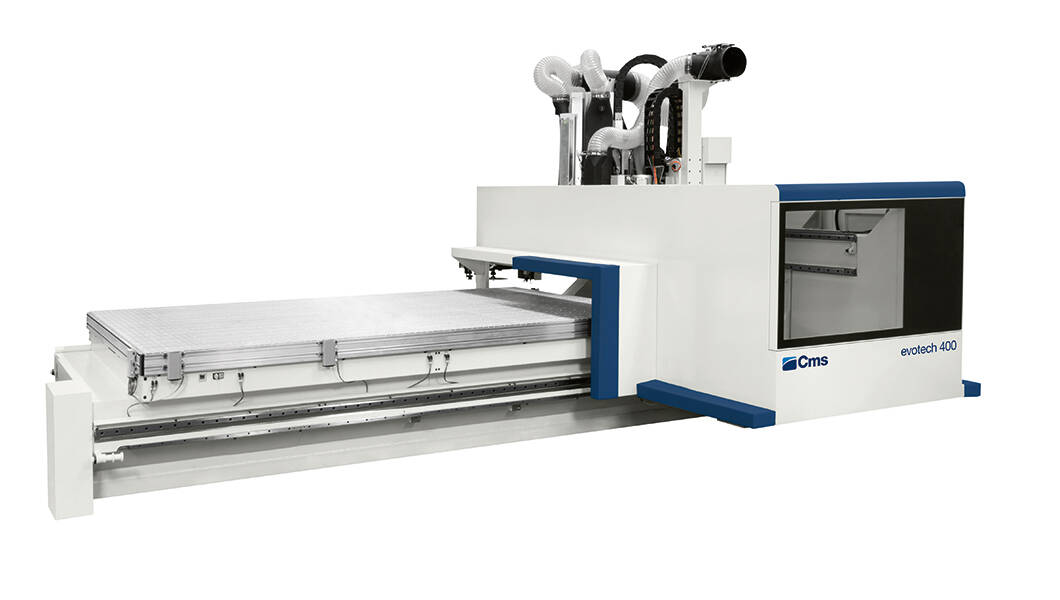

CMS Evotech is a high-performance 3- or 5-axis machining center with a mobile gantry structure and a fixed worktable, designed for advanced materials and plastic machining. Its robust frame and dual-motor gantry drive provide the rigidity and dynamic capability needed for demanding engineering parts, prototypes, and thick or complex panels. The extruded aluminium table and efficient vacuum/clamping system make it a versatile tool for both nesting and technical machining tasks.
-
High removal capacity with excellent finish — Spindles up to 15–17 kW and speeds up to 24,000 rpm ensure strong material removal rates while maintaining tight tolerances.
-
Rigid and stable structure for demanding tasks — The dual-motor gantry drive and stable gantry architecture deliver exceptional control and precision, even under heavy machining loads.
-
Flexible clamping and sheet handling — The table supports a variety of clamping systems (vacuum, mechanical, T-slots), ensuring secure workpiece holding even for challenging shapes or materials, and maintaining accuracy across the work area.
-
Large Z travel — ideal for thick / bulky parts — Enables the processing of tall or bulky panels / components, expanding the variety of possible jobs.
| Parameter | Specification (typical) |
|---|---|
| Axes | 3- or 5-axis |
| Spindle power | 12 – 17 kW |
| Spindle speed | up to 24,000 rpm |
| Z-axis travel / Panel clearance | up to 500 mm (depending on configuration) |
| Tool changer capacity | up to 32 – 48 tools (depending on configuration) |
