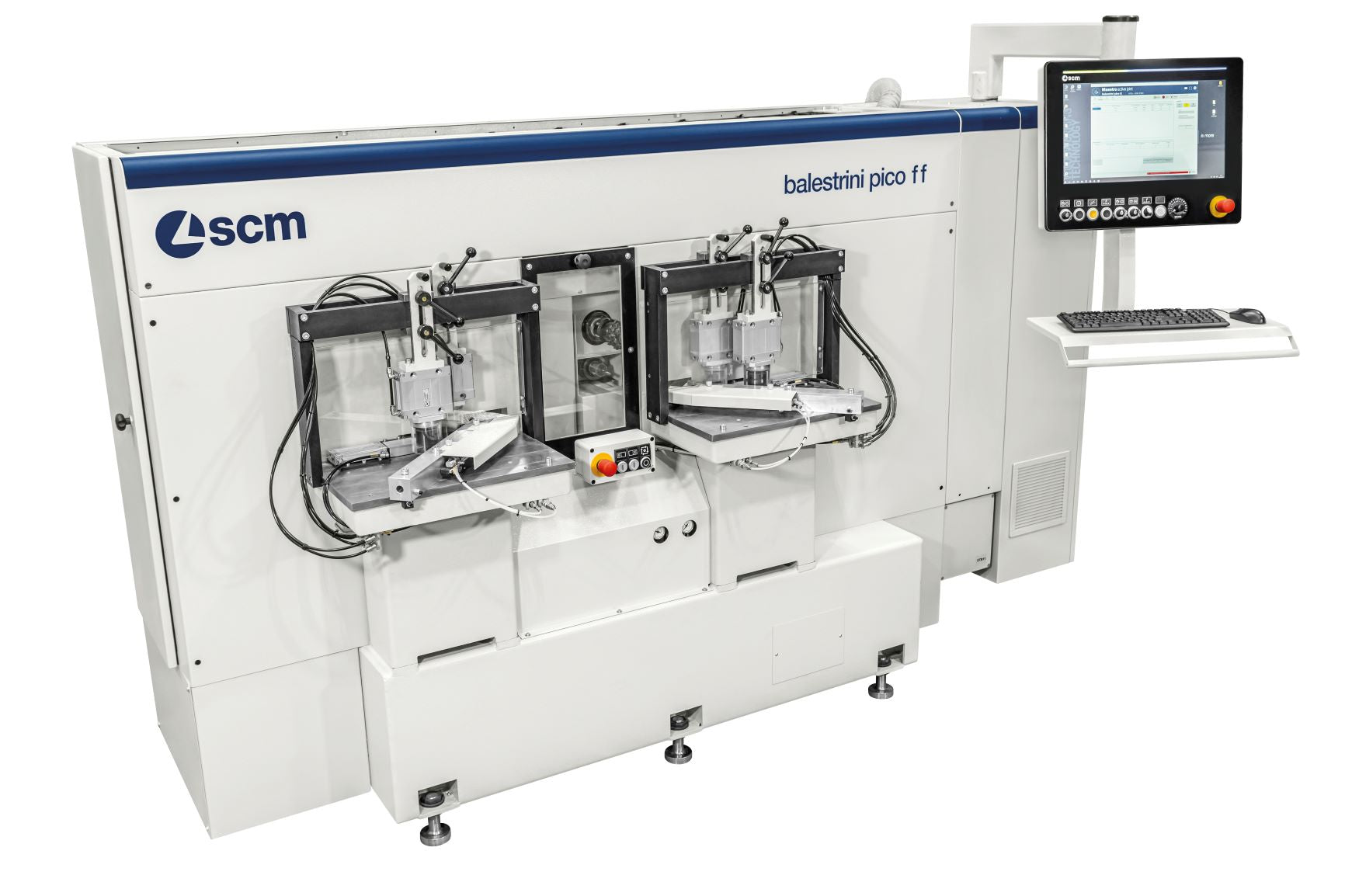

Dual bench round end tenoning machine. balestrini pico can machine horizontal, vertical and angled round end tenons. Its work cycle takes place using a moving tool that alternates between two fixed workpiece clamps.
| Workable piece dimensions | |
| Width x thickness with straight cut max. | 170x70 mm |
| Width x thickness with straight cut min. | 10x10 mm 15x8 mm |
| Min. workpiece length | 100 mm |
| Tenons dimensions | |
| Dowel diameter | 4÷30mm |
| Max. tenon length | 100 mm + thickness |
| Max. tenon length on request | 200 mm + thickness |
| Tenon thickness | 4÷30mm |
| Tenon depth | 5 - 50 mm |
| Tenon tilt | 0°÷90° |
| Maximum Productivity | 800 tenons/h |
