SCM Class SI 400EP Sliding Table Saw, INCLUDES FREIGHT

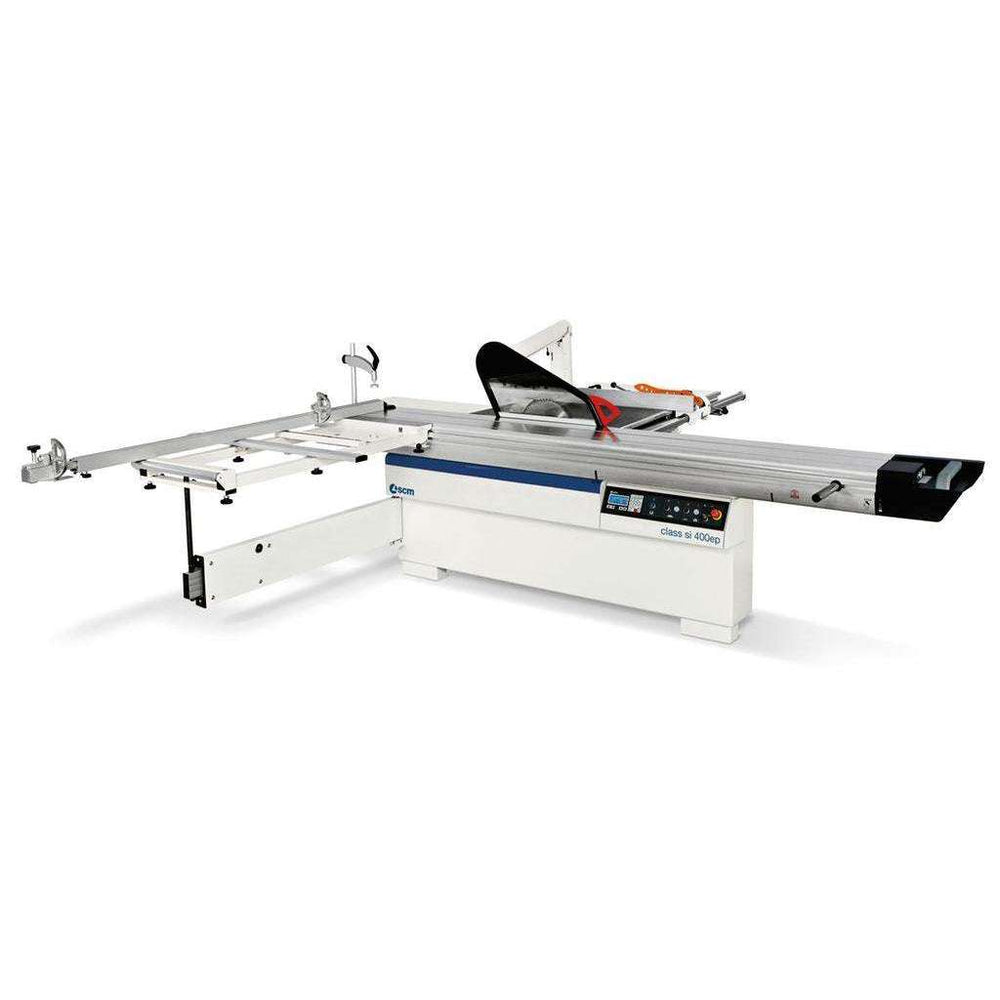

Experience exceptional precision with the SCM Class SI 400EP sliding table saw, engineered for professional woodworking applications. This advanced machine features a robust cast iron saw unit accommodating a 400mm (15.75") main blade, complemented by an independently adjustable scoring unit for flawless cuts on both solid wood and panel materials. The anodized aluminum sliding table, with a generous 3200mm (126") stroke, ensures exceptional support and stability during operation. Designed for user convenience, the Class SI 400EP includes an eye-level control panel for easy access to all main functions, enhancing operational efficiency. Its innovative "dove-tail" guide system and large lateral trunnions provide maximum accuracy during blade adjustments, making the Class SI 400EP an indispensable asset for craftsmen seeking quality without compromise.

**+ $3,200.00 Installation Required, Freight Included**

STANDARD EQUIPMENT

• Sliding carriage

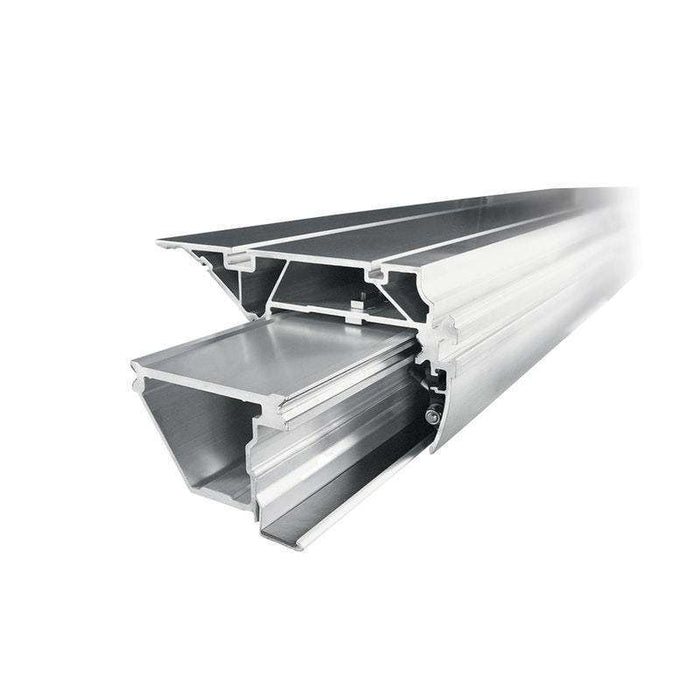

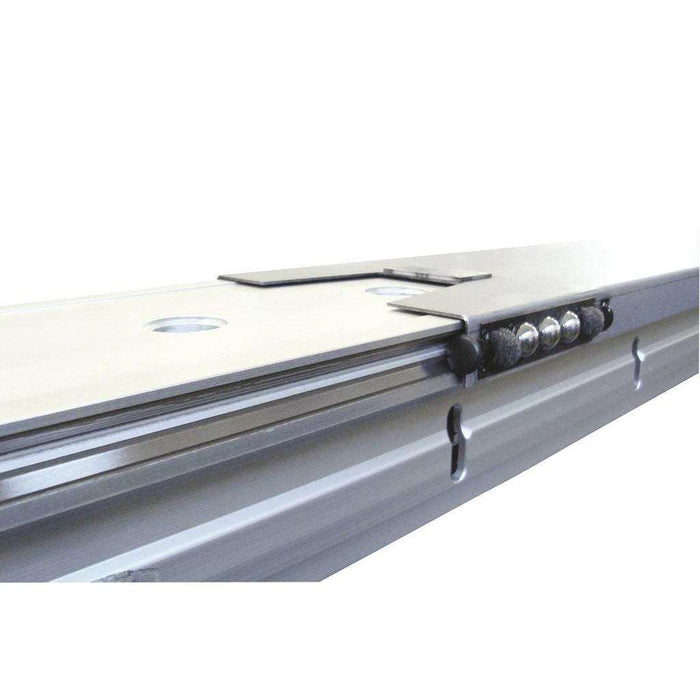

  • The anodized aluminum alloy carriage will never require adjustment and thanks to its structure with arch-ground hardened steel slideways (SCM exclusive and patented solution) it can bear loads four times higher.
  • Furthermore, the “arc” profile of the slideways ensures:
    • No play and no need for adjustments over time
    • Higher loading capacity
  • 10 years of SCM guarantee for the carriage sliding system.
• Optimizer/Sequencer App for Tablet: SCM Thundercut. Application to be downloaded from the App Store or Play Store on compatible tablets (mobile devices) equipped with iPadOS or Android operating systems. It can be activated using the QR code supplied with the machine. The App allows to:
  • Manage your machine stock and the material and panel magazine
  • Create and modify projects, import projects from the main furniture design software ("cpout" file format), import cutting lists
  • Optimize cutting lists, choosing from one or more proposals of the optimization software integrated into the App
  • Set the machine correctly for each cut to be made, thanks to the simple and intuitive graphics of the 3D sequencer that guides the operator at each step
  • Print labels with bar code to identify the various parts, thanks to the Bluetooth connection with compatible label printers

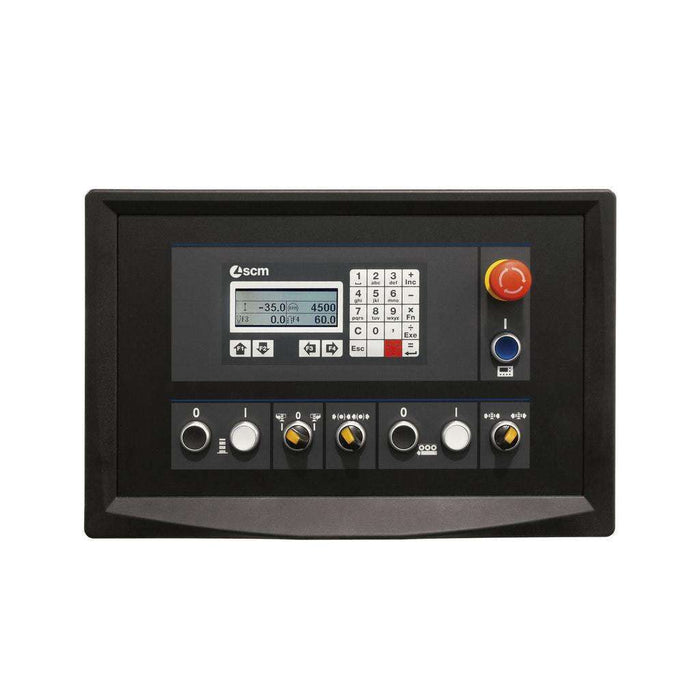

• READY electronic control panel with the following main features:
• Direct control of the following working axes with manual, manual incremental, semi-automatic, automatic mode:
  • Main blade lifting
  • Saw blades unit tilting
  • Parallel fence movement
  • Storage capacity up 99 programs
• Overhead mobile control panel
• Motor start/stop pushbuttons integrated in the sliding carriage (for main and scoring blade)
• Outfeed table extensions
• Eccentric clamp

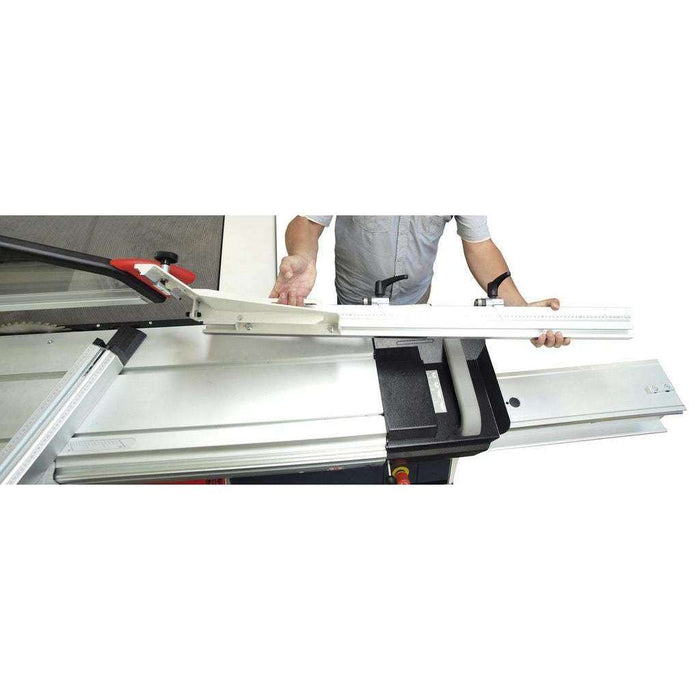

• Squaring frame on swinging arm support, with:
  • Fast fence positioning for angular cuttings
  • Idle roller to facilitate the panel loading/unloading
• Telescopic fence with 2 flip-over stops and imperial rule tilted towards the operator
  • ***Digital readouts not included as standard***
• Programmed parallel fence
  • Position readout on encoder
  • Sliding on THK guide
  • Adjustment by means of recirculating ball screws, 25 m/min max. speed
  • Continuously adjustment by means of pushbuttons or automatic positioning
  • Possibility of incremental positioning
  • Automatic set up
  • Total exclusion of fence under the worktable
  • 1600mm cutting width

TOOLING INCLUDED

• Saw blade 350 mm (57.04.16)
• Expandable scoring blade (53.03.40)
• Trimming shoe, push stick and push handle
• Toolbox: Wrenches, allen wrenches, user manual, spare parts catalog

SAFETY/PROTECTIONS

• Emergency pushbuttons located on the front machine side
• Direct start main motor with pushbuttons
• Overload protection
• Overhead saw guard with incorporated dust extraction, 100 mm outlet diameter
• Auxiliary low voltage circuit (110V)
• Automatic brake on main sawblade
• Main power switch can be locked in the off position with a padlock
• Blade access door with safety microswitch
• "CSA" rated electrical components, including cables
