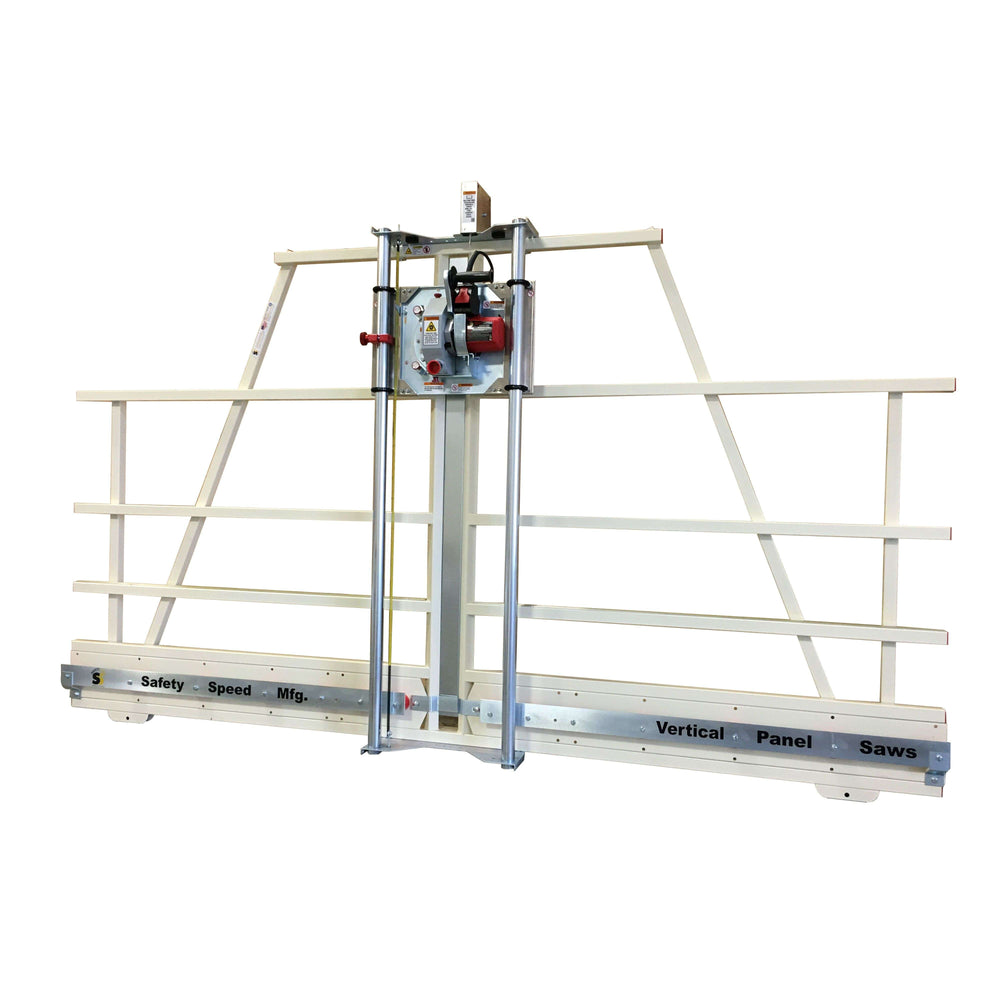

H4 Panel Saw

$2,796.00
SKU

The H4 offers full-sized vertical panel saw productivity in economical machines. The model H4 saws cut within 1/32″ on a wide variety of panel materials up to 1¾” thick. H-Series saws are used in all kinds of panel processing applications.

Standard Equipment

  • 3 ¼ Hp, 15 amp industrial duty saw motor.
  • Zinc plated 1 ¾”steel guide tubes.
  • 4 Nylatron roller bearing systems.
  • Adjustable vertical and horizontal rulers.
  • Quick change from vertical to horizontal cutting.
  • Thin material pressure guard.
  • Injection-molded plastic material rollers.
  • Spring loaded counter balance system.
  • Integrated dust collection bonnet.
  • Extended warranty.
  • TUV certified to UL/CSA standards

Technical Data

Max. Crosscut 50"/1270mm
Max. Rip Cut Unlimited
Max. Cut Thickness 1 3/4"/45mm
Cut Accuracy, Straight and Square 1/32"/.8mm
Saw Blade Diameter 8"/210mm
Motor 15 amp, 120V, 220V
Frame Length 120"/3050mm
Product shipping information
Weight 244 lbs
Dimensions 120 × 11 × 70 in
