Wooden Biscuits
The biscuit is the original, tried-and-tested connector from Lamello. Its success is based on its quick and simple application, stable and high-quality connections, and minimal material fatigue, which is important for panel materials. The original guarantees quality in size accuracy, optimum glue distribution and dimensional stability as well as the sustainable cultivation of beech wood. The perfect fit is appreciated from the very start, when the biscuit are easily inserted into the groove and remain in place even when the work piece is turned over for assembly.
Description:
- Original wooden biscuit for joints in wood and panel materials
- Proven system for angle and miter joints from 22.5° to 180°
- Four sizes for a wide range of applications
- Optimized surface structure for perfect fitting accuracy and glue distribution
- Ideal for various applications in furniture construction and interior fittings

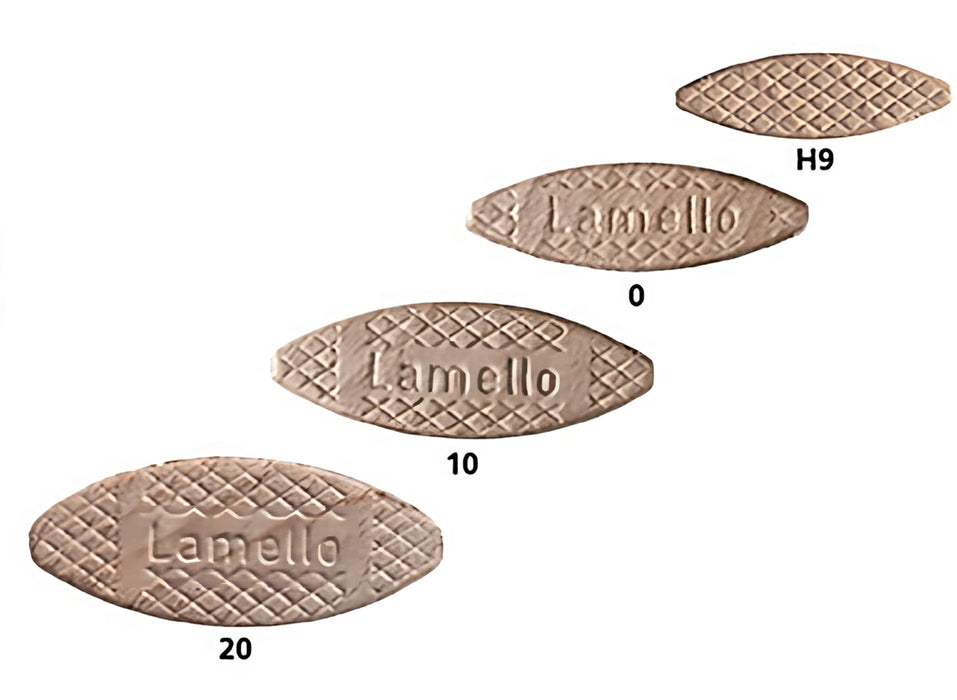

H9 Biscuit Size:
- 38 x 12 x 3 mm
#0 Biscuit Size:
- 47 x 15 x 4 mm
#10 Biscuit Size:
- 53 x 19 x 4 mm
#20 Biscuit Size:
- 56 x 23 x 4 mm
Applications:
- Precisely fitting wood joints at all angles for carpentry work
- Ideal connector for panels, as the material is weakened less than with a dowel
- Milling for connector sizes 0, 10 and 20 with the Top21 or Classic X biscuit joiner with 4 mm groove cutter
- Milling for connector size H9 with the Top21 or Classic X biscuit joiner with a 3 mm groove cutter
- Butt joints from a material thickness of 8 mm (H9 wooden biscuit)
- Mitre connections from a material thickness of 8 mm (H9 wooden biscuit)
Size | H9: 38x12x3mm 0: 47x15x4mm 10: 53x19x4mm 20: 56x23x4mm |
Cutter | ø 100 x 4 x 22 |
Material | Beech |
H9 Biscuit Size:
- 38 x 12 x 3 mm
#0 Biscuit Size:
- 47 x 15 x 4 mm
#10 Biscuit Size:
- 53 x 19 x 4 mm
#20 Biscuit Size:
- 56 x 23 x 4 mm
Moisture content:
- Nine percent (9%) with a tolerance plus or minus (+ or-) of one percent (1%)
Thickness tolerance:
- 4 MM plus 0. tolerance can be minus 1/10 MM or 0.004 of one inch
