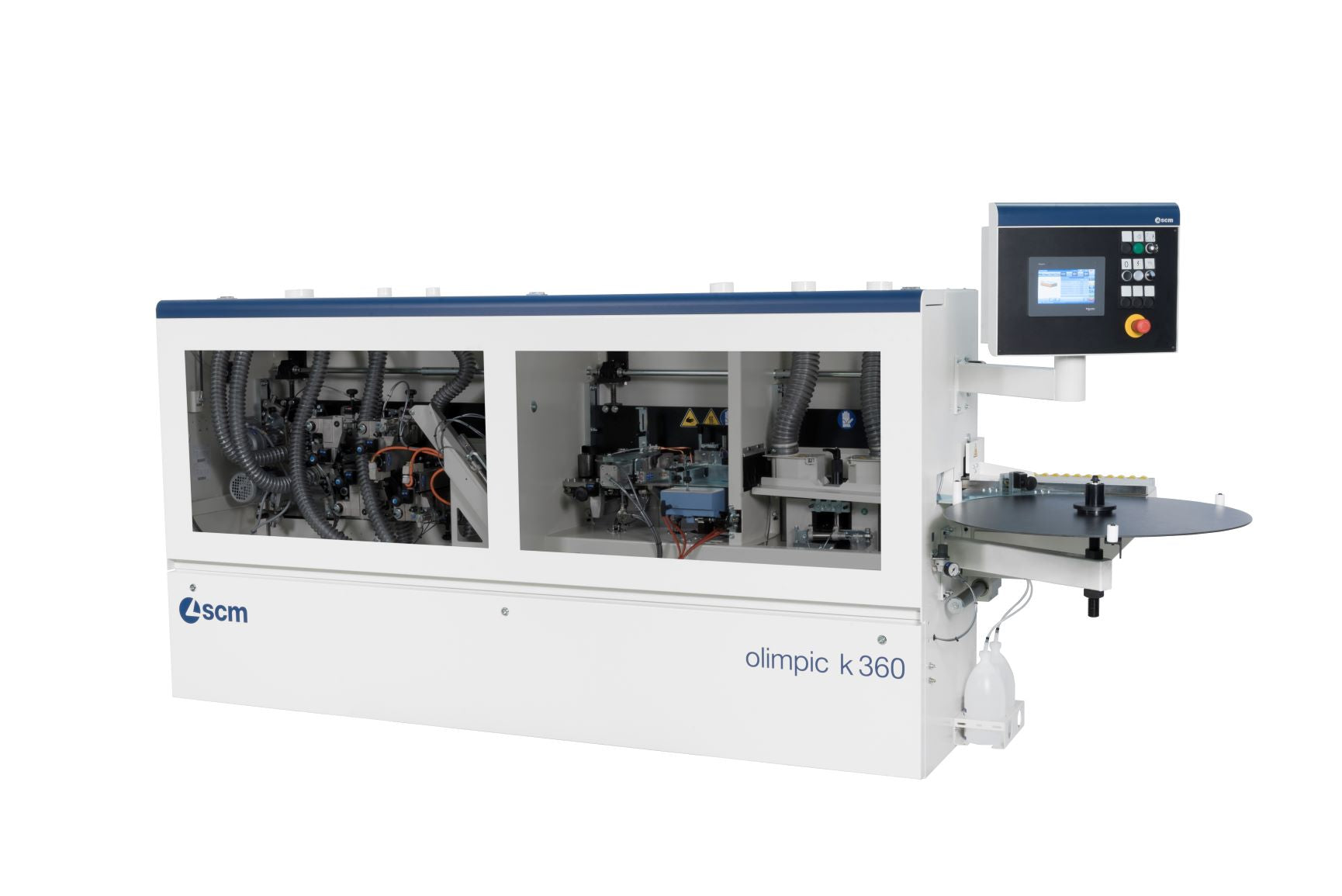

SCM Olimpic K360 Edgebander

by SCM
$0.00

Model

K 360E

(sgp) End Trim, T/B Trim, Profile Scrape, Glue Scrape, Buff

 K 360TE

(sgp) Premill, End Trim, T/B Trim, Profile Scrape, Glue Scrape, Buff

 K 360ERT-1

(sgp) Premill, End Trim, T/B Trim, Corner Rounding (1), Profile Scrape, Glue Scrape, Buff



K 360 Series

  • New Series of Machines
  • 6mm Capacity
  • 60mm Panel Thickness
  • 36 Feet Per Minute
  • Feed Chain


Versatility and high machining quality with the SCM olimpic k 360, the machine with the aim to be the new reference point in the market for entry level edge banders and complete with a rounding unit.
Compact and easy-to-use due to its advanced technological solutions designed to ensure optimal panel finishing. It is simply the perfect edge bander for companies who require continuous and high quality edge banding of panels even though they may be different from one to another.
The use of "multiedge" machining heads with electronic axes allows the machine to be set up automatically to machine panels with 2 different radii, solid wood and thin edges.

Advantages

Touch7 Controller

  • 7” Touch Screen
  • Capable of storing 60 programs
  • Standard on ALL Versions
  • Available in mm’s or inches
  • Available in 5 languages
  • Swivels and Tilts for easy viewing



End Trim Unit

• Two Motor End Trim Unit
• Dedicated THK Guides
• Radius Kit Standard
• Pneumatic Positioning from Control Panel
• Mounted to Machine Base
• 12,000rpm’s / .25hp Motors

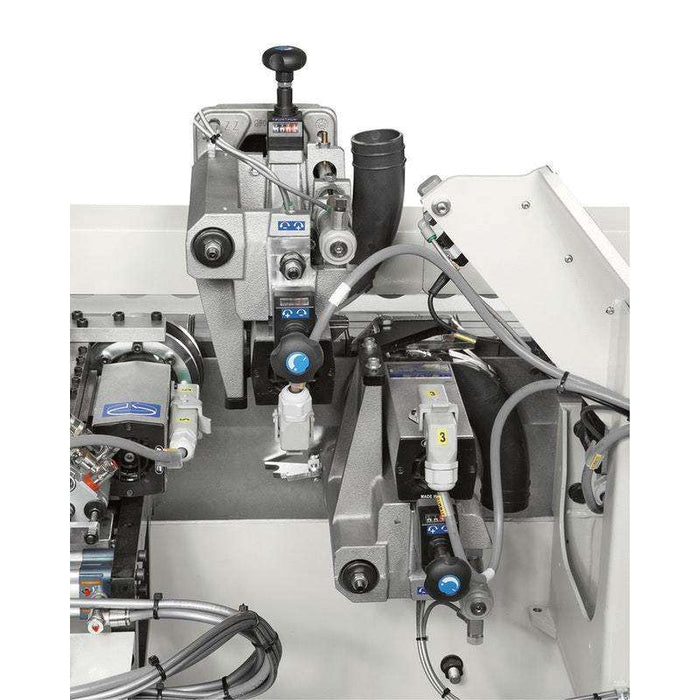

Top & Bottom


  • 3 Position Pneumatics to go from thin pvc, to 3mm, to solid wood, all through the controller
  • Heavier Top and Bottom Unit
  • Top/Bottom Copy Wheels, Side Copy Shoe
  • Quick Change / Disconnect motors

Corner Rounding



• Single Motor Unit
• Diamond Cutter standard
• 2 Position Pneumatics (3mm/thin tape)
• Maximum Panel Thickness 45mm
• Minimum Panel Length 280mm

Technical Data

Duty Cycle:

2-3 Hours of Production Per Day

Capacities / Feed Speeds / Panel Thickness:

6mm / 36 fpm / 60mm



Edge thickness mm 0,4 - 6
Panel thickness mm 8 - 60
Feed speed m / min 11
Compressed air bar 6
