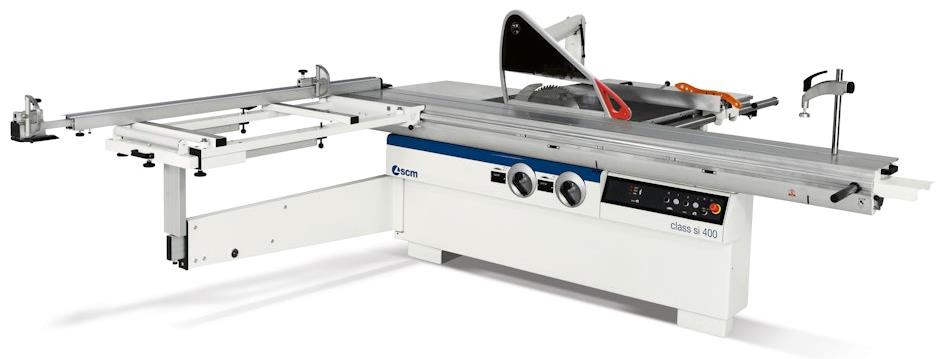

SCM Class SI 400 Sliding Table Saw, INCLUDES FREIGHT

The Class SI 400 is SCM’s high-performance sliding table saw, engineered for precision, durability, and heavy-duty cutting applications. Featuring an anodized aluminum alloy sliding carriage with SCM’s exclusive arch-ground hardened steel slideways, it ensures exceptional stability, four times higher load capacity, and a 10-year guarantee for long-lasting accuracy without the need for adjustments. Powered by an 11 HP three-phase motor (220V), the Class SI 400 supports a 400mm (15.69”) main blade alongside an independent 2 HP scoring unit, delivering clean, chip-free cuts with ease. Operators benefit from an intuitive cutting process with the SCM Thundercut app, optimizing cutting lists and guiding users through sequencing. The saw unit tilts from 90° to 45° and offers a maximum cutting height of 140mm (5.5”), while the squaring frame, telescopic fence, and outfeed table extensions provide enhanced versatility. With a 10.5’ squaring stroke and 50” cutting width, the Class SI 400 is the ideal solution for professionals demanding power, precision, and reliability in every cut.

**Freight Included**

STANDARD EQUIPMENT

• Sliding carriage
• The anodized aluminum alloy carriage will never require adjustment and thanks to its structure with arch-ground hardened steel slideways (SCM exclusive and patented solution) it can bear loads four times higher. Furthermore, the “arc” profile of the slideways ensures:
  • No play and no need for adjustments over time
  • Higher loading capacity
  • 10 years of SCM guarantee for the carriage sliding system.
• Optimizer/Sequencer App for Tablet: SCM Thundercut. Application to be downloaded from the App Store or Play Store on compatible tablets (mobile devices) equipped with iPadOS or Android operating systems. It can be activated using the QR code supplied with the machine. The App allows to:
  • Manage your machine stock and the material and panel magazine
  • Create and modify projects, import projects from the main furniture design software ("cpout" file format), import cutting lists
  • Optimize cutting lists, choosing from one or more proposals of the optimization software integrated into the App
  • Set the machine correctly for each cut to be made, thanks to the simple and intuitive graphics of the 3D sequencer that guides the operator at each step
  • Print labels with bar code to identify the various parts, thanks to the Bluetooth connection with compatible label printers
• Lifting and tilting of saw unit by handwheels on the machine front side, with mechanical readouts
• Independent powered scoring unit with external set up and stops for a quick repositioning of the blade
• Squaring frame on swinging arm support, with:
  • Fast fence positioning for angular cuttings
  • Idle roller to facilitate the panel loading/unloading
• Telescopic fence with 2 flip-over stops and imperial rule tilted towards the operator
  • ***Digital readouts not included as standard***
• Manual parallel fence with position readout on metric/imperial rule, sliding system on 50mm steel bar and micrometric adjustment
• Outfeed table extensions
• Eccentric clamp

TOOLING INCLUDED

• Main blade (option 57.04.17)
• Expandable scoring blade (option 53.03.40)
• Trimming shoe, push stick and push handle
• Toolbox: Wrenches, allen wrenches, user manual, spare parts catalog

SAFETY/PROTECTIONS

• Emergency pushbuttons located on the front machine side
• Direct start main motor with pushbuttons
• Overload protection
• Overhead saw guard with incorporated dust extraction, 100 mm outlet diameter
• Auxiliary low voltage circuit (110V)
• Automatic brake on main sawblade
• Main power switch can be locked in the off position with a padlock
• Blade access door with safety microswitch
• "CSA" rated electrical components, including cables
