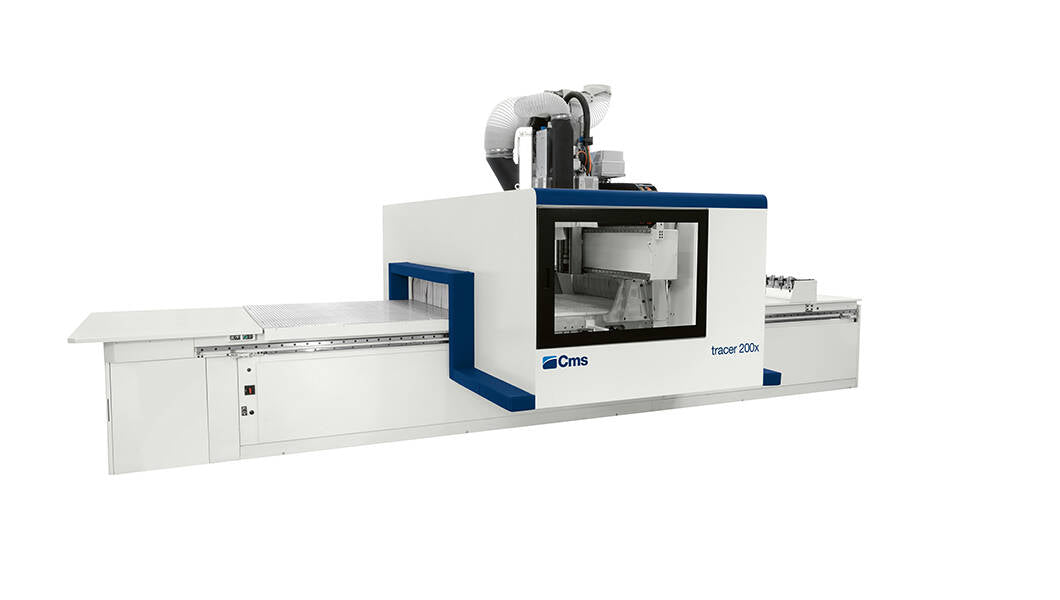

The CMS Tracer 200X/300X represents the next generation of 3-, 4-, and 5-axis CNC nesting centers for plastics and advanced materials. Available in standard and cell versions (with automatic loading/unloading belts), it delivers top-tier routing, drilling, and nesting capabilities. The machine combines a rigid mobile gantry structure with cutting-edge vacuum table technology and flexible tool magazine configurations, making it a powerful all-rounder for engineering parts, thermoformed components, or nested sheets.
-
All-in-one machining for plastics & advanced materials — From nesting to technical parts, the Tracer 200X/300X supports a wide spectrum of production needs with flexible configuration options.
-
Maximum clamping flexibility and stability — The dynamic X-Vacuum system ensures strong hold even for small or uneven parts; for workpieces where vacuum is insufficient, optional presser rollers deliver secure clamping without affecting performance.
-
High efficiency and fast cycles — Equipped with a 14-station FAST tool magazine in the mobile cabin, tool changes take less than 15 seconds, and overall work cycles are ~9% faster on average.
-
Space-optimized footprint — “PRO-SPEED” and “PRO-SPACE” protection configurations allow for reduced encumbrance and easier material handling.
| Parameter | Tracer 200X | Tracer 300X |
|---|---|---|
| X-Y vectorial speed (“PRO-SPACE” / “PRO-SPEED”) | 84 / 113 m/min | 84 / 113 m/min |
| Z axis panel passage | 150 mm | 180 mm |
| Routing unit (max) | up to 15 kW (20.5 hp) (3–4 axis) | up to 15 kW (20.5 hp) (3–4 axis) |
| Routing spindle max speed | 2400 rpm | |
| Tool changer capacity | up to 38 (200X) / 53 (300X) tools | |
| Vertical drilling spindles (max) | 21 | |
| Horizontal spindles (max) | 12 | |
| Integrated X-axis blade diameter | 125 mm | |
| Exhaust air consumption / outlet | 4430 m³/h ; outlet 250 mm |
