Turntables & Turntable Lifts

$0.00
SKU

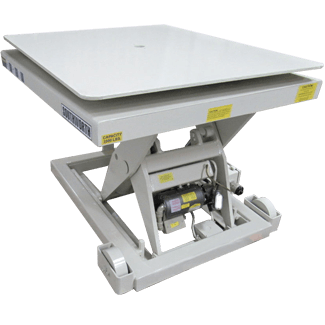

Flush-mount Turntable Lifts

These lifts feature a built-in turntable that is essentially flush to the table platform in a clean, uncluttered design. The turntable bearings and support are under the platform and do not substantially increase the lowered height over that of comparable lifts without turntables. The turntable sits only 3/16" higher than the surrounding platform and is rotation-ally locked when the lift is in the full down position. Flush Mount turntable lifts are available in standard Southworth Backsaver Lift capacities to 4000 lbs. Turntables are available in 2 sizes; 20" and 43" diameter and are fitted into a limited number of platform sizes. The 43" diameter model can even be pit mounted when toe protection is added.

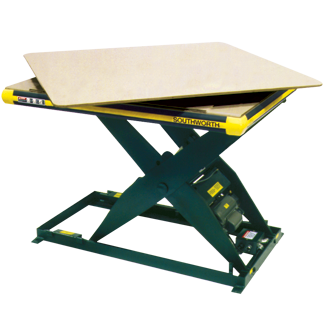

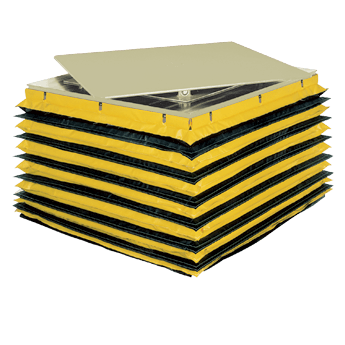

Conventional Turntables

Any Southworth Lift Table can be fitted with a turntable top to improve worker productivity and make accessing loads easier. Workers can manually spin the load so they are always working on the near side without having to walk around. Our industrial turntables include a rotating 1/2: thick platform with radiused corners, base plate, center shaft with bearing and inverted ball roller bearing assemblies. Capacities of up to 6000 pounds can be handled. In addition to being mounted on lift tables, Southworth industrial turntables can also be mounted to the floor or on fixed height platform.

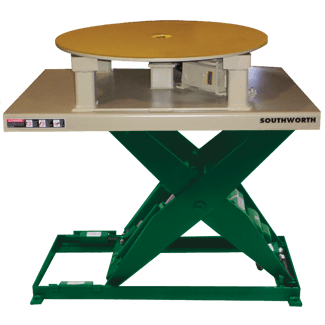

Powered Turntables

Southworth Powered Industrial Turntables are designed to the application and are available in a full range of capacities up to 6000 pounds and platform sizes up to 60" x 60". They included a 1/2" thick solid steel platform, oversized center pin and lubricated for life center pin bushing. Rotation speeds range from 1.5 RPM to 2.0 RPM. They feature a lowered height of only 9". Standard Voltage is 115/1/60.

Like our conventional (manual) turntables, powered industrial turntables can be mounted to a lift table, fixed height platform or the floor.

Features

  • Conventional, Flush mount or Powered Turntables
  • Conventional and Powered Turntables can be Mounted on Most Southworth Lifts
  • Flush mount Turntable Lifts Available in 2500 and 4000 Lb. Capacities
  • Turntables Made from 1/2" Steel Plate

Technical Data

Flush-mount Turntable Lifts

Model
Number
Load
Capacity
Raised
Height
Low
Height
Platform
Size
Turntable
Diameter
Motor
HP
Voltage/
Phase/HZ
Shipping
Weight
Budget Range
LS2.5-36-4848FMTT 2000 lbs 43.875" 7.625" 48" x 48" 43" 1 115/1/60 1200 lbs
LS4-36-4848FMTT 3500 lbs 43.875" 7.875" 48" x 48" 43" 1 115/1/60 1300 lbs $5600 - $6000



Conventional Turntables

Turntable Platform Base Plate Shipping Weight
24" x 24" 24" x 24" 175 lbs
24" x 36" 24" x 24" 200 lbs
24" x 48" 24" x 24" 250 lbs
36" x 36" 30" x 30" 300 lbs
36" x 42" 30" x 30" 325 lbs
36" x 48" 30" x 30" 350 lbs
42" x 42" 30" x 30" 375 lbs
42" x 48" 30" x 30" 425 lbs
48" x 48" 30" x 30" 500 lbs
48" x 56" 36" x 36" 550 lbs



Powered Turntables

Model Turntable Platform Capacity Turntable Speed Shipping Weight
36-2000P 36" x 36" 2000 lbs 2.0 RPM 300 lbs
36-4000P 36" x 36" 4000 lbs 2.0 RPM 300 lbs
36-6000P 36" x 36" 6000 lbs 1.5 RPM 300 lbs
48-2000P 48" x 48" 2000 lbs 2.0 RPM 600 lbs
48-4000P 30" x 30" 4000 lbs 2.0 RPM 600 lbs
48-4000P 30" x 30" 6000 lbs 1.5 RPM 600 lbs
60-2000P 30" x 30" 2000 lbs 2.0RPM  800 lbs
60-4000P 30" x 30" 4000 lbs 2.0 RPM 800 lbs
60-6000P 30" x 30" 6000 lbs 1.5 RPM 800 lbs
