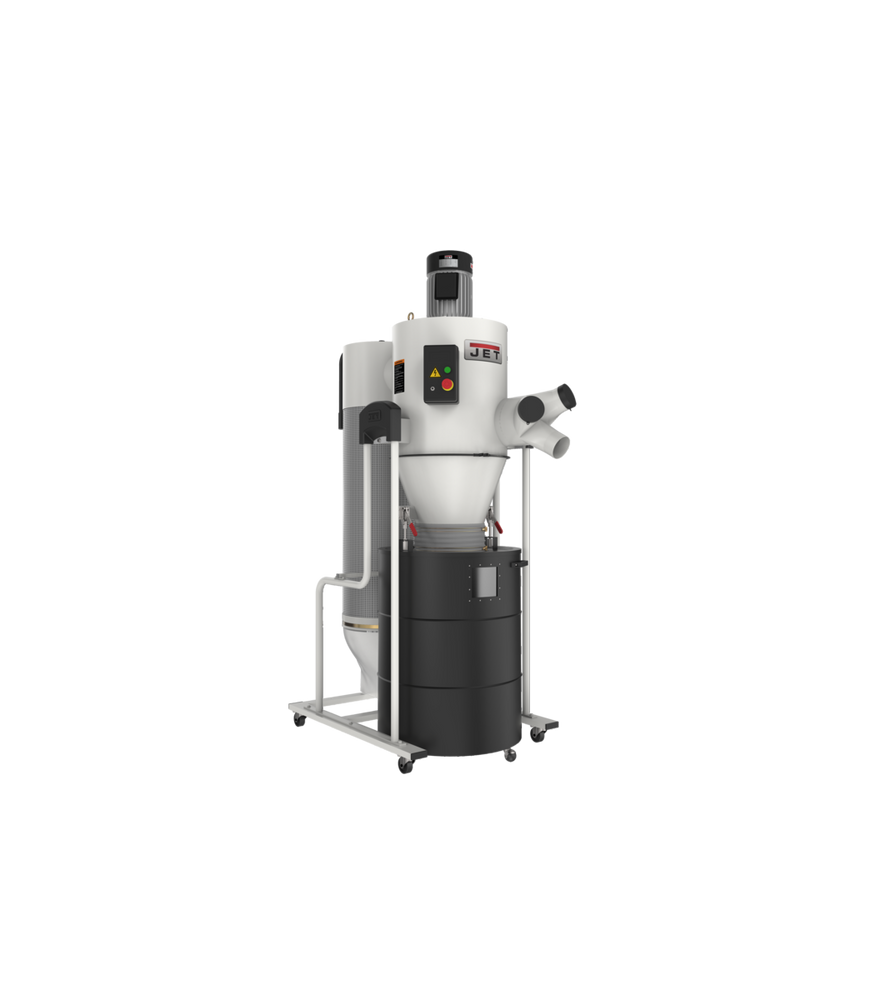

JET | JCDC-3 Cyclone Dust Collector Kit, 3HP, 230V

by Jet
$2,649.99
SKU 717530K
  • The cyclone's two stage separation provides more working CFM than comparable horsepower single stage units
  • Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
  • Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
  • Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
  • Heavy debris is captured in a 66 gallon drum with quick release levers and independent casters for quick emptying
  • Included radio frequency remote control works from up to 50 feet away
  • Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff
  • Double paddle manual cleaning system quickly cleans the pleated filter
  • Swivel casters make it easy to move the unit around the shop
Height38.560
Length54.700
Gross Weight301.000
Net Weight242.000
Volume36.777
Width30.130
Ready For Web (US)Yes
Prop 65Cancer and Reproductive Harm
Style (Type)#N/A
Prewired Voltage (V.)230
Motor Power (HP)3
1-Hose Connection Diameter (In.)8
Collection Bag Length (In.)#N/A
Filter Efficiency (Micron)1
Filter Bag/Canister Length (In.)#N/A
Impeller Diameter (In.)15
Motor Voltage (V.)230
3-Hoses Connection Diameter (In.)4
Recommended Circuit Size (Amps.)20A
Impeller FinsRadial
Motor Phase (PH)1
Collection Bag Capacity (Cu. Ft.)#N/A
Impeller MaterialSteel
Number of Air Inlets1 at 6, 2 at 4
Wiring Remarks#N/A
Sound Rating (Db.)76
Bag Diameter (In.)#N/A
2-Hoses Connection Diameter (In.)#N/A
Motor Amps13
Collection Drum Capacity (gal.)55
Max. Static Pressure (Wc.)#N/A
Drum Collection Bag (Dia. x L/In.)38-9/16 x 47-1/4
Canister Collection Bag (Dia. x L/In.)23-5/8 x 19-11/16
Canister Filter Diameter (In.)14-9/16
Canister Filter Length (In.)38-3/8
Assembled Dimensions (L x W x H/In.)30-7/16 x 57 x 88
Footprint (L x W/In.)57 x 30-7/16
Motor Speed (RPM)3,450
Efficiency (Micron)99% of 2 micron particles
MERV Value13
Air Flow (US Method) @ 4 (CFM)#N/A
Air Flow (US Method) @ 6 (CFM)#N/A
Air Flow (US Method) @ 8 (CFM)1,240 (2,102 m³/hr)
Air Flow (EU Method) @ 4 (CFM)#N/A
Air Flow (EU Method) @ 6 (CFM)#N/A
Air Flow (EU Method) @ 8 (CFM)1,963 (3,327 m³/hr)
Air Velocity (US Method) @ 4 (FPM)#N/A
Air Velocity (US Method) @ 6 (FPM)#N/A
Air Velocity (US Method) @ 8 (FPM)3,542 (18.0 m/s)
Air Velocity (EU Method) @ 4 (FPM)#N/A
