4 Head Laser - Acoustical Panels

$0.00
SKU

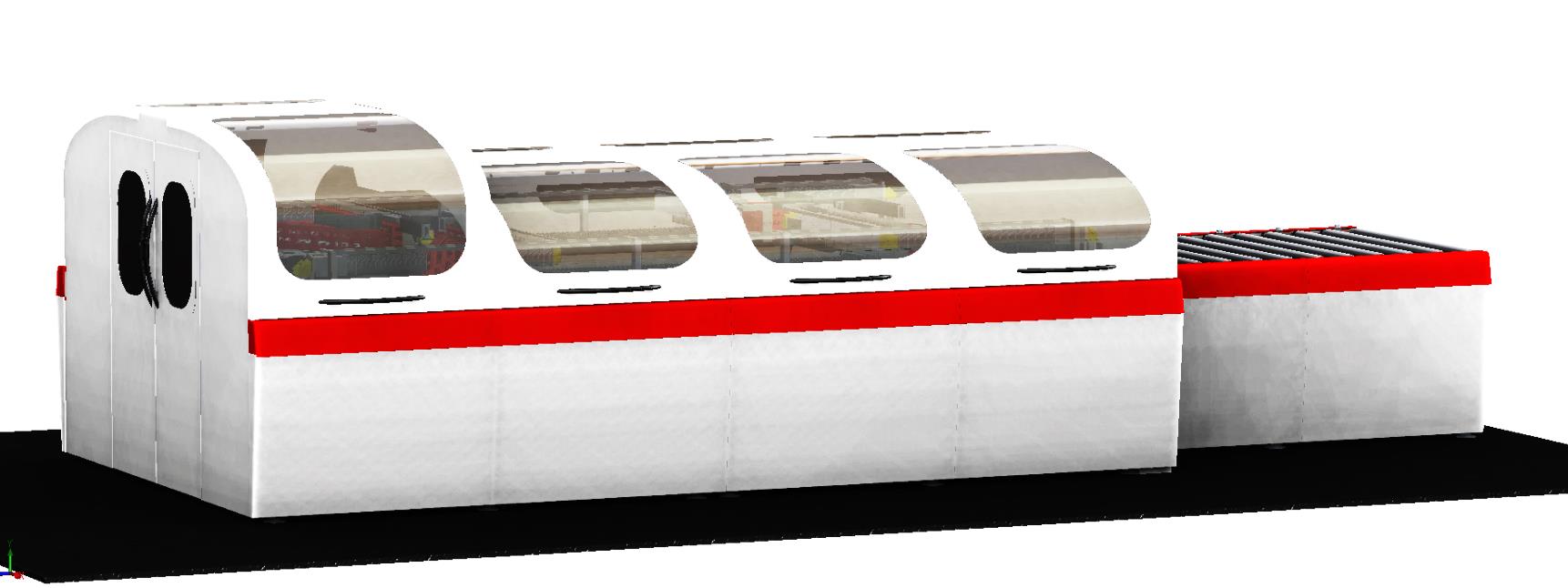

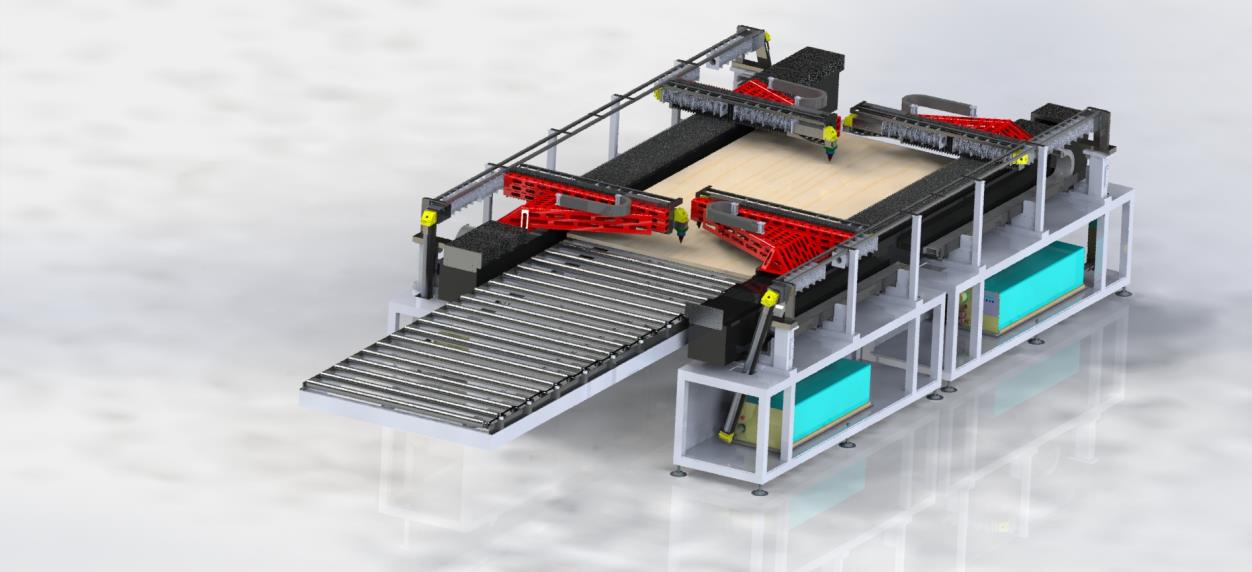

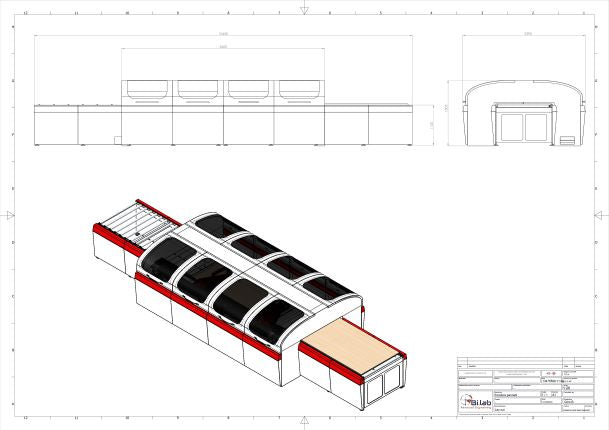

Laser system for micro-perforated acoustical panels. The system is based on 4 processing laser heads working simultaneously in order to maximize the production rate at the state of the art quality. The process can be performed on already finished panels as well as raw material. The ability of the systems to perform micro holes at outstanding speed and maximum consistency of the opto-acoustic performances makes the Acoustic Laser Panel system unique on the worldwide market. Optional feed through version.

Performance reference (on an industry standard pattern):
1. Holes pattern matrix: 2x2mm
2. Holes diameter: 0.4mm
3. Holes quantity on the 1,500mm side: 750
4. Holes quantity on the 3,000mm side: 1,500
5. Total holes quantity per panel: 1.125,000 (on nominal dimensions)
6. Holes quantity on the 3.000mm side: 1.500
7. Holes quantity on the 3.000mm side: 1.500
8. Total holes quantity per panel: 1.125,000 (on nominal dimensions)
9. Total perforation time per panel:
a. four lasers EL.EN. Blade RF899 version: 9.8min

Technical specification:
1. Max panel dimensions: 1.550 x 3.100mm (nominal 1.500 x 3.000mm)
2. Min dimensions 300 x 500mm
3. Range of the holes diameters 0.3-0.6mm
4. Open pattern design via DXF files import (performances based on design)
5. Range of panel thickness 2-30mm
6. Installed power 65kW@ 400VAC 50-60Hz
7. Compressed air filtered and free of oil and moisture
