Used 2018 SCM Olimpic K360

Used 2018 SCM Olimpic K360

by SCM
$15,000.00
Payment Calculator
Financing Request
SKU WSI-USED-SCMK360

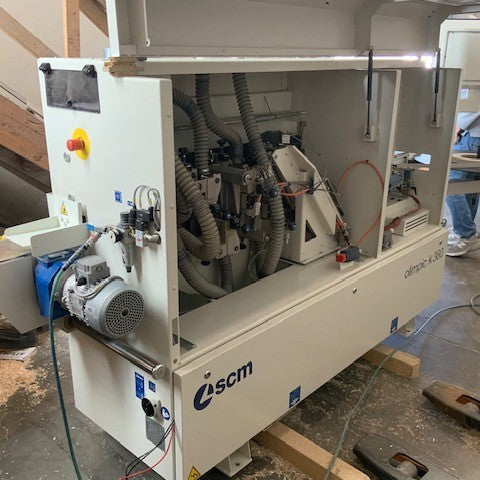

2018 SCM Olimpic K360 Edgebander

Manufacturer: SCM
Model: Olimpic K360
Year: 2018

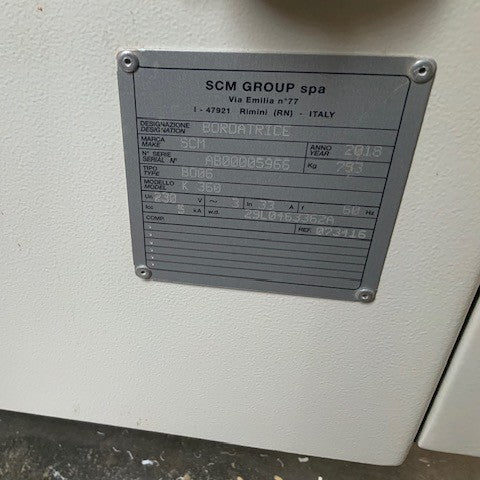

Serial Number: AH00035956
Origin: Italy
Electrical: 3 Phase
Condition: Used

Technical Overview:

  • Panel thickness capacity: approx. 8–60 mm
  • Edge thickness capacity: up to 6 mm
  • Feed speed: approx. 11 m/min
  • Glue pot system
  • End trimming
  • Top and bottom trimming
  • Scraping and buffing stations

General Description:
Compact single-sided edgebander designed for small to mid-scale production environments. The K360 series is positioned as an entry-to-mid level automated edgebanding solution with integrated finishing units for consistent edge quality.

FOB: Las Vegas, NV. Loading to flatbed only,

Note: Freshly gone through and ready to go in good working order



  • 4-MAT Single Setup: Allows for complete processing of workpieces, including edge routing on all four sides.
  • Advanced Suction System: Utilizes a computer-controlled vacuum clamping system to secure workpieces safely without scratching.
  • Automatic Multi-Position Tool Changer: Speeds up cycle times by switching profiles fluidly.
  • Integrated Units: Features specialized drilling, sawing, and grooving equipment to handle diverse cutting needs.
  • Versatile Application: Ideally suited for constructing drawers, body parts, furniture fronts, and rear walls.
Parameter Specification
Panel Thickness Capacity 8 – 60 mm (3/8" to 2-1/2")
Edge Thickness Capacity (Strips) 0.4 – 6 mm (up to 1/4")
Edge Thickness Capacity (Coils) 0.3 – 3 mm
Feed Track Speed 11 m/min (~36 feet per minute)
Minimum Panel Length 140 mm
Minimum Panel Width 100 mm
Glue Pot Capacity 1.5 kg
Compressed Air Requirement 6 bar
Machine Weight Approx. 937 kg
Machine Length Approx. 3,395 mm
