Description

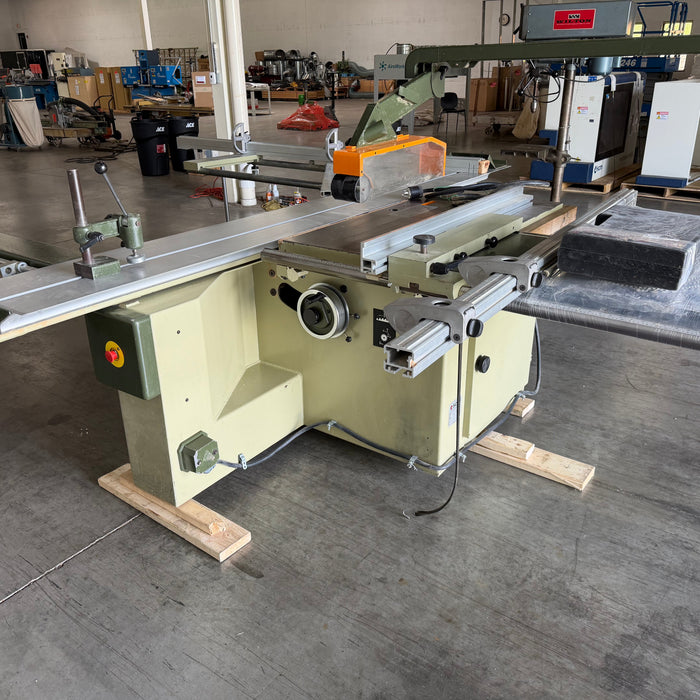

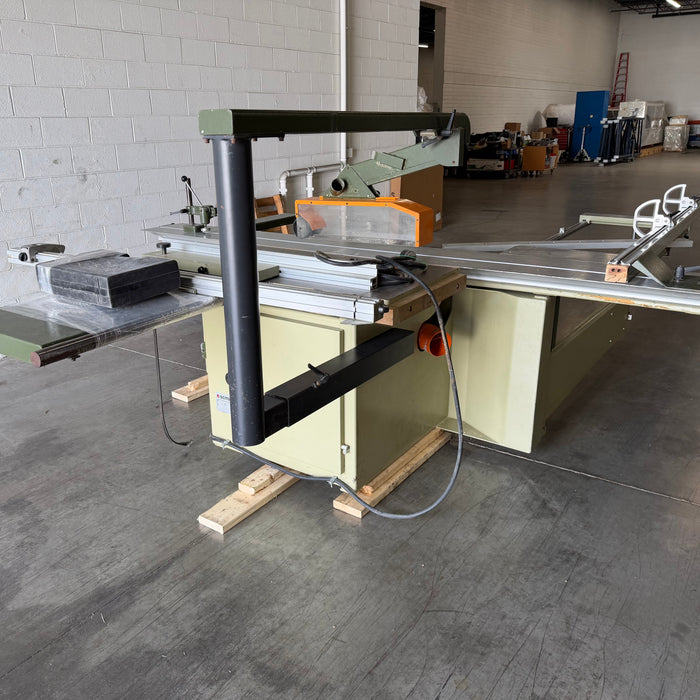

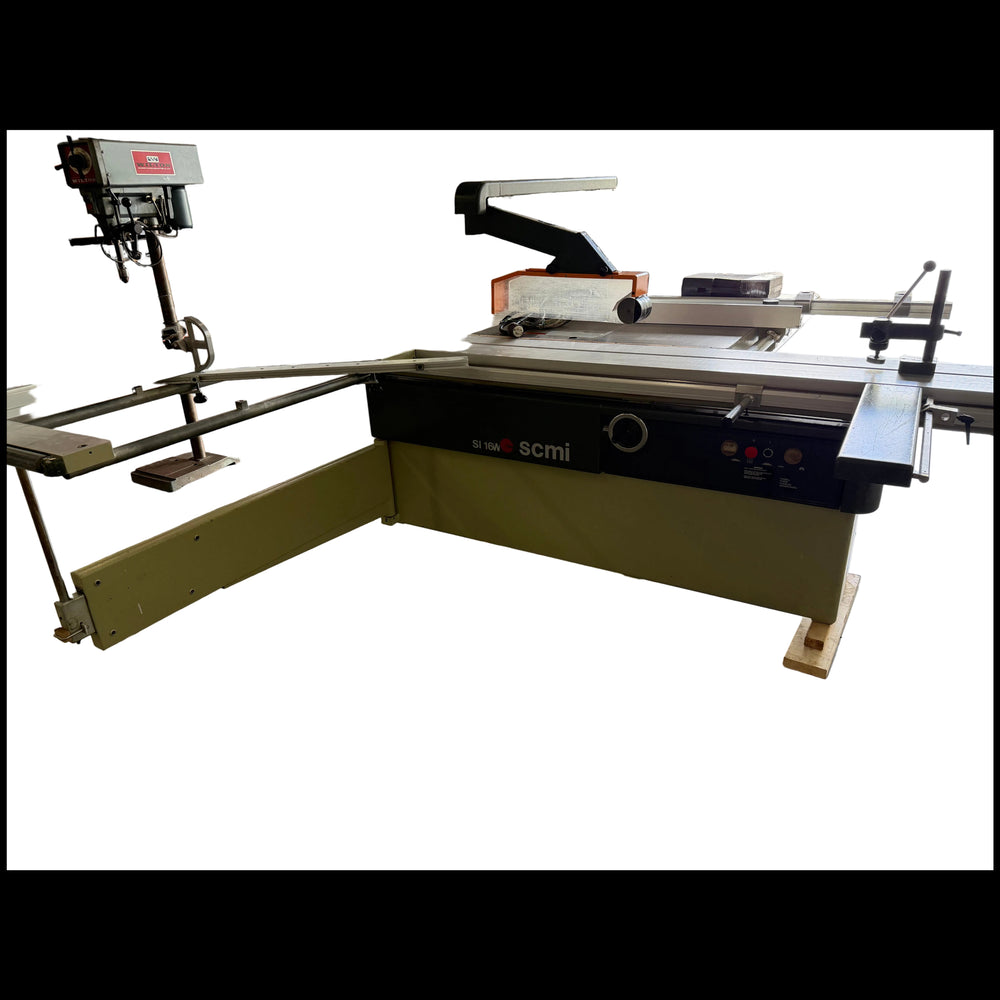

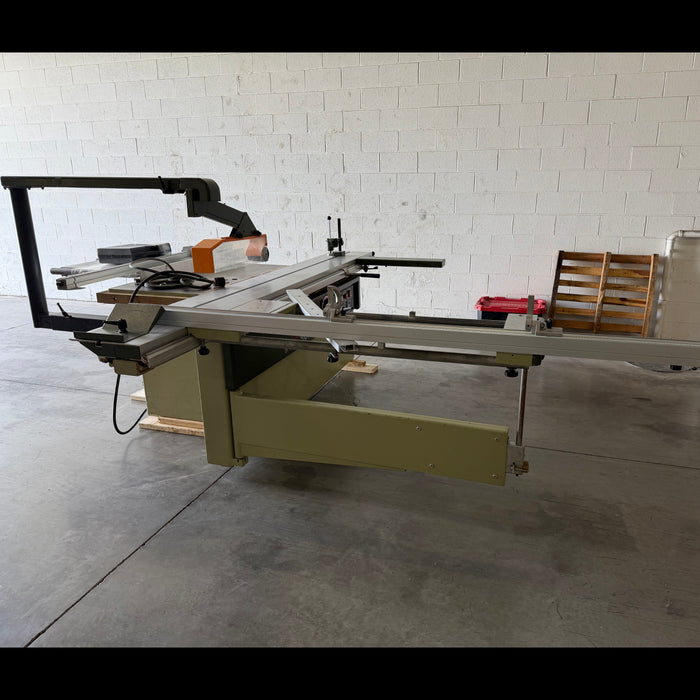

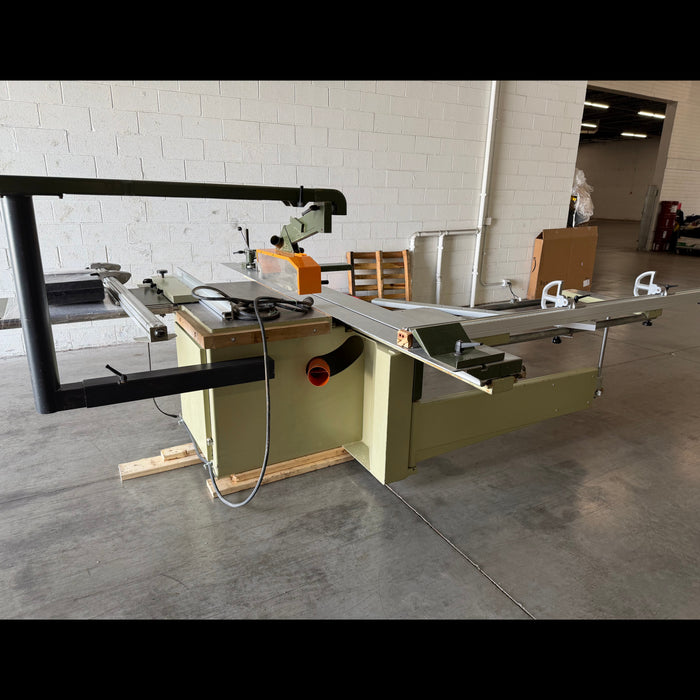

An industrial-grade panel processing center explicitly designed for large-scale architectural millwork and high-output commercial cabinet shops. Built on a massive, heavy-gauge steel frame with a precision-ground cast-iron main table, this machine eliminates the physical strains of handling heavy sheet goods by moving the material entirely on an effortless, extruded aluminum sliding table mechanism. It integrates advanced electronic controls with dual operating stations, giving operators safe control over power, safety stops, and motorized adjustments from both the slider side and the rip fence side of the machine.
Location
FOB Ixonia, WI
Condition
Used — good operating condition.
Scoring unit functions properly. Bearings and slides move smoothly.
Normal wear consistent with age; ready to work.
- Programmable CNC Rip Fence: Eliminates manual lock-and-lever adjustments. The motorized rip fence travels dynamically along heavy linear guides to precise input values logged on the digital controller.
- Integrated Digital Control Console (DRO): A raised, overhead control center displays real-time tracking metrics for automated fence distance adjustments, electronic blade vertical height changes, and motorized blade angle tiling.
- Dedicated Anti-Tearout Scoring System: The independent 1 HP scoring motor operates an inversely-spinning small blade that pre-scores laminate, melamine, and delicate veneers, guaranteeing perfectly crisp edges with no underside tear-out.

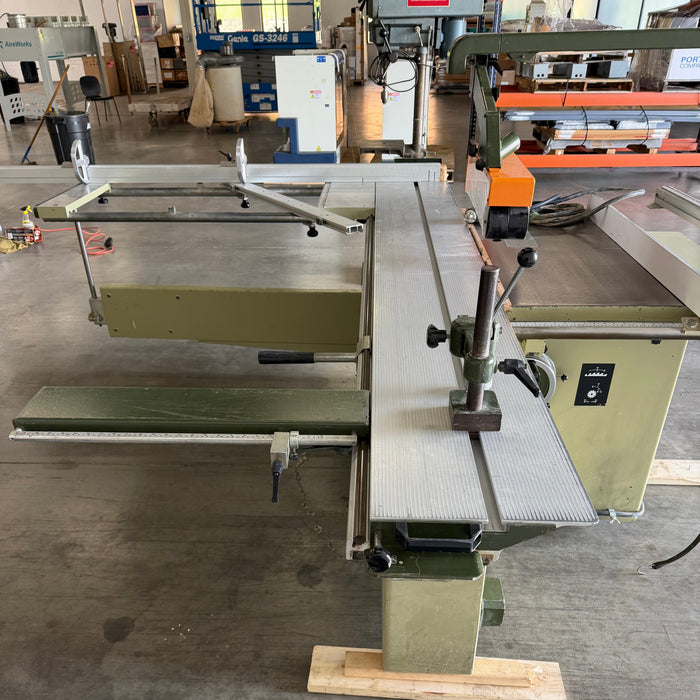

- Precision Slider Rails: The wide sliding aluminum table rides smoothly along an advanced vertical guide rail layout utilizing high-precision bearing rollers, providing zero-play tracking over hundreds of thousands of repetitions.
- Heavy-Duty Miter Extension & Cross-Slide Table: Outfitted with an eccentric clamping system to anchor large stock securely, paired with an adjustable miter crosscutting fence that pivots 30° left to 45° right with dual integrated flip-stops for batch piece production.
- Enclosed Overarm Guard: The transparent orange hood mounts directly onto an overarm assembly featuring built-in dust collection ports, maximizing downward suction directly over the main blade while protecting the technician's hands
| Component / Parameter | Engineering Specification |
|---|---|
| Main Motor Type | 10 HP, 3-Phase, 220V/440V (Prewired 220V), 26A/13A |
| Scoring Motor Type | 1 HP, Dedicated Motor |
| Main Blade Diameter | Accepts 12" and 14" industrial circular blades |
| Main Blade Arbor Diameter | 1 inch |
| Main Blade Speeds | Three selectable pulley configurations: 3000, 4000, and 5000 RPM |
| Scoring Blade Specs | 4-3/4" (120mm) Diameter / 8000 RPM Speed (22mm Arbor) |
| Max Depth of Cut | 4 inches at a straight 90° angle; 2-3/4 inches when tilted to 45° |
| Motorized Blade Tilt | Precise 0° to 45° adjustable range |
| Max Rip Capacity | 51-1/4 inches with the motorized rip fence fully extended |
| Max Crosscut Capacity | 134" W x 121" L full sheet sliding capability |
| Main Table Footprint | 59" x 68" fully assembled with original cast extensions |
| Dust Collection Interfaces | Dual collection ports: 1 x 4" upper port and 1 x 5" lower chassis port |
| Total Net Machine Weight | Approximately 1,890 lbs (Requires a forklift to position safely) |
