Used Wilton Drill Press

Used Wilton Drill Press

by WSI Machinery
Sold out
$450.00
SKU

  • Manufacturer: Wilton Corporation (Machinery Division, Schiller Park, Illinois)

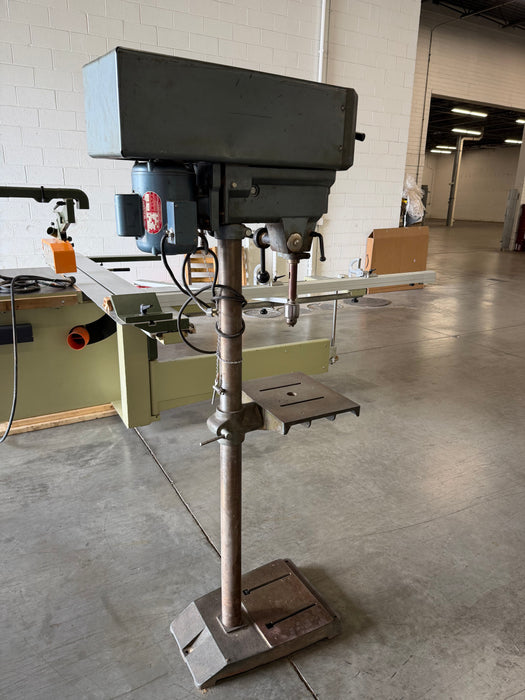

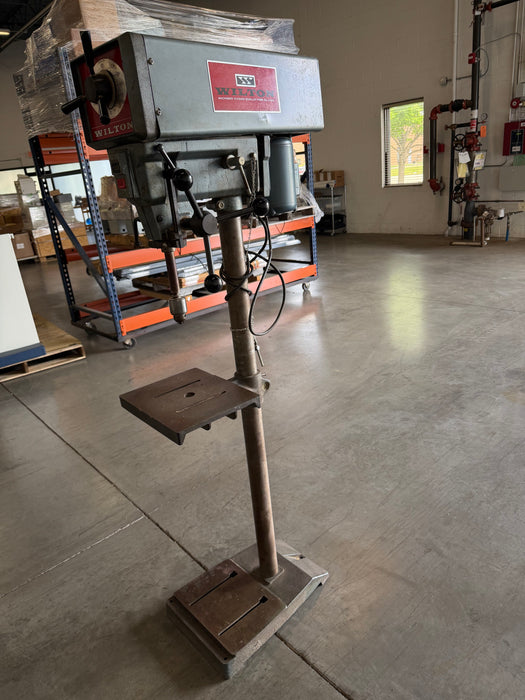

  • Type: Industrial Floor-Standing Pedestal Drill Press

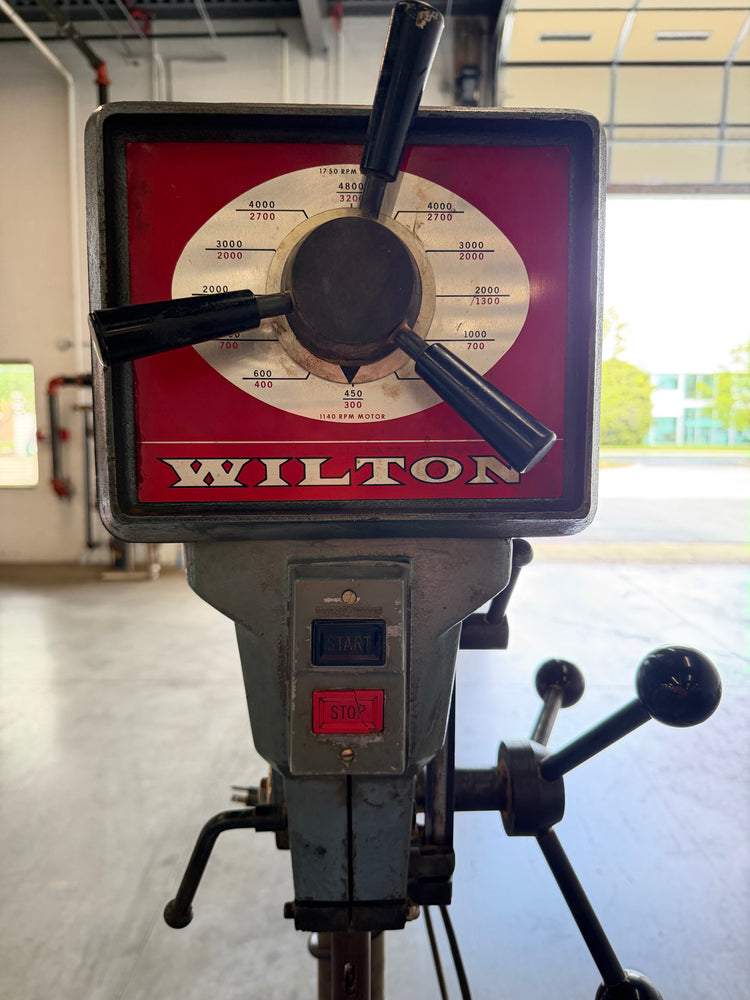

  • Drive Mechanism: Mechanical "Vari-Speed" Vari-Disk pulley drive. This system allows operators to alter the spindle speed dynamically using the front dial lever while the motor is actively running, completely bypassing the need for manual belt swaps.
  • Speed Range: 450 RPM to 4,800 RPM (when paired with a standard 1,750 RPM motor).

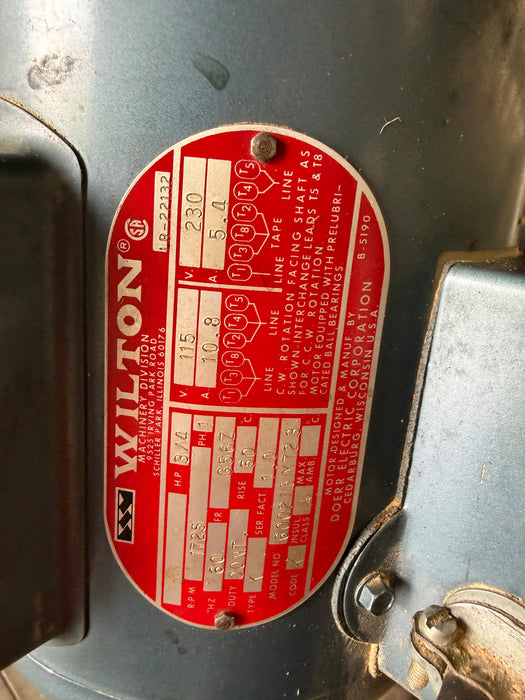

  • Motor Specifications: Driven by a premium vintage heavy-duty Doerr Electric Corporation motor configured with the following characteristics:
    • Horsepower: 3/4 HP
    • Electrical Phase: Single Phase (1 PH)
    • Voltage Compatibility: Dual-voltage capability operating at 115V (drawing 10.8 Amps) or 230V (drawing 5.4 Amps).
    • Base Frequency & Speed: 60 Hz running at 1,725 RPM.
  • Structural Highlights: Heavy-duty cast iron square head assembly, an adjustable rectangular production work table, an integrated front-facing analog speed selector dial, and a rigid floor-mount column base plate
