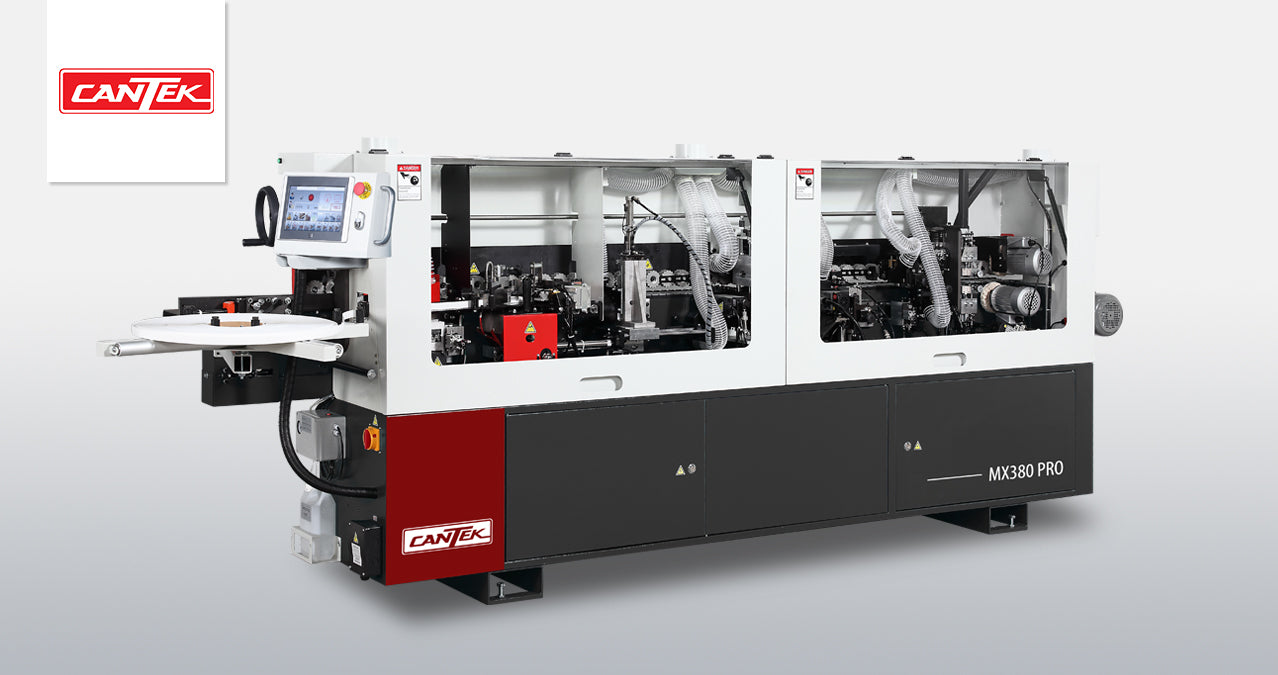

CANTEK | MX380 PRO AUTOMATIC EDGEBANDER

Sold out
$53,600.00
SKU

Why Cantek MX380PRO Edgebander?

  • Rapid application: The MX380 PRO can apply different thickness of edge banding to your projects with rapid changeover speed allowing for optimal production output with a superior finish time and time again.
  • Precision accuracy: With its advanced trimming systems, the MX380 PRO ensures that your edge banding is machines precisely time and time again.
  • Easy operation: The MX380 PRO’s intuitive touch screen interface makes it easy for anyone to operate, regardless of skill level or experience.
  • Durable construction: This machine is built to last, with sturdy components that can withstand the rigors of daily use.

Touch Screen Interface

  • State of the art touch screen interface allows the operator to control various machine functions.
  • Change from flush trim, to chamfer, to radius trim right from the control panel.
  • On screen error diagnostics.
  • Temperature setting with automatic temperature lowering.

What is the MX380 PRO?

  • Three position pneumatic RAPID changeover from 0.5mm, to 1mm, to 2mm edge right from the control panel! Changing between edges has never been easier.
  • Once set up for wood edge, thin tape, and radius edge you simply need to select the appropriate icon on the control panel for immediate recall. No more manual setting for those edges!
  • Multi-radius scrapers allow operator to apply a 1mm or 2mm radius on the top & bottom of the panel.
  • Additional quick change corner rounding motor for fast changeover from 1mm to 2mm radius on the ends.

Additional Key Machine Features

  • Automatic edge feeding with a thickness capacity of 0.4–2 mm; strip material can be hand-fed.

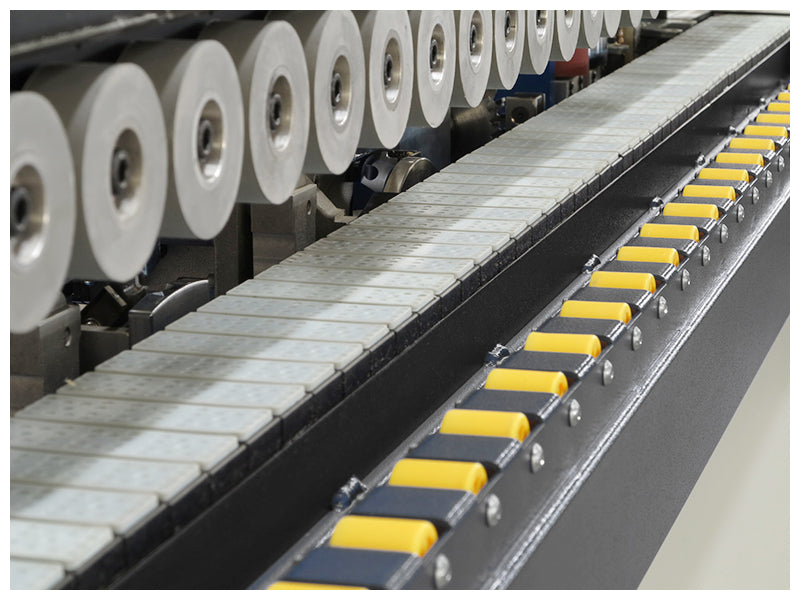

  • Conveyor chain feed system for reliable results.

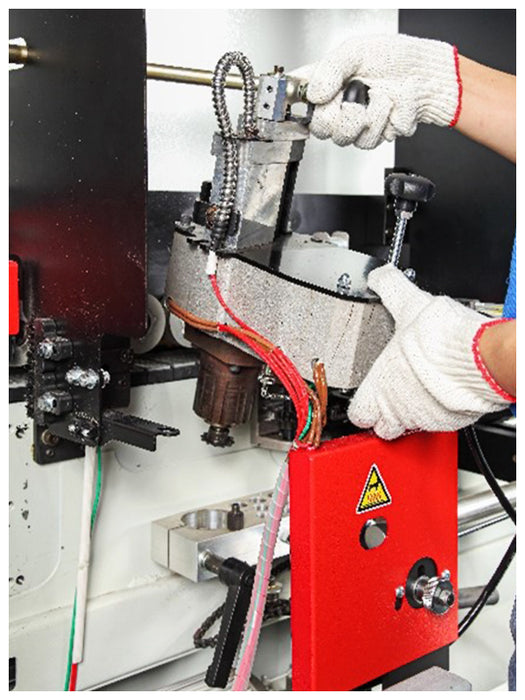

  • Teflon-coated quick change hot-melt glue pot.
  • Heated infeed fence for pre-heating the panel for optimum glue penetration.
  • 29 FPM feed rate (9 m/min)
  • Workpiece is fed by chain.
  • Edge coil support plate: Ø 800mm (31 ½”) for PVC/ABS.

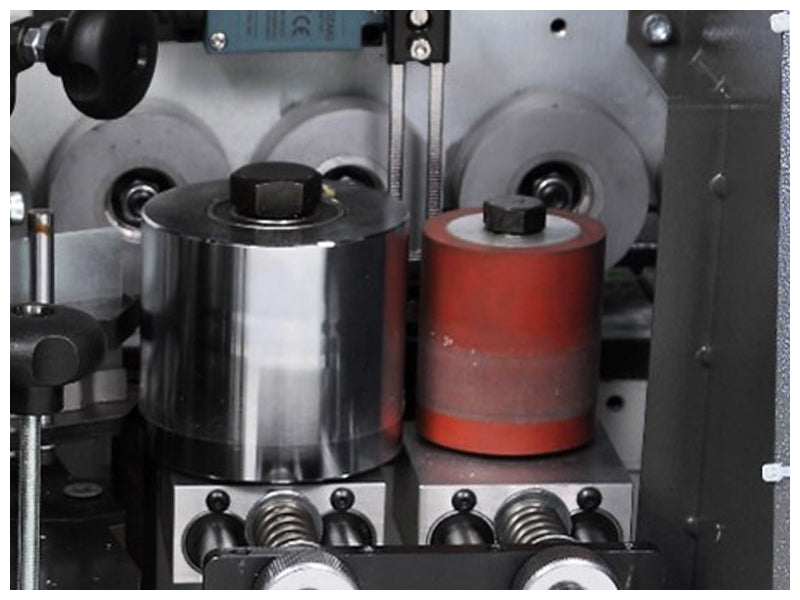

  • Spring-loaded pressure unit with (2) pressure rollers.
  • Heavy-duty pressure beam with extendable workpiece support.

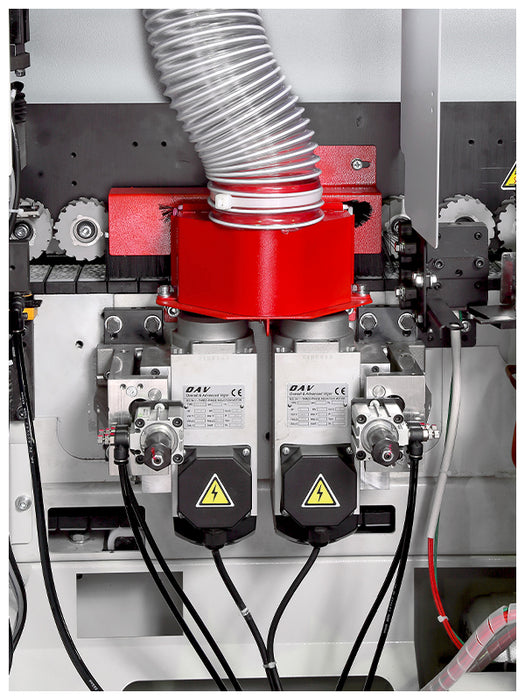

PREMILLING UNIT
(2) counter-rotating diamond cutterheads for removing up to 2mm of the panel edge to produce an optimum edge for applying the edge tape. This is designed to clean up edges that are poorly machined.

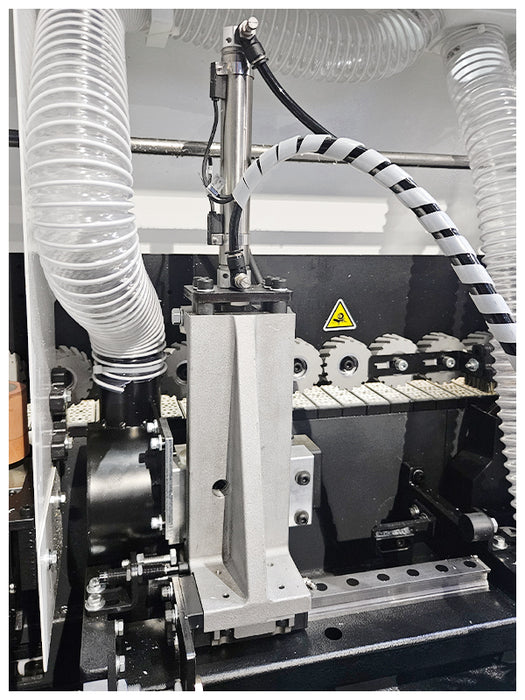

END TRIMMING UNIT
The end trim system is a single motor with (2) saw blades.  The unit is mounted on high-precision linear guide rails, ensuring perfect cutting results for years to come. The high-frequency 12000 RPM motor meets any challenge regardless of edge type and thickness.

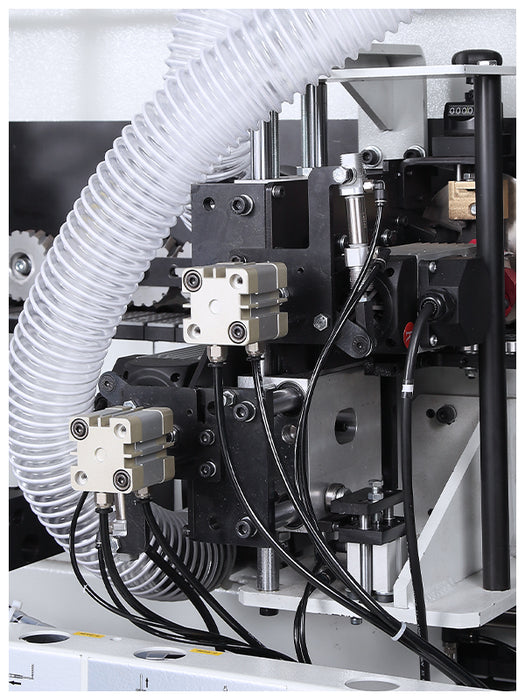

RAPID SETTING TOP & BOTTOM TRIMMING UNITS
Equipped with (2) high-frequency motors for top & bottom trimming of the panel.  The RAPID adjustment system uses a pneumatic 3-position adjustment to quickly change from 0.5mm, to 1mm, to 2mm edgebanding.

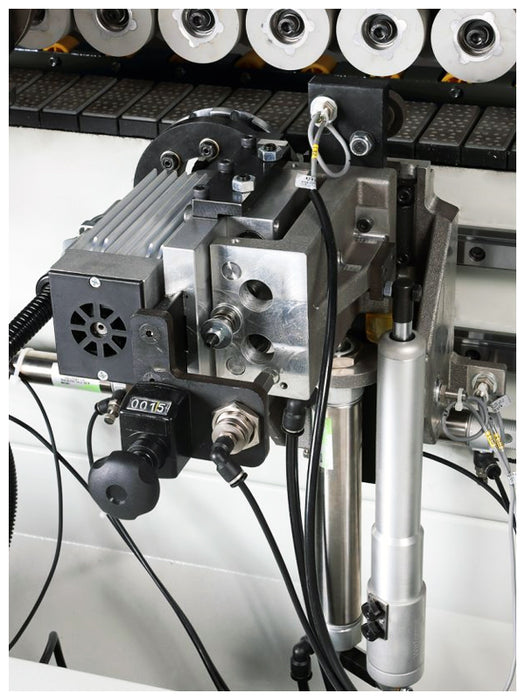

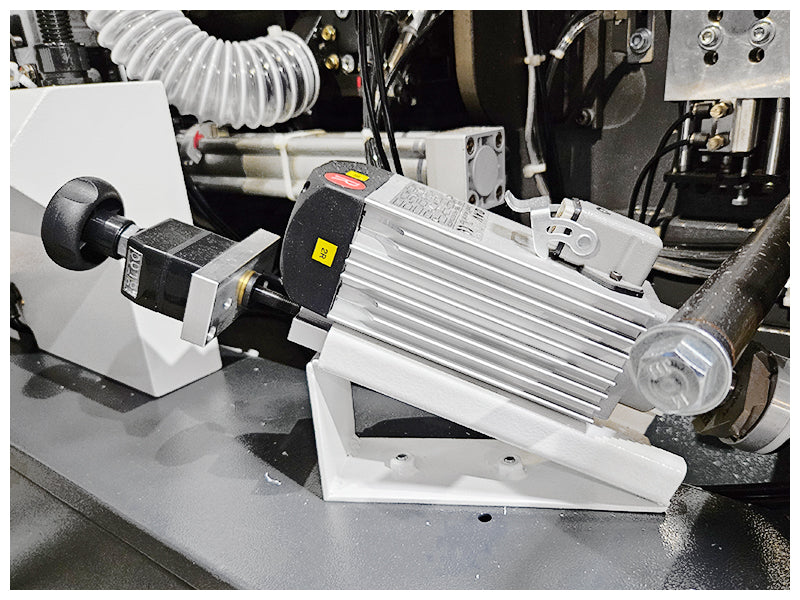

CORNER ROUNDING UNIT
Completes the finishing of the ends of the workpiece when applying edges that require a radius end. Two high-frequency motors are provided for R1: 1mm and R2: 2mm radius edge. A quick-change feature allows the operator to rapidly change between each motor according to the edge being processed.

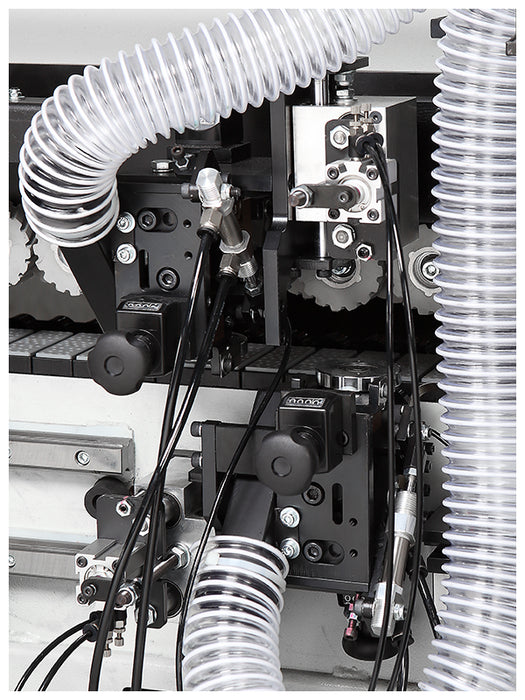

MULTI-RADIUS PROFILE SCRAPING UNIT
The radius scraping unit fine-tunes the edge radius while removing knife marks during the milling process on radius edging. The dual radius system allows the operator to apply a 1mm or 2mm radius and is selected automatically from the control panel without need for manual adjustment.

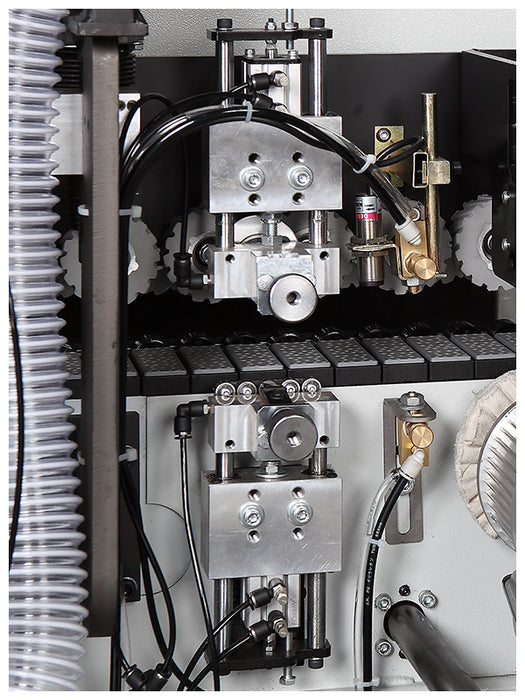

FLAT/GLUE SCRAPING
Flat insert knives designed to remove any excess glue which remains on the surface of the panel after applying the edge due to squeeze out.

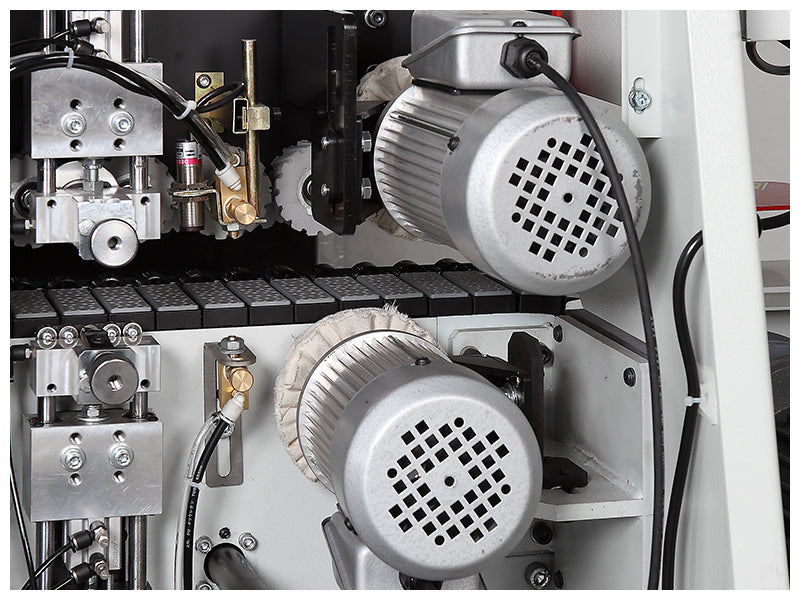

BUFFING UNIT
The buffing unit leaves a super finish on ABS and PVC edging and removes any discoloration on the edges, which is especially noticeable when working with dark edge material.

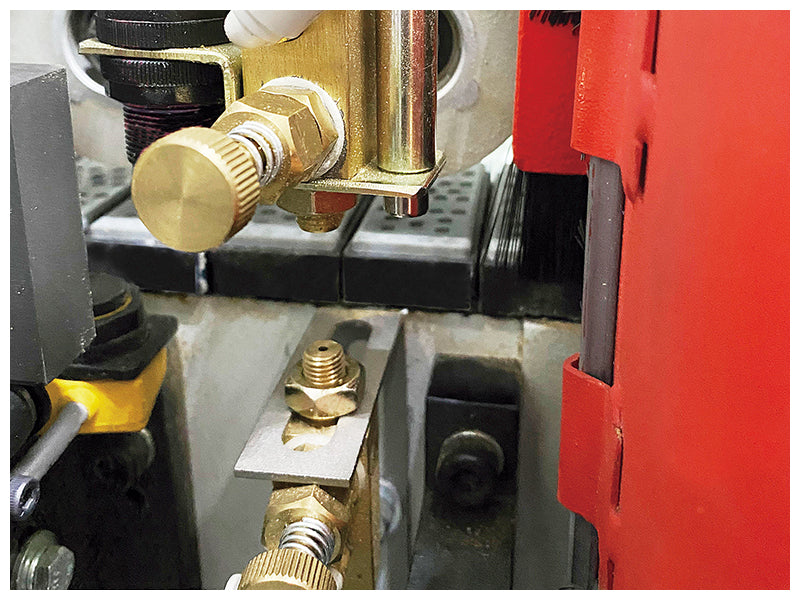

RELEASE AGENT SPRAY UNIT
Applying release agent to the top and bottom surface of the panel prior to applying the glue and edge allows for simple removal of any excess glue. The unit is located before the pre-milling station so any overspray which gets on the edge will be milled off to ensure proper bonding.

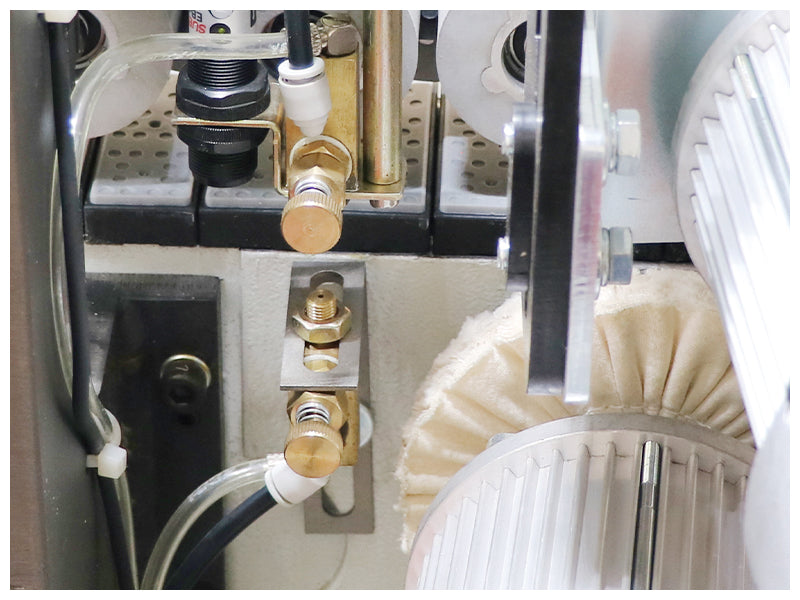

CLEANING AGENT SPRAY UNIT
The cleaning agent system sprays the top and bottom of the machined edge on the processed workpieces. It is installed before the buffing unit and is designed to polish the edge and loosen any excess glue residue on the surface of the panel.


INCH
METRIC
Feeding speed
29 FPM
9 meters/min.
Panel thickness
0.315″ ~1.77″
8~45 mm
Edge thickness
0.0158”~0.118”
0.4 ~ 2 mm
Min. panel width
3.54″
90 mm
Min. panel length
6.7″
170 mm
Working table height
38″
960 mm
Extension support width
22″
560 mm
Dust collection outlet
Ø 5″ x3
Ø 127 mm x3
Air consumption
12.36 CFM
350 liters/min
Electrical consumption
11.4 HP
7 KW
Electrical requirement
230/3/60
26 Full load amps
Machine weight
2024 lbs
910 kgs
Shipping weight
2618 lbs
1190 kgs
Shipping dimensions
156” x 29” x 69”
3960 x 730 x 1748mm

MOTOR SPECIFICATIONS
Feeding motor
1.5 kW
Pre-milling motors
1.5 kW (12000 RPM)
Glue spindle motor
0.25 kW
Front/rear trimming motor
0.22 kW (12000 RPM)
Upper trimming motor
0.37 kW (12000 RPM)
Lower trimming motor
0.37 kW (12000 RPM)
Corner rounding motor
0.37 kW (12000 RPM)
Upper buffing motor
0.18 kW (3000 RPM)
Lower buffing motor
0.18 kW (3000 RPM)
Pre-heating
0.4 kW
Gluepot heating
1.315 kW
