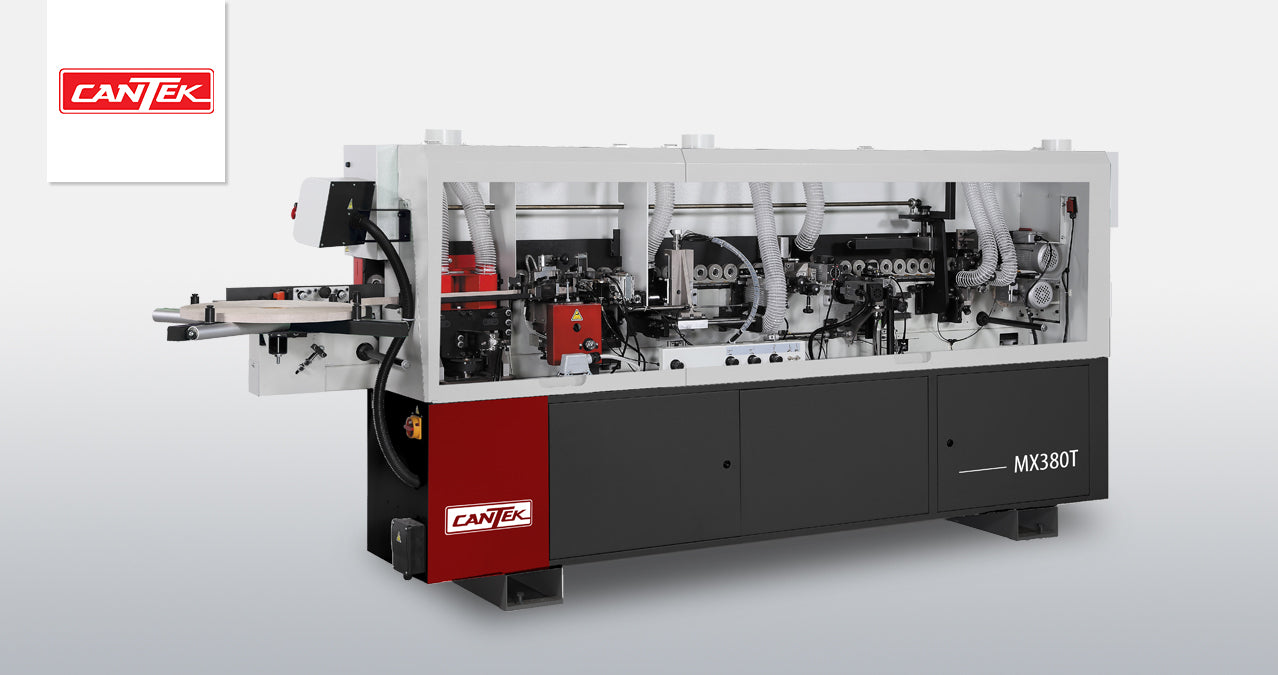

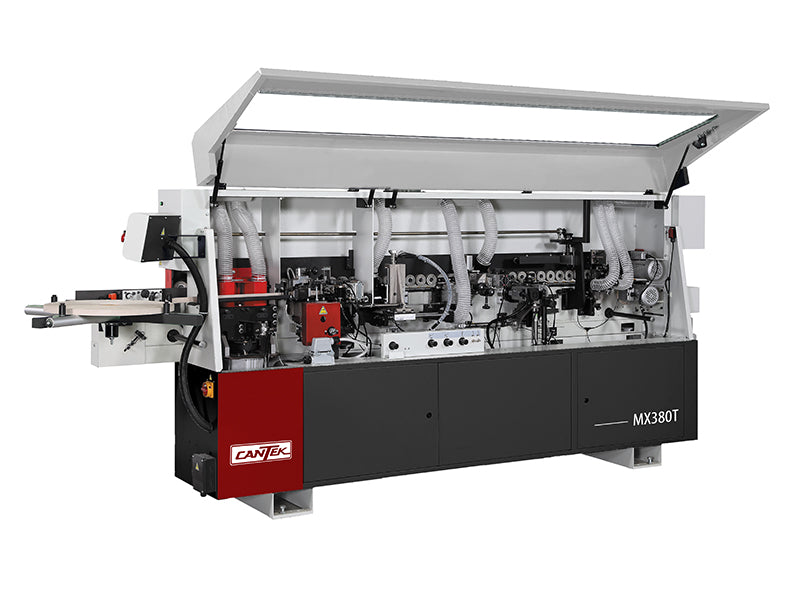

CANTEK | MX380T AUTOMATIC EDGEBANDER

• Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed.
• Conveyor chain feed system for reliable results.

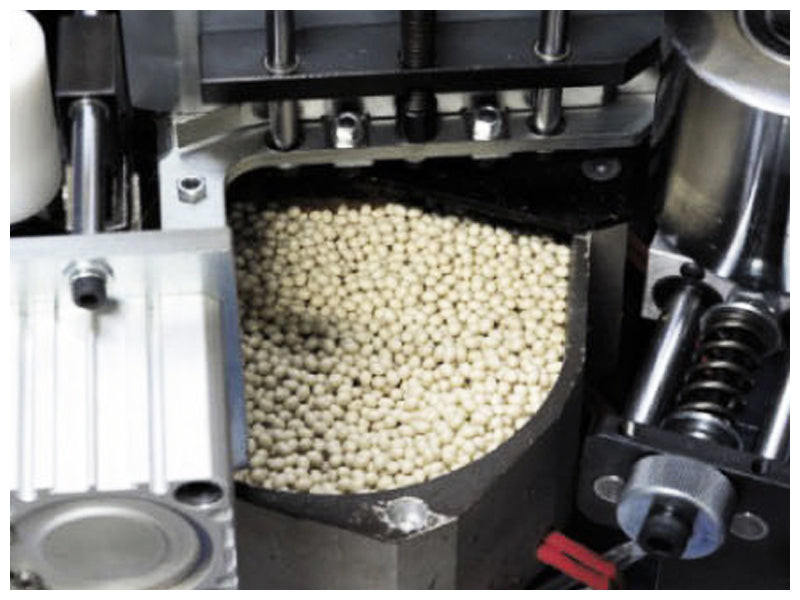

• Teflon-coated hot-melt glue pot.
• Heated infeed fence for pre-heating the panel for optimum glue penetration.

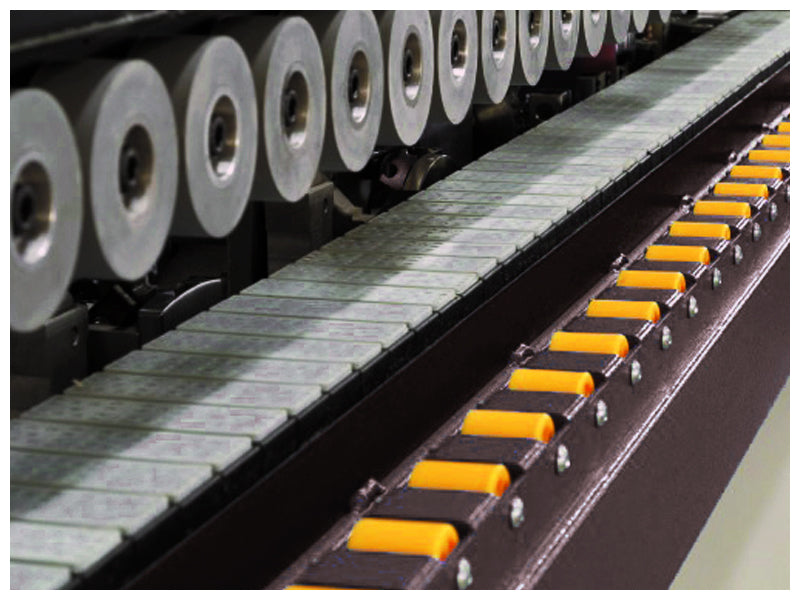

• Workpiece is fed by chain.
• Edge coil support plate: Ø 800mm (31 ½”) for PVC/ABS.
• Spring-loaded pressure unit with (2) pressure rollers.
• Heavy-duty pressure beam with extendable workpiece support.
• Touch screen interface
  • State of the art touch screen interface allows the operator to conveniently control various machine functions.
  • On screen error diagnostics.
  • Temperature setting with automatic temperature lowering.

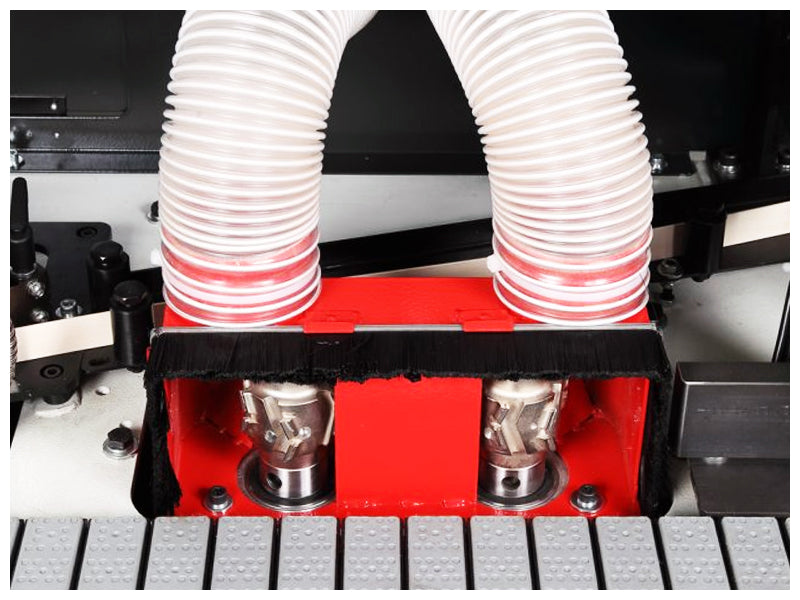

PREMILLING UNIT
High-frequency pre-milling units can remove up to 3mm and are designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels.
(2) counter-rotating diamond cutterheads for optimum results and longevity.

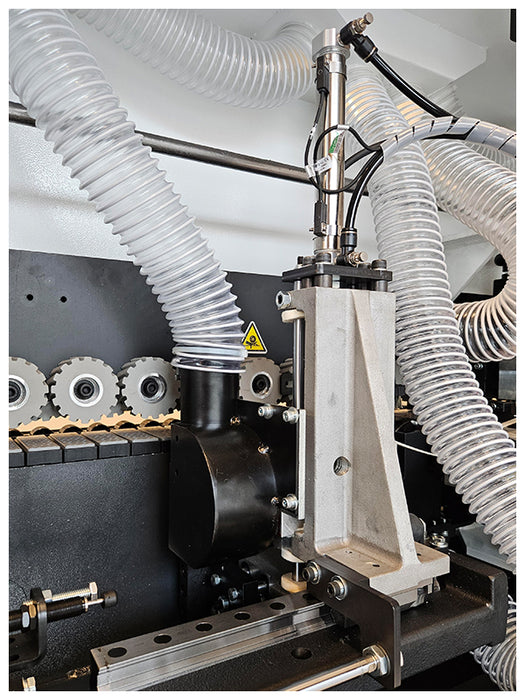

END TRIM
High frequency 12000 RPM end trimming unit, with 2 saw blades

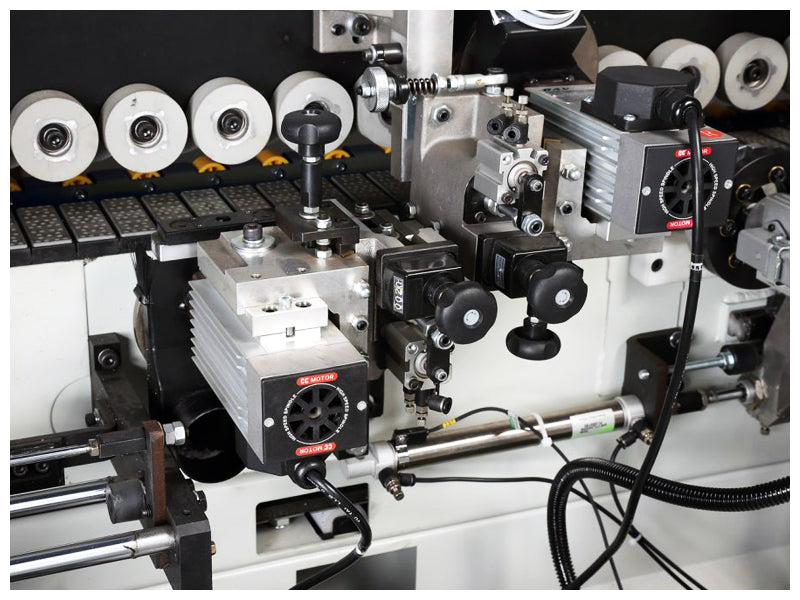

TOP & BOTTOM TRIM
High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming.

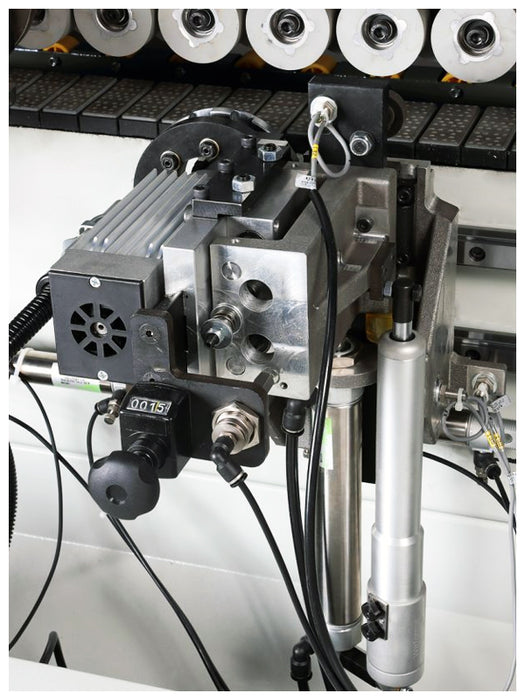

CORNER ROUNDING
High-frequency corner rounding unit can process 0.4-3mm thick edgebanding by tracing the shape of the panel.

RADIUS SCRAPING
Radius scraper with 2mm radius.

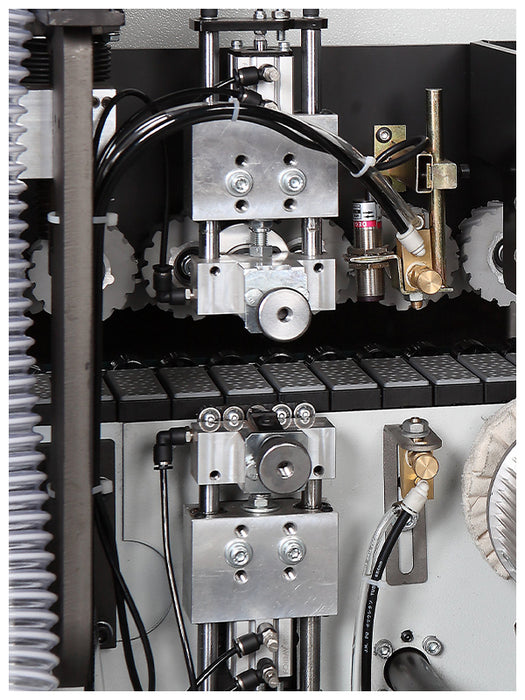

FLAT SCRAPING
Flat insert knives designed to remove any excess glue which remains on the surface of the panel after applying the edge due to squeeze out.

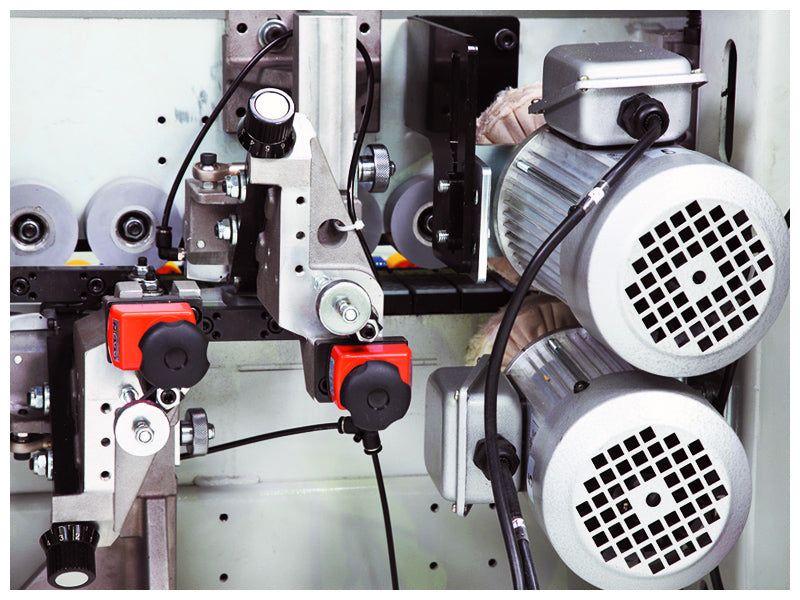

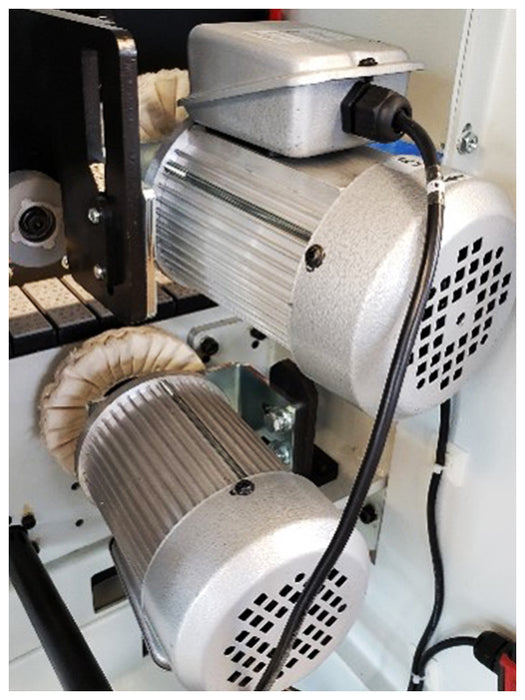

BUFFING
3000 RPM top & bottom buffing units to polish the machined edge.
