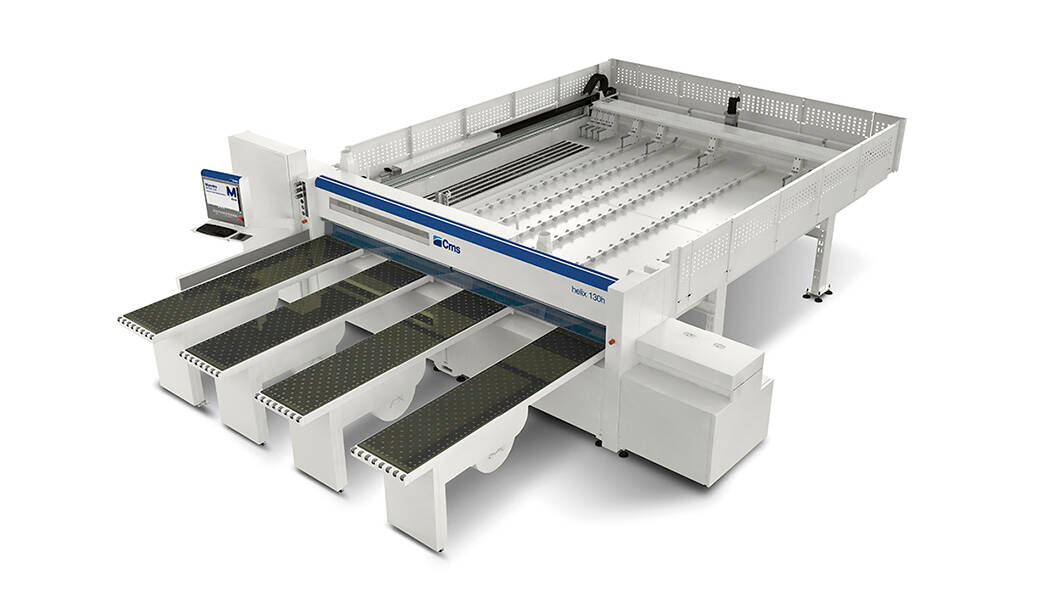

The CMS Helix 130H is a high-performance automatic beam saw designed for plastic, acrylic, and synthetic panels. Built for industrial environments and just-in-time production workflows, it delivers robust cutting performance combined with flexibility and precision, making it a strong choice for mid-to-high volume panel cutting.
-
High-speed, high-precision cutting — The “Hi Tronic Vertical Stroke Device” and electronic blade control ensure superior cut finish and fast cycle times.
-
Reduced setup time — Thanks to the “Saw-set” device, tool changes and blade adjustments are quick and precise, with setting operations taking less than 15% of total cycle time.
-
Clean, efficient working environment — Automatic closing of the cutting line prevents trimmings from falling into the machine compartment, helping maintain cleanliness and reducing downtime.
| Parameter | Specification |
|---|---|
| Cutting dimensions (panels) | from 3200×3200 up to 4500×4300 mm (various configs) |
| Blade projection | 128 mm |
| Main blade / engraver blade diameter | 430 / 200 mm |
| Max blade carriage speed | 150 m/min (optional 170 m/min) |
| Max plunger speed | 70 m/min |
| Blade motor power (with inverter) | 15 kW standard (optional 18 kW) |
| Engraver motor power | 1.8 kW |
| Blade rotation speed (c/inverter) | 1,200 / 3,800 rpm |
