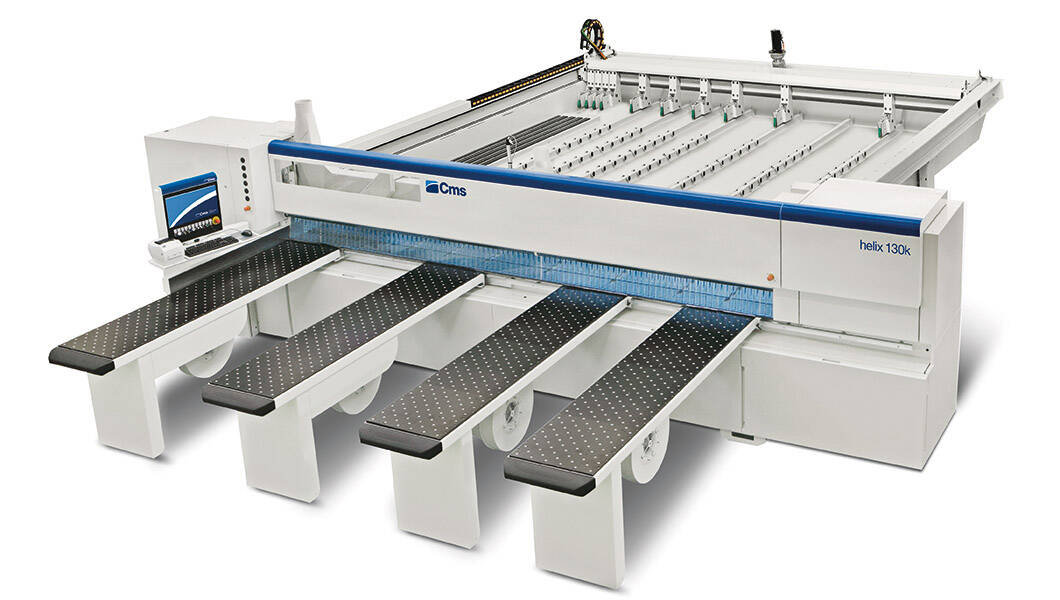

The CMS Helix 130K / 165K is a heavy-duty single-blade automatic beam saw, purpose-built for the toughest applications in advanced materials, plastics, acrylics and synthetic panels — including those of significant thickness. Its rugged, rigid structure and powerful blade technology make it ideal for industrial environments requiring precision, robustness, and high throughput.
-
Designed for demanding, heavy-duty applications — The robust structure offers +19% on workable thickness compared to standard saws, making it ideal for thick panels and advanced materials.
-
High power and cutting capacity — With main blade motors up to 37 kW (optional) and a strong blade carriage, the machine handles large and heavy panels with precision and consistency.
-
Superior control and maintenance-friendly design — Floating double-claw collets provide safe gripping even with imperfectly flat sheets; pneumatic blade lifting on prismatic guides ensures stability and ease of maintenance.
-
Optimal suction and clean operation — Uniform pressure through the presser and efficient chip suction system support clean processing and better finish — even with challenging materials.
| Parameter | Helix 130K | Helix 165K |
| Cutting dimensions (panels) | 3200×3200, 3800×3800, 4500×4300 mm (various configs) SCM Group+1 | same range SCM Group+1 |
| Blade projection | 130 mm | 165 mm SCM Group+1 |
| Main blade / engraver blade diameter | 430 / 200 mm | 530 / 200 mm SCM Group+1 |
| Max blade carriage speed | 170 m/min | 170 m/min SCM Group+1 |
| Max plunger speed | 135 m/min | 135 m/min SCM Group+1 |
| Blade motor power (with inverter) | 15 kW (optional 18, 22, 30, 37 kW) | 18 kW (optional 22, 30, 37 kW) SCM Group+1 |
| Engraver motor power | 1.8 kW SCM Group+1 | |
| Blade rotation speed (c/inverter) | 1,200 / 3,800 rpm (130K) — 1,000 / 2,950 rpm (165K) SCM Group+1 | |
| Collets (standard) | double-claw (130K), double-claw then single-claw (165K) — 10 / 11 collets depending on size |
