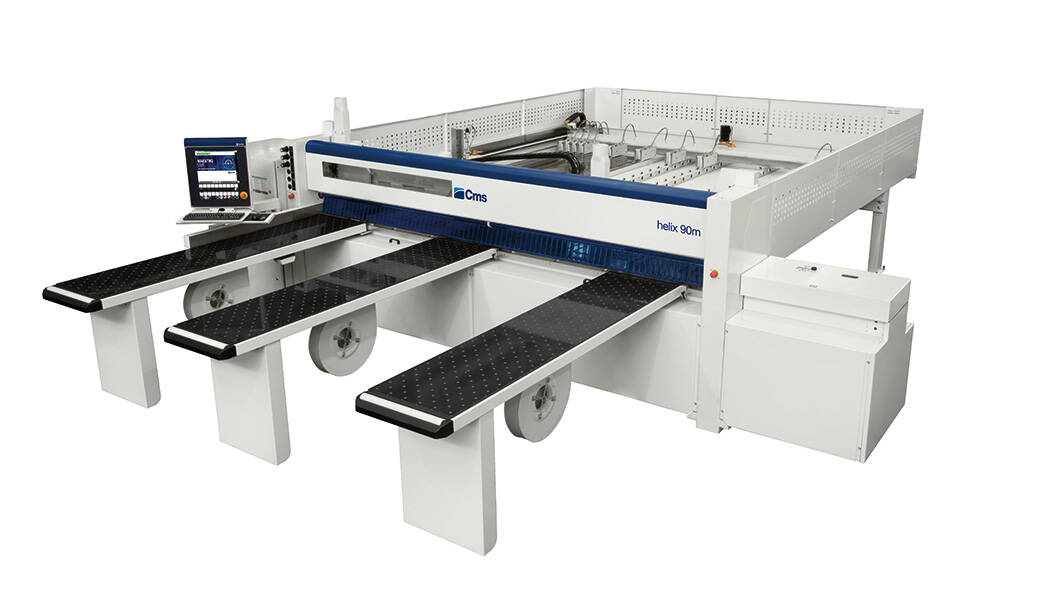

CMS Helix 90M / 110M are automatic single-blade beam saws engineered for cutting plastic, acrylic, and synthetic panels — offering higher capacity and blade performance compared to entry-level saws, while still maintaining the simplicity and flexibility typical of the Helix line.
-
Optimized for plastic sheet cutting — With adjustable blade peripheral speed, optimized blade ascent, cooling and lubrication, these saws ensure high cut quality and processing speed for a variety of plastic materials and thicknesses.
-
Flexible blade configurations — Main and engraver blade diameters and blade carriage speeds are adjustable to suit different panel sizes and cutting requirements.
-
Efficient throughput — Good balance between throughput, quality, and versatility – suitable for companies that regularly process medium to large plastic sheets.
| Parameter | Helix 90M | Helix 110M |
| Cutting dimensions (panels) | from 3200×2100 up to 4500×4300 mm (various configs) SCM Group+1 | same range SCM Group+1 |
| Blade projection | 95 mm | 115 mm SCM Group+1 |
| Main blade / engraver blade diameter | 380 / 200 mm | 400 / 200 mm SCM Group+1 |
| Max blade carriage speed | 135 m/min | 135 m/min SCM Group+1 |
| Max plunger speed | 70 m/min | 70 m/min SCM Group+1 |
| Blade motor power (with inverter) | 11, 15, 18 kW | 11, 15, 18 kW SCM Group+1 |
| Engraver motor power | 1.8 kW SCM Group+1 | |
| Blade rotation speed (c/inverter) | 1,200 / 3,800 rpm SCM Group+1 | |
| Number of double-claw collets (std) | 7 | 8 |
