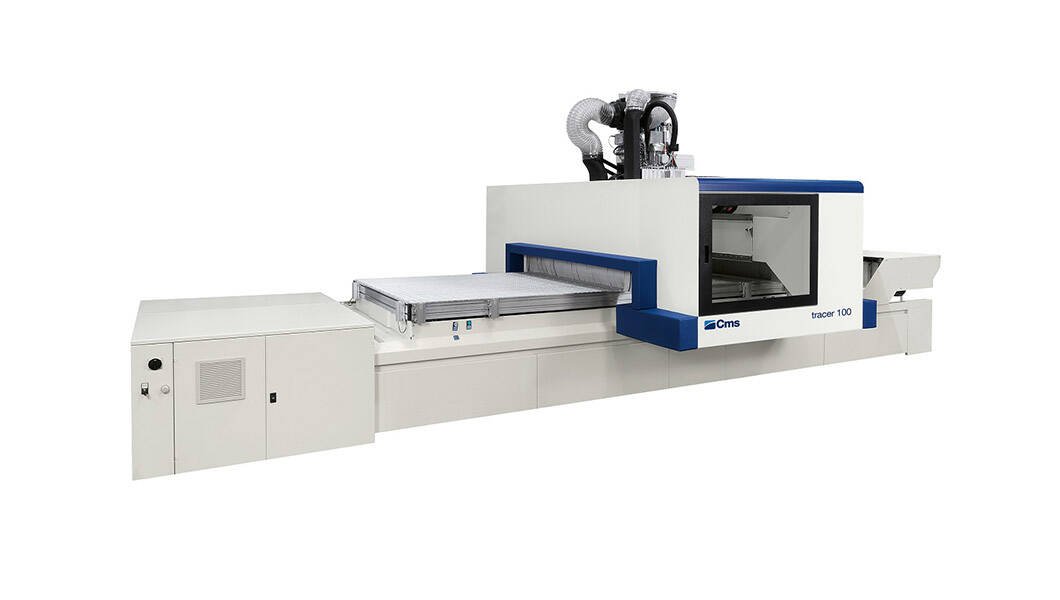

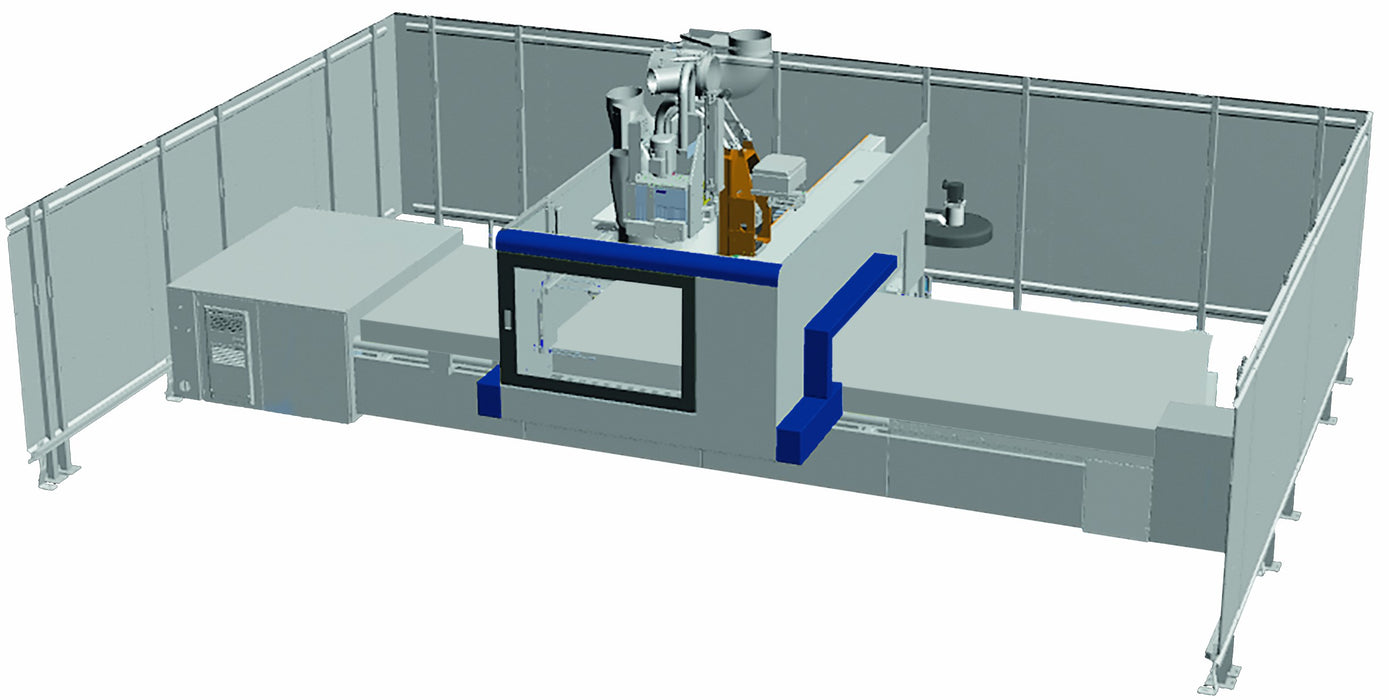

The CMS Tracer 100 is an “all-in-one” 3- or 5-axis CNC machining center tailored for plastics and advanced materials. Designed to handle both thermoformed and flat sheet parts, it delivers excellent versatility and efficiency while maintaining a compact footprint. The machine’s clever layout — including “PRO-SPEED” and “PRO-SPACE” configurations — ensures optimized workspace usage without sacrificing performance.
-
Outstanding cutting performance for plastics — The JQX 5-axis electrospindle is optimized for plastics, ensuring vibration-free machining even during heavy material removal or fine trimming of thermoformed parts.
-

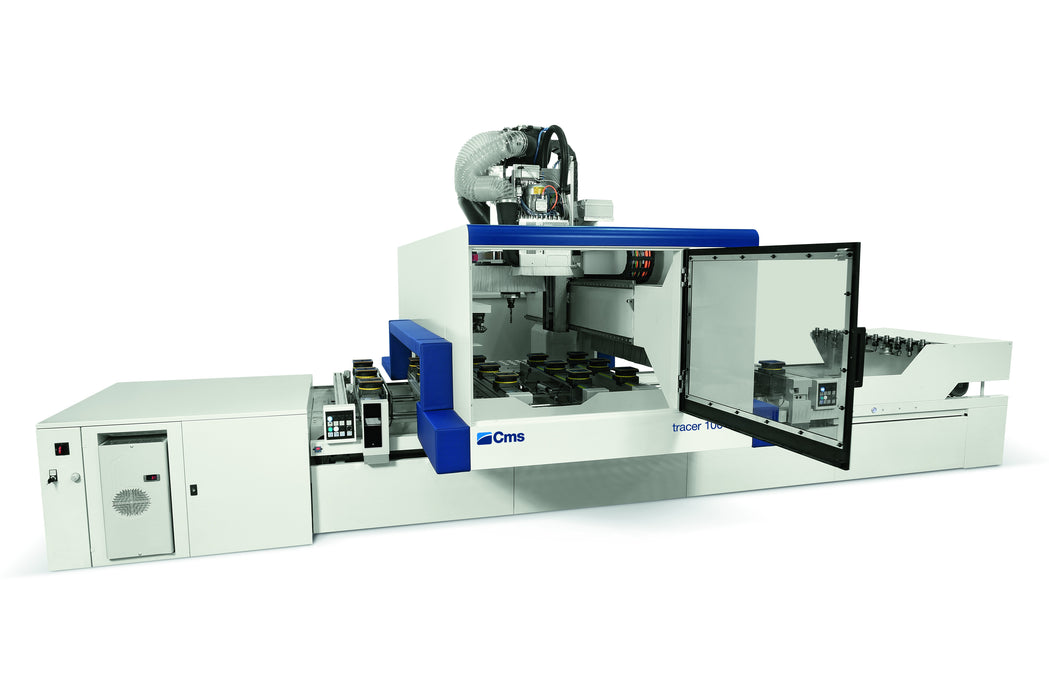

Fast tool changes & efficient cycles — Equipped with a 14-position “FAST” tool magazine inside a mobile cabin; tool changes in under 15 seconds help boost productivity.
-

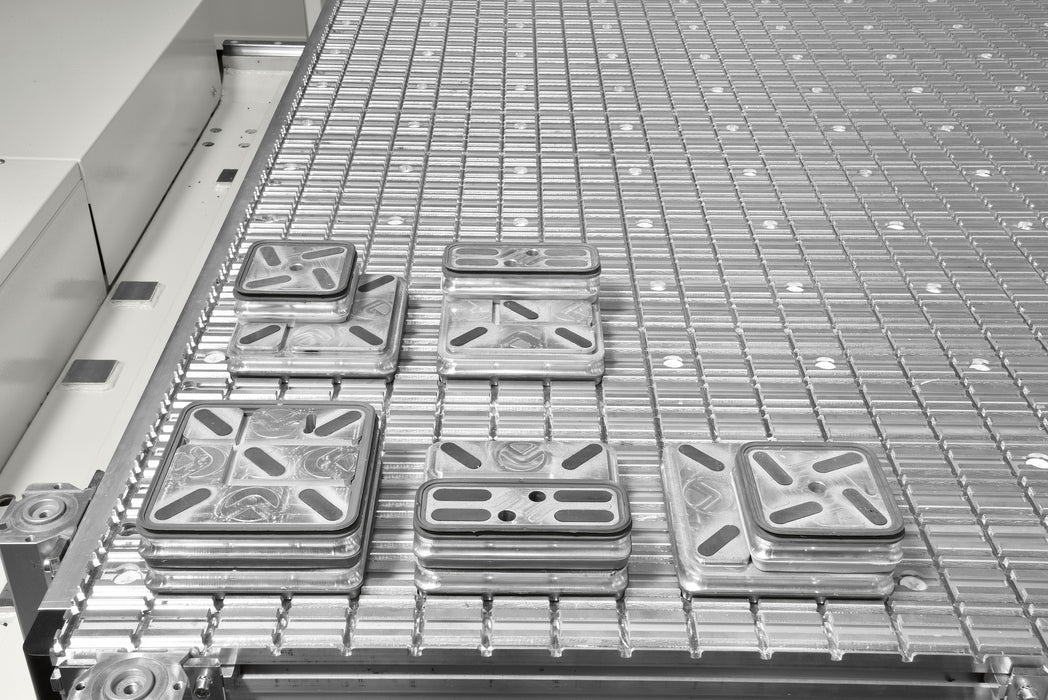

High flexibility & long-term stability — The multifunction worktable is made of extruded aluminium, engineered to remain flat even under repeated stress, making it suitable for both nesting sheet work and thermoformed parts.
-

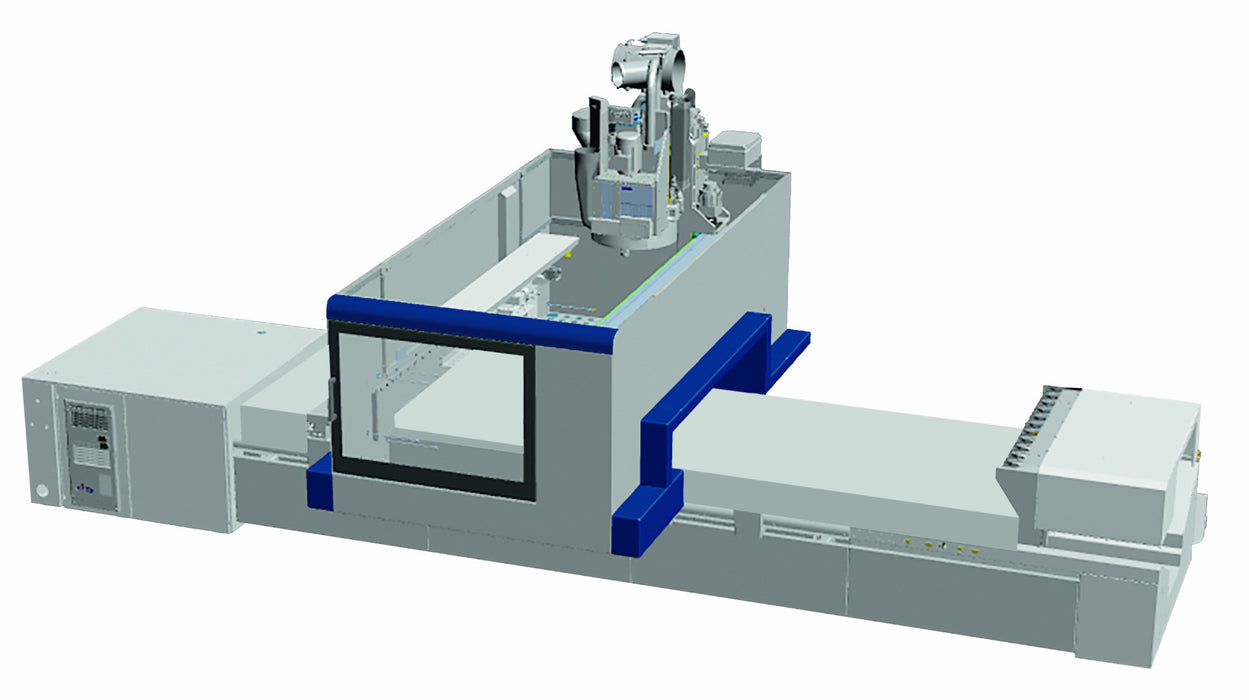

Compact footprint and easy access — “PRO-SPACE” protective design enables unobstructed loading and frees up shop floor space; worktable is accessible from all sides.
| Parameter | Specification |
|---|---|
| Axes | 3- or 5-axis |
| Worktable / Z stroke (panel passage) | 180 mm standard / up to 250 mm optional |
| Spindle power | up to 15 kW (20.5 hp) |
| Spindle speed | up to 24,000 rpm |
| Tool changer capacity | up to 57 tools |
| Drilling spindles (vertical) | up to 21 |
| Horizontal spindles (max) | up to 12 |
| Integrated X-axis blade (diameter) | 125 mm |
| Exhaust air consumption / outlet | 4430 m³/h ; outlet diameter 250 mm |
