Used Laguna MSHAP4SPD-3-0130 Shaper with Steff 2048 Feeder

Used Laguna MSHAP4SPD-3-0130 Shaper with Steff 2048 Feeder

by Laguna
$3,400.00
SKU WSI-USEDDELTARS-15

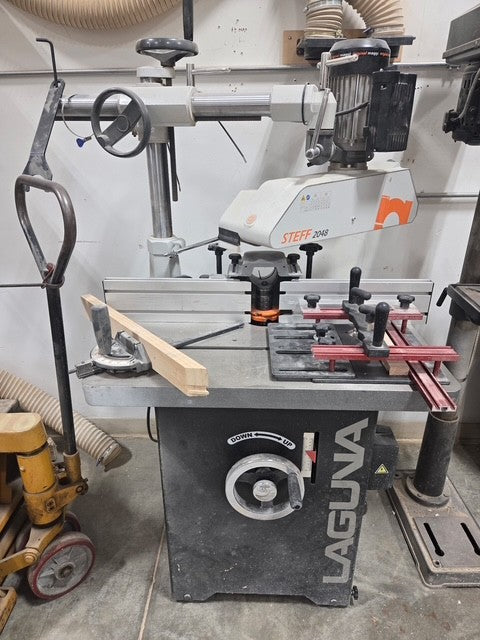

The Laguna 4-Speed Compact Shaper is a heavy-duty, stationary woodworking shaper engineered for professional workshops and high-precision stock shaping jobs, including edge profiling, cope-and-stick work, and raised panel setups. This specific unit is paired with an industry-standard Maggi Steff 2048 4-Roll, 8-Speed Automatic Power Feeder, manufactured by Maggi Engineering in Italy.

The integration of the automatic power feeder significantly optimizes shop workflow by ensuring safe, hands-free operation, virtually eliminating workpiece kickback, and delivering an ultra-uniform finish cut free from the defects commonly caused by uneven manual feeding. Built on a robust floorstanding chassis with an integrated mobility wheel system, this production setup provides maximum shaping versatility and reliable, heavy-duty material handling in a space-conscious configuration.



FOB: Wauconda, IL

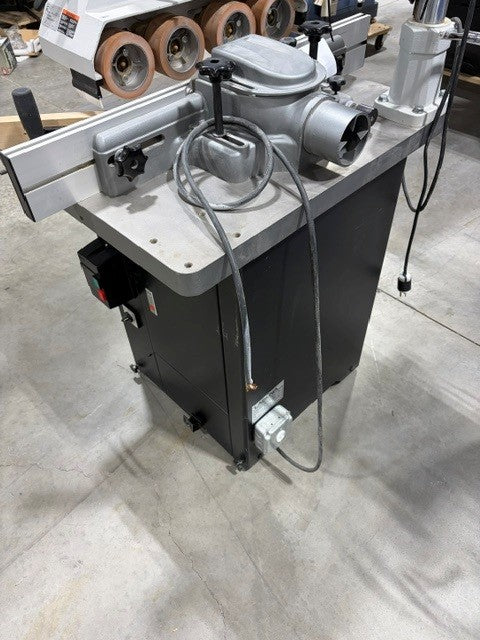

Laguna Compact Shaper

  • Flat Poly-Groove Drive Belt: Transmits robust motor power more efficiently while dampening operational vibration for smoother, cleaner edge cuts.
  • Quick-Release Speed Selection: Features an intuitive mechanical leverage system where a simple pull of a handle compresses the distance from the spindle to the pulley, enabling effortless speed adjustments between the machine's four operational tiers.
  • Precision Control Fence: Equipped with a micro-adjustment system on the fence alongside an integrated T-slot track for exact, highly repeatable workpiece indexing.
  • Dual-Rotation Directional Switch: Supports full forward and reverse spindle rotation, maximizing cutter compatibility and adaptation to varying grain configurations.
  • Integrated Wheel System: Mobilization wheels are built directly into the floorstanding cabinet base, allowing easy relocation throughout the workshop without requiring a separate mobile base.
  • Simplified Spindle Lock: Facilitates rapid, secure cutter changes with a streamlined physical spindle-lock mechanism.

Maggi Steff 2048 Power Feeder

  • 4-Roller, 8-Speed Drivetrain: Utilizes case-hardened sintered gears and a high-strength bronze alloy main drive gear to split power across 4 natural rubber rollers, offering 4 forward and 4 reverse speeds.
  • Calibrated Spring Support: Independent spring-loaded suspension provides a 1-inch vertical range of motion per roller, maintaining consistent, firm pressure even over uneven stock surfaces.
  • Electrostatic Surface Shielding: High-durability electrostatic paint finish protects the mechanical casting against rust and intensive shop wear.
  • Universal Positioning Stand: Heavy-duty universal mounting stand built with robust 58 mm diameter vertical and horizontal tubes for flexible orientation across a wide envelope of cutting setups.

Laguna Shaper (Model: MSHAP4SPD-3-0130)

Specification Detail
Motor Output 3 HP
Electrical Input 220 Volts / 60 Hz

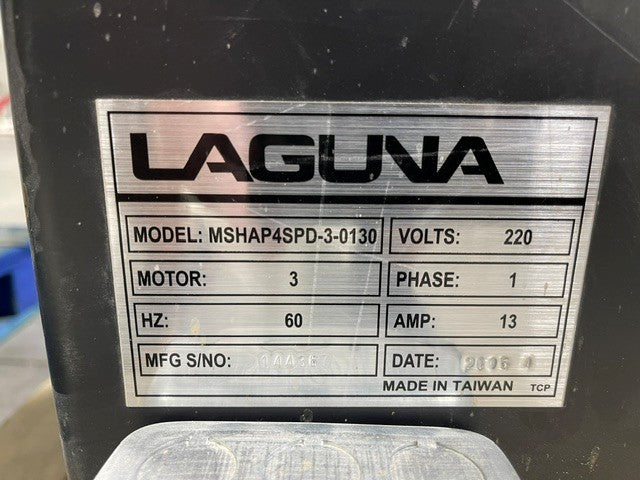

Phase / Current 1 Phase / 13 Amps (Per Factory Label)
Available Spindle Speeds 4,000 / 6,000 / 8,000 / 10,000 RPM
Spindle Vertical Travel 4"
Spindle Capacities Under Nut 4" (using 1-1/4" spindle)
Standard Spindle Sizes Included 3/4" & 1-1/4"
Interchangeable Router Collets 1/4" & 1/2"
Cast Iron Table Dimensions 32" x 26-1/2"
Table Height from Floor 34"
Table Opening Diameter 6-1/4"
Table Insert Opening Diameters 2-1/2" & 4-5/16"
Fence Dimensions 4-13/16" x 16"
Dust Collection Port Diameter 4"
Machine Weight (Net / Shipping) 450 lbs. / 500 lbs.
Manufacturing Origin Made in Taiwan (Per Factory Label)

Maggi Steff Power Feeder (Model: 2048)

Specification Detail
Feeding Elements 4 Natural Rubber Rollers
Feed Configurations 8 Speeds Total (4 Forward / 4 Reverse)
Roller Dimensions 120 mm Diameter x 60 mm Width
Roller Compound Hardness 60 Shore (Standard Natural Rubber)
Roller Suspension Travel 1" range of motion
Mounting Tube Diameter 58 mm (Vertical & Horizontal Tubes)
Gear Components Case-Hardened Sintered Gears & Bronze Alloy Drive
Manufacturing Origin Made in Italy
