Lamello Zeta P2 Biscuit Joiner, 101402S

by Lamello

$1,600.00

SKU CL101402S

Select

Quantity

If you're in the market for a high-quality biscuit joiner that can help you achieve precision cuts and versatile performance, the Lamello Zeta P2 Biscuit Joiner is an excellent choice. This tool is designed to provide the utmost precision and accuracy in your woodworking projects, thanks to its innovative features and design.

The Lamello Zeta P2 Biscuit Joiner is made with the highest-quality materials and is built to last. Its sturdy construction ensures that it can handle even the toughest woodworking projects, making it a reliable tool for any woodworker. One of the key features of the Lamello Zeta P2 Biscuit Joiner is its high-precision cutting ability. It can cut biscuit slots quickly and accurately, allowing you to create strong and secure joints that will hold up over time. The tool also features an intuitive control system that makes it easy to adjust the cutting depth and angle to your exact specifications.

In addition to its precision cutting ability, the Lamello Zeta P2 Biscuit Joiner is also incredibly versatile. It can be used for a wide range of woodworking projects, including furniture, cabinetry, and more. Whether you're a professional woodworker or a DIY enthusiast, this tool is sure to impress with its versatility and performance. Another great feature of the Lamello Zeta P2 Biscuit Joiner is its user-friendly design. It is ergonomically designed for easy handling and operation, with an intuitive control system that makes it simple to use. This tool is perfect for both novice and experienced woodworkers alike.

Features

Trademark P-System Vertical Mechanical Drive. The vertical mechanical drive consists of highly precise rotary parts supplied by Lamello. It creates an eddy current, driving the stroke movement.
P-System Anchorage
Tool-free anchoring of connectors, without adhesive or screws
P-System Depth Adjuster
Extremely fast rotation to set different depths for the P-System joining elements: 10, 12, 14, 15 or 18.
Use Zeta P2 for standard wooden biscuits by rotating the P-System depth adjuster to OFF to switch off the vertical mechanical drive. The 7 mm P-System cutter is replaced with the 4 mm groove cutter
Swivelling Front Stop with Fixed Pivot Point
Join reliably with the cutter which is in the exact center between to two application surfaces
Multifunctional Stop Square
In addition to vertical stability resulting from the larger contact area, the stop square enables variable adjustment of the groove position, 0 - 50mm

Benefits

Extremely fast joining method using a power tool
Rapid, simple, and precise
Identical grooves on both work pieces, saving time by removing the need for depth adjustments and minimizing the risk of errors
Connector system with innovative profile groove technology greatly reduces labor time while also negating the need for additional fastening materials
5 different cutting depths for various connecting fittings
Also compatible with biscuits and other 4 mm fittings

Applications

Ideal for woodshops without investing in expensive capital machinery
Fast gluing and clamping aid for a wide range of connections, including miters
Fast permanent or detachable connections
Minimal setup time for different applications
On-site adjustments and assembly
For use with all wood materials and panels, as well as composite materials such as solid surfaces or HPL may be used with the P-System
Furniture and kitchen manufacturing, store fixtures, exhibit booth construction, installers, custom woodworking, and millwork

P-System Vertical Mechanical Drive

The vertical mechanical drive consists of highly precise rotary parts supplied by Lamello. It creates an eddy current, driving the stroke movement.

P-System Anchorage

Tool-free anchoring of connectors, without adhesive or screws.

P-System Depth Adjuster

Extremely fast rotation to set different depths for the P-System joining elements: 10, 12, 14, 15 or 18.

Wood Elements

Use Zeta P2 for standard wooden biscuits by rotating the P-System depth adjuster to OFF to switch off the vertical mechanical drive. The 7 mm P-System cutter is replaced with the 4 mm groove cutter.

Swivelling Front Stop with Fixed Pivot Point

Join reliably with the cutter which is in the exact center between to two application surfaces.

Multifunctional Stop Square

In addition to vertical stability resulting from the larger contact area, the stop square enables variable adjustment of the groove position, 0 - 50mm.

Functionality

The integrated vertical mechanical drive on the cutting spindle of the Zeta P2 is the centre-piece of this profile biscuit joiner. The vertical movement for the profile groove is triggered automatically when the maximum cutting depth is reached and requires just a fraction of a second. During the cutting process, the vertical mechanical drive automatically performs a vertical movement to create the profile groove.
The Zeta P2 can also be employed as a standard biscuit joiner for original biscuits by simply deactivating the profile groove function and changing to a 4mm blade.
The Zeta P2 can cut P-System grooves for connecting fittings with varying installation depths simply by turning the P-System depth adjuster, thus removing the need to change cutters.

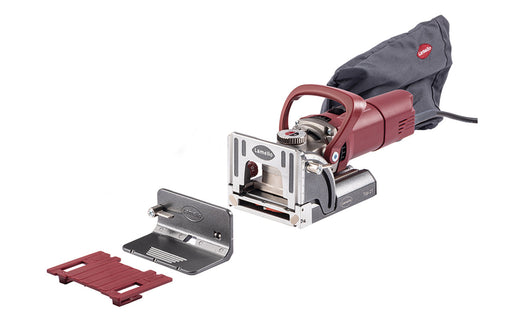

Included

Zeta P2
P-System Cutter, Carbide Tipped (101402S) | Diamond Tipped (101402DS)
Stop Square
Suction Stubs 23 + 36mm
Angle Disc
Spacer 2mm
Spacer 4mm
Tool set
P-System Drill Jig, including Drill
Lamello Systainer

Technical Data

Power: 800 W
Voltage: 120 V
Speed: 9,000
Cutter: Carbide-tipped profile groove cutter / Diamond-tipped profile groove cutter Ø 100 x 7 x 22 mm
Teeth: 3
Max. cutting depth: 20 mm
Weight: 8.2 lbs.

Lamello Zeta P2 Biscuit Joiner for P System Connectors Video
