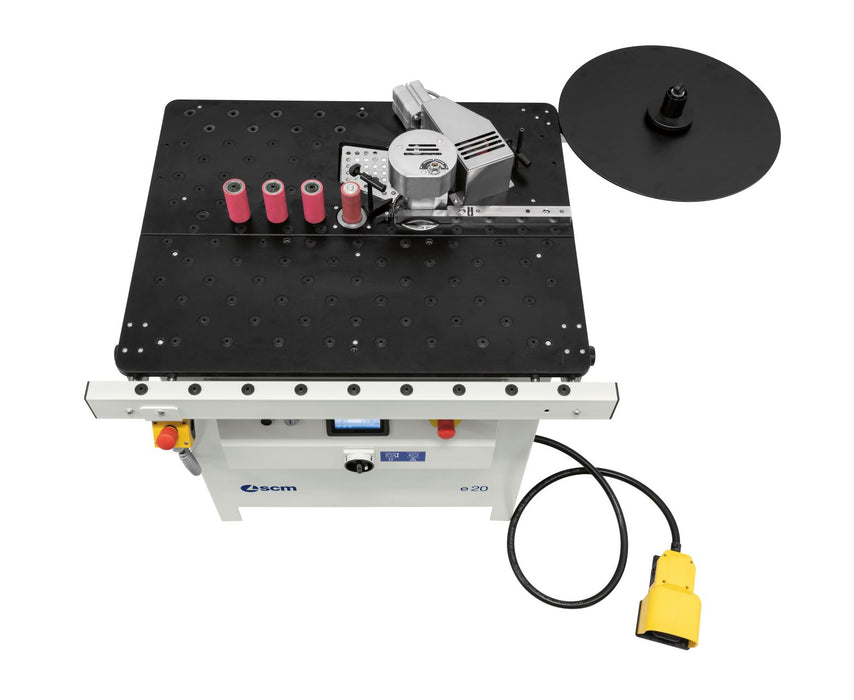

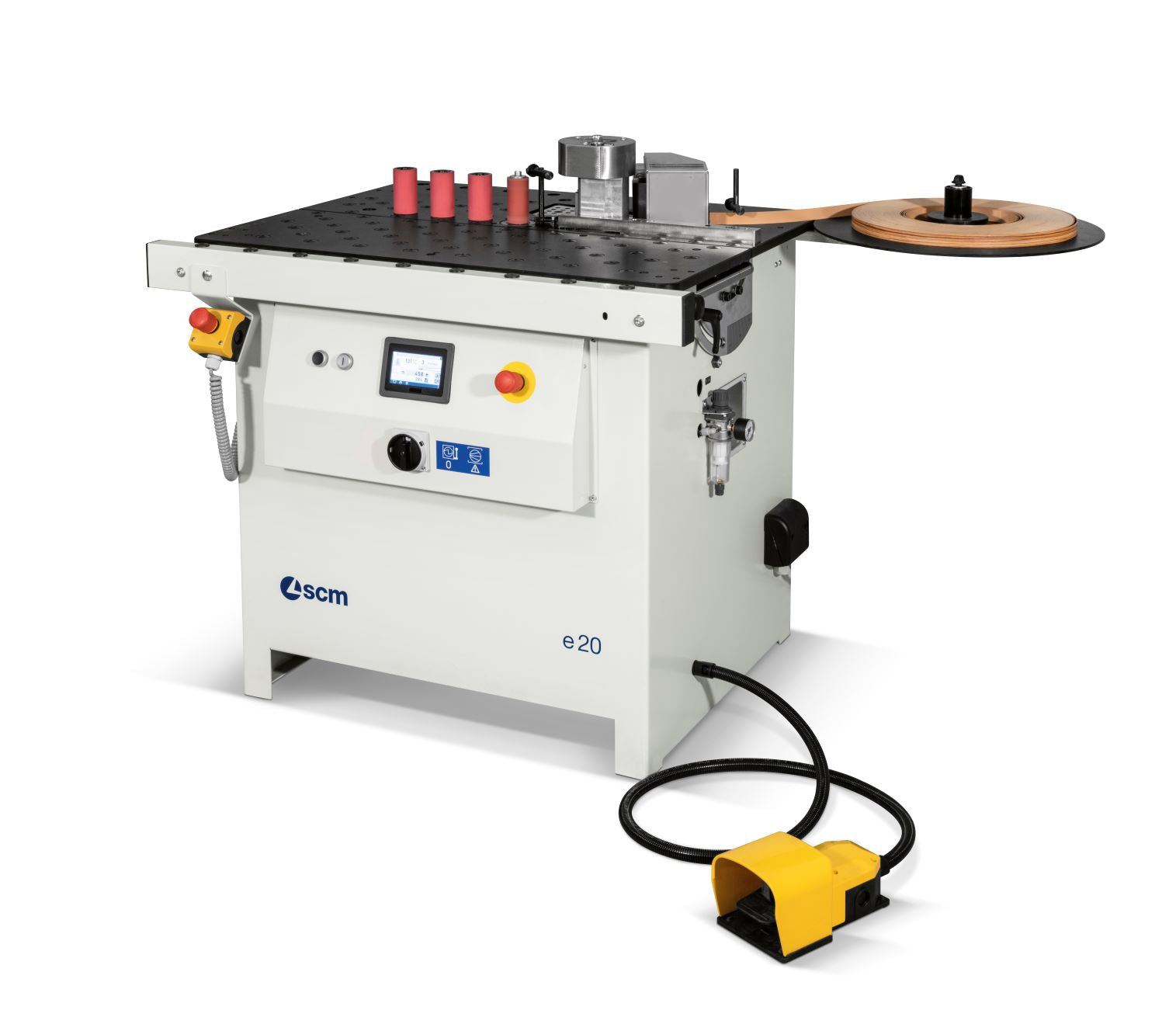

SCM Minimax E 20 Contour Edgebander, INCLUDES FREIGHT

by Minimax
$11,365.00
SKU WSI-MINIMAXE20

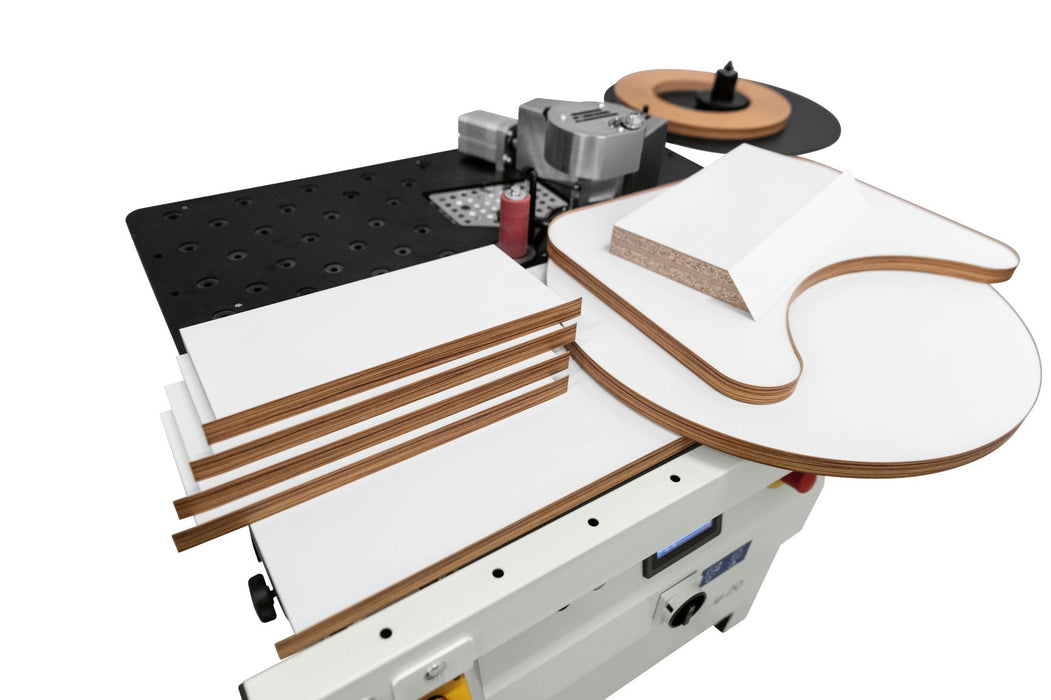

Edge banding with hot melt glue on edges in rolls and strips on shaped panels, simply essential and functional.
Designed to be economic, reliable and practical machine for the edge banding of straight and shaped panels.

Advantages

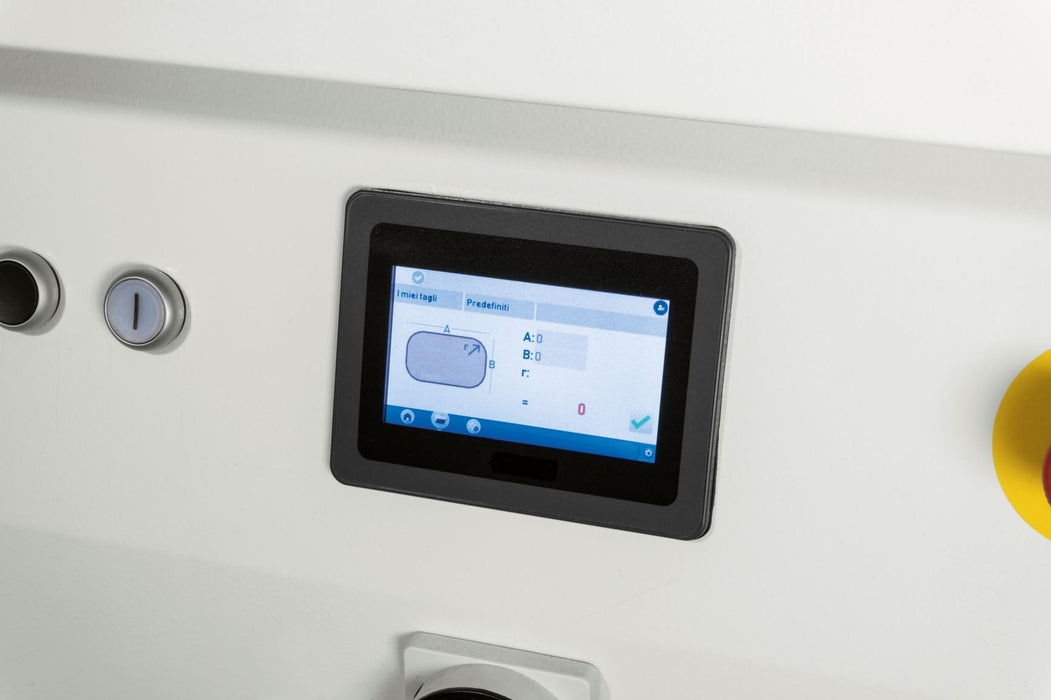

4,3" touch-screen electronic control.
Simple and intuitive, it enables an easy selection of all the main functions.

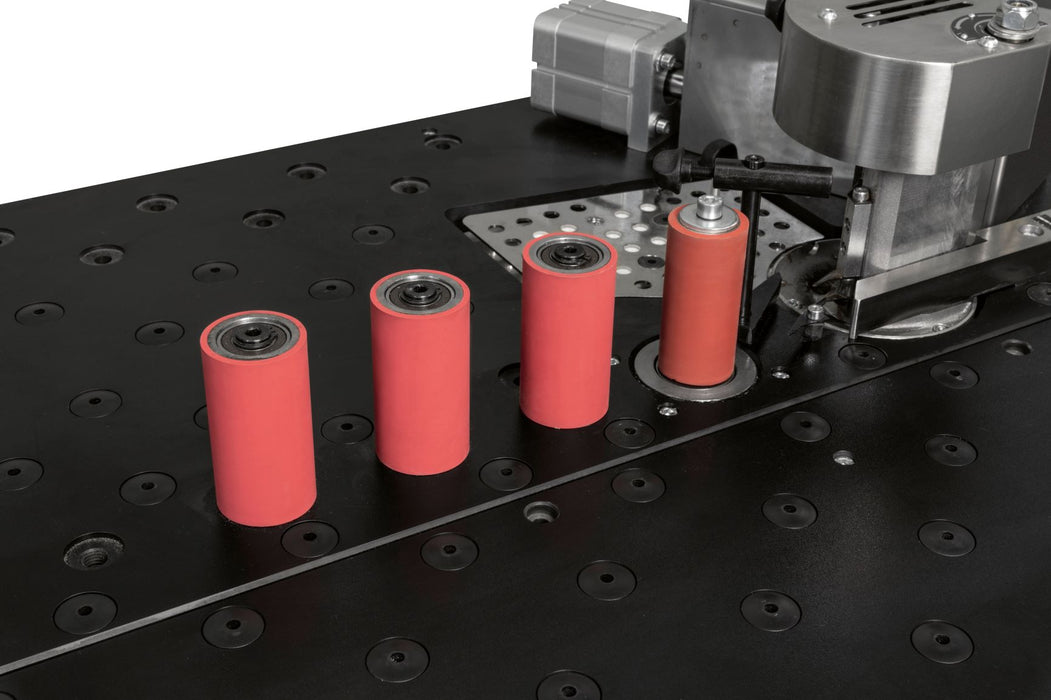

Powered pressure roller.
It facilitates the panel feeding during the machining.

Anti-scratch phenolic multilayer worktable.
No surface damage to the work piece during machining thank

Technical data

Minimax E 20

Min. ÷ max. edge thickness mm 0,4 ÷ 3
Min. ÷ max. edge height mm 10 ÷ 84
Min. ÷ max. panel height mm 8 ÷ 80
Min. panels length/width mm 290/50
Min. internal radius (concave), 0,4 mm thickness mm 25
Min. external radius (convex), 0,4 mm thickness mm 5
Feed speeds m/min 3 - 4 - 5 - 6 - 7 - 8
