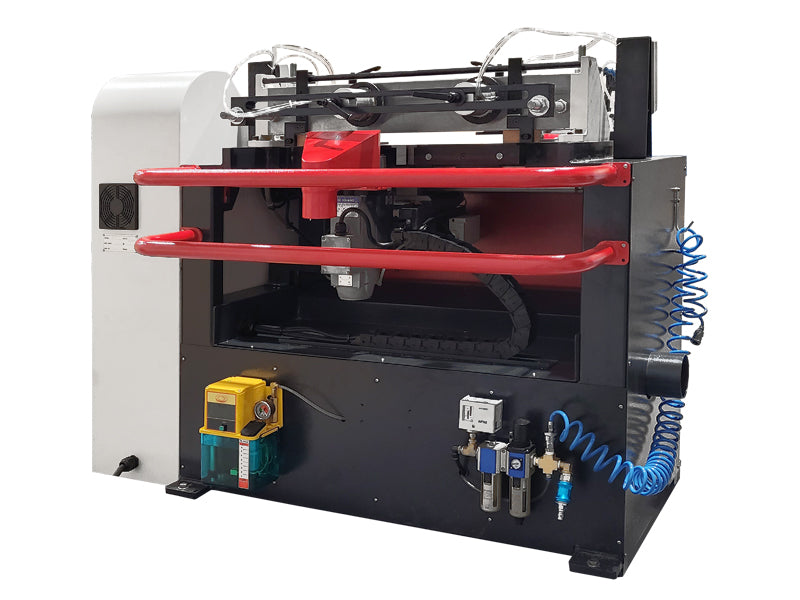

Cantek CN600, CNC Dovetailer INCLUDES FREIGHT
Click or scroll to zoom
Tap or pinch to zoom
Cantek CN600, CNC Dovetailer INCLUDES FREIGHT
Click or scroll to zoom
Tap or pinch to zoom
Cantek CN600, CNC Dovetailer INCLUDES FREIGHT
Click or scroll to zoom
Tap or pinch to zoom
Cantek CN600, CNC Dovetailer INCLUDES FREIGHT
Click or scroll to zoom
Tap or pinch to zoom
Cantek CN600, CNC Dovetailer INCLUDES FREIGHT
Click or scroll to zoom
Tap or pinch to zoom
Cantek CN600, CNC Dovetailer INCLUDES FREIGHT
Click or scroll to zoom
Tap or pinch to zoom
Cantek CN600, CNC Dovetailer INCLUDES FREIGHT
Click or scroll to zoom
Tap or pinch to zoom
Cantek CN600, CNC Dovetailer INCLUDES FREIGHT
Click or scroll to zoom
Tap or pinch to zoom
Cantek CN600, CNC Dovetailer INCLUDES FREIGHT

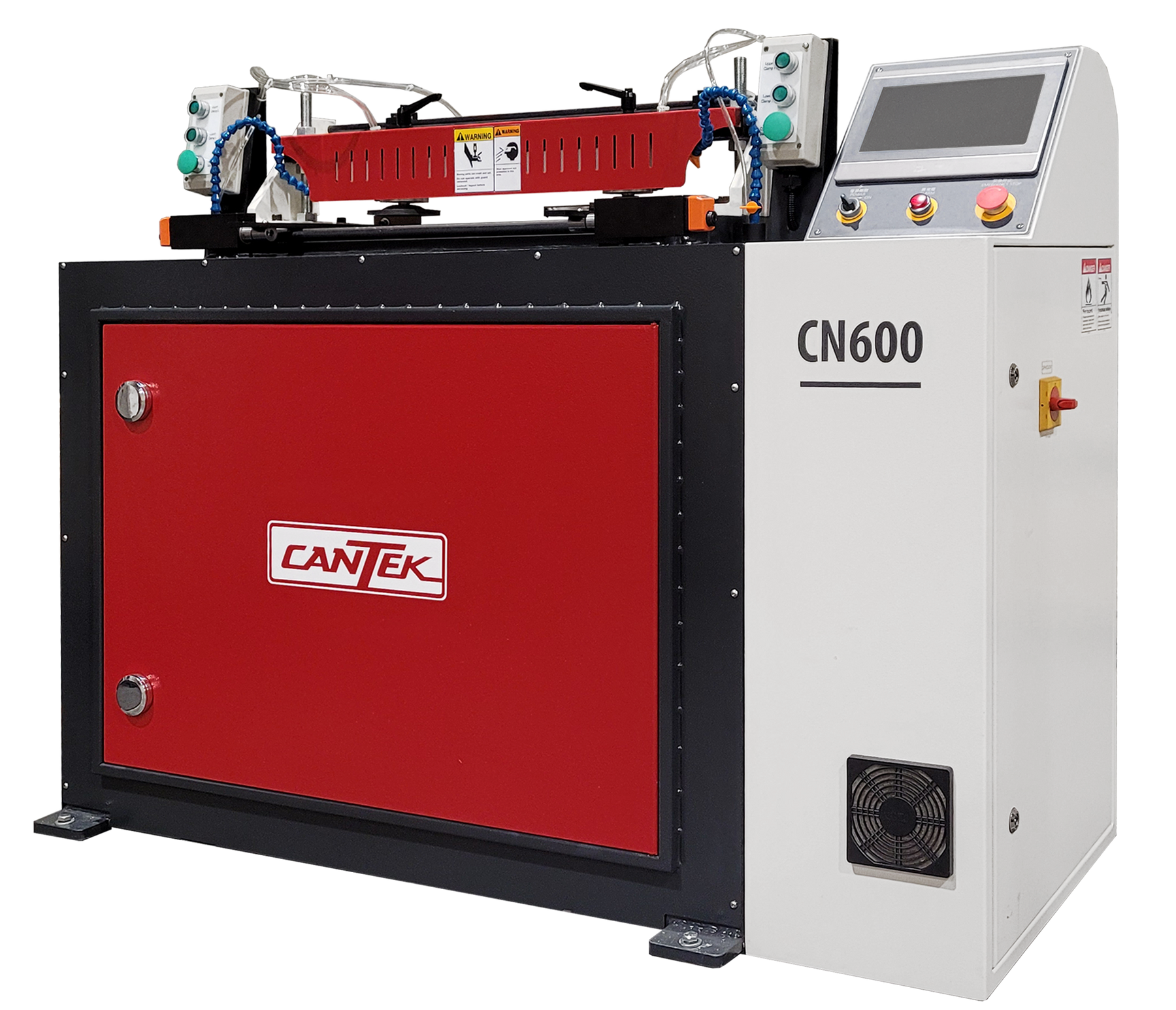

Cantek CN600, CNC Dovetailer INCLUDES FREIGHT

Cantek CN600, CNC Dovetailer INCLUDES FREIGHT

by Cantek
$29,100.00
Payment Calculator
Financing Request
SKU WSI-CantekCN600
  • Variable dovetail pitch allows for machining of any drawer height with ease
  • Adjustable spindle height and mortise and tenon depth
  • Spindle speed and machining speed is variable to ensure optimal results in a wide range of materials

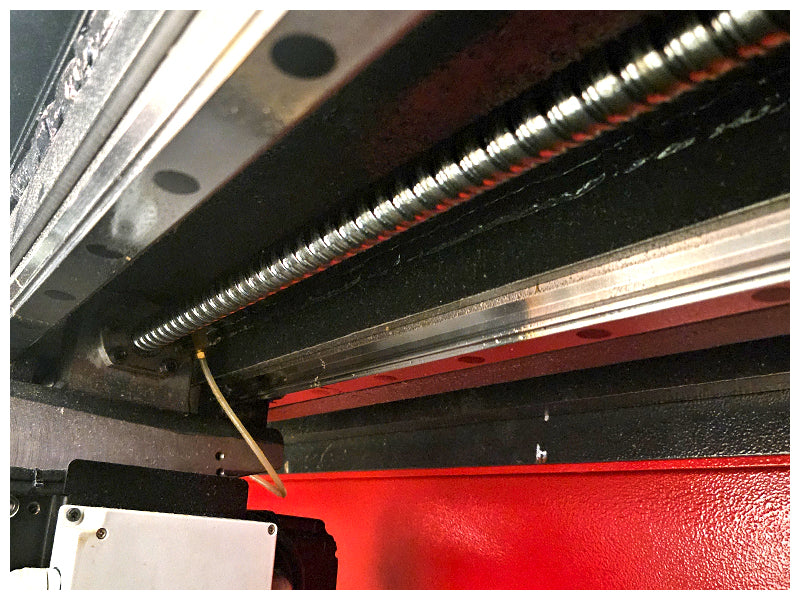

  • Ballscrew drive on both X and Y axis

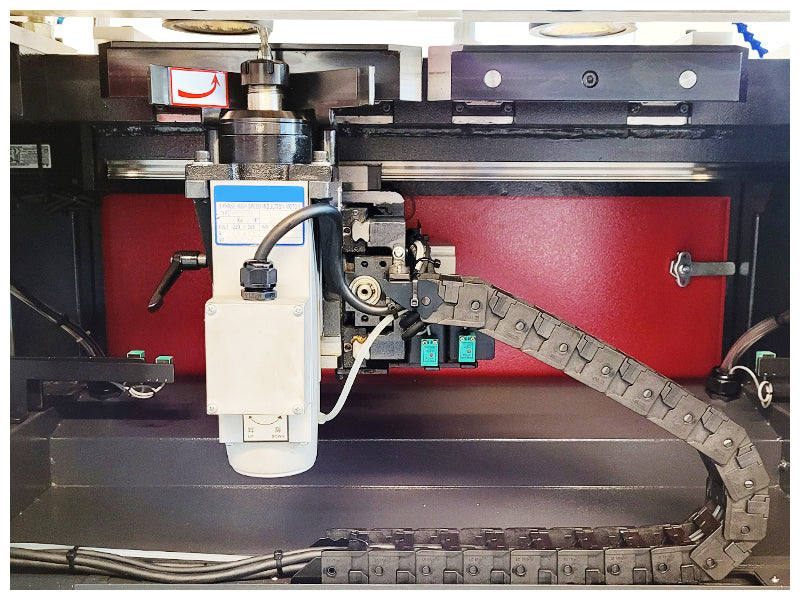

  • Precision linear guideways for smooth and precise movement of the spindle motor
  • Automatic lubricator to lubricate the ballscrew and guideways

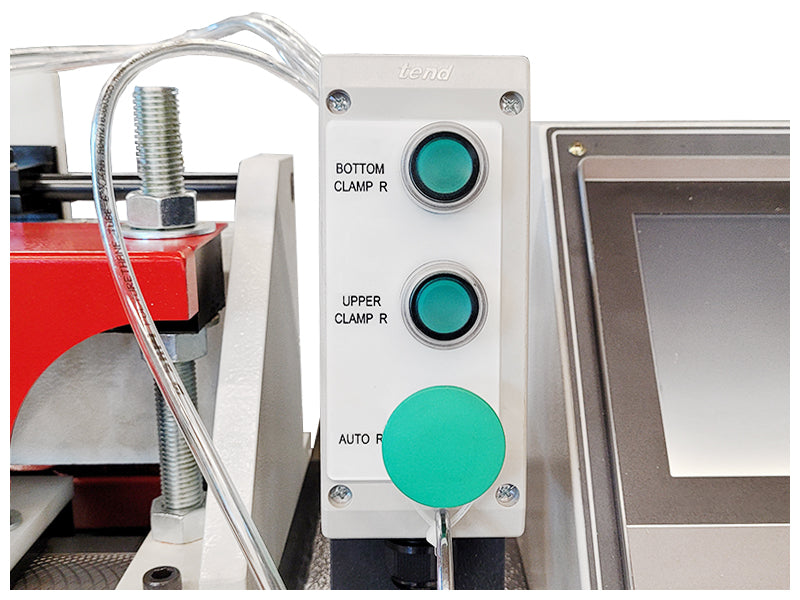

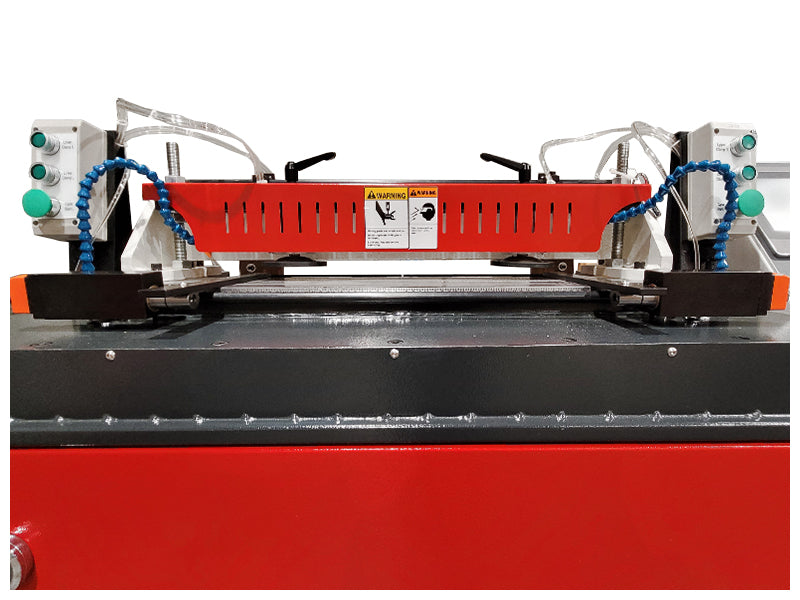

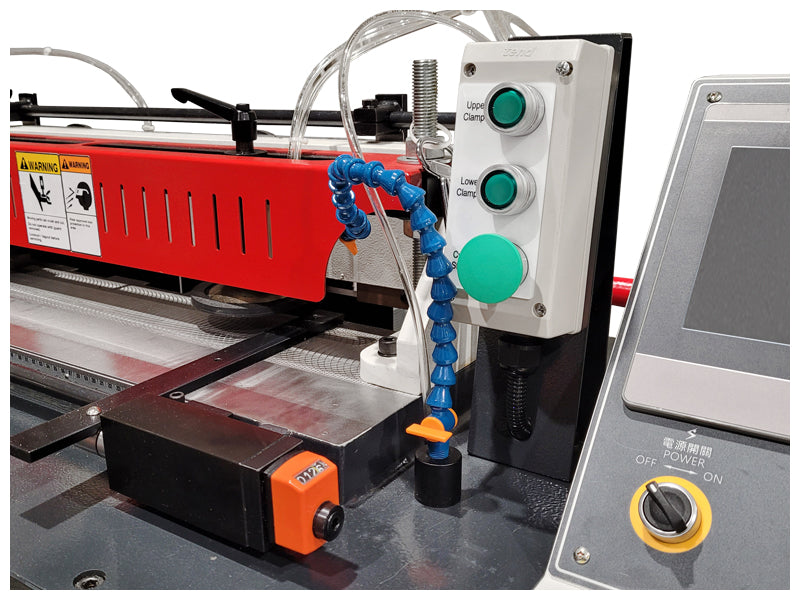

  • Individual pneumatic clamps capable of clamping all four pieces of the drawer at once
  • Fences are equipped with UHMW anti tear-out blocks
  • (1) 3” and (1) 4″ dust outlet



Maximum thickness of board:
1” (25 mm)
Minimum thickness of board:
0.315” (8 mm)
Maximum working width:
23.6” (600 mm)
Dovetail spacing:
Variable
Spindle speed:
20000 R.P.M
Spindle motor:
2 HP
Total motor horsepower:
4 HP
Height of table:
33.5” (850 mm)
Dust hood outlet diameter:
ø3″ x 1 & ø4″ x 1
Working air pressure:
80 PSI (6 kg/cm²)
Electrics:
230/3/60 = 14 Amps
Machine dimensions (LxWxH):
59” x 33” x 52” (1500x840x1300 mm)
Packing dimensions (LxWxH):
63” x 37” x 56” (1600x940x1400 mm)
Machine weight:
1540 lbs (700 kgs)
Shipping weight:
1584 lbs (720 kgs)
