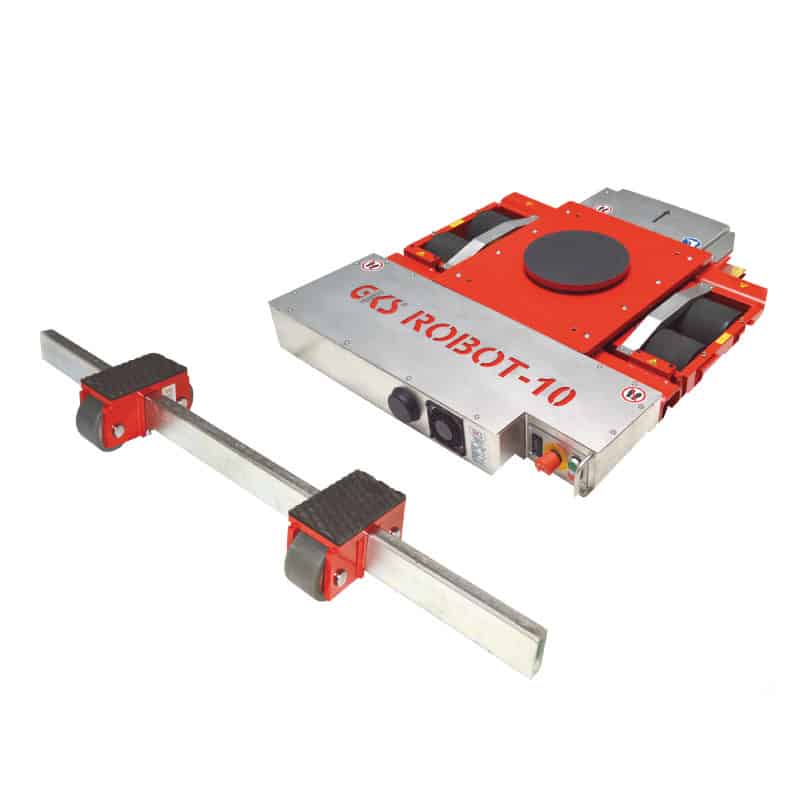

GKS Robots are battery-powered dolly systems that allow for easy movement of heavy equipment or machinery throughout a facility or assembly line. The new Robot 10, remote-control dolly unit, is quick, agile, and more independent than all its predecessors. The Robot 10 offers double the speed in both slow and fast modes than that of the Robot 20 or Robot 40 while maintaining a minimum run time of 90 -120 minutes. One of the newest features of the Robot 10 is an integrated synchronous running mode allowing the Robot 10 to travel in a straight line without the need for correction by the operator.
We have Robot 10 units available for demonstration and are happy to discuss all projects and applications. If you would like to discuss your motorized dolly needs further, please give us a call.
GKS Robot 10 Product Information Sheet
Features:
- Max. load capacity is 22,000 lbs. (10 tons)
- Powered by a lithium polymer battery
- Remote control that allows for both simultaneous steering and driving
- Can move up to 36 ft/min
- Loading height of 7.1″
- Simultaneous steering and driving
- Remote control allows you to be your own spotter, no need for a towing device
- Less manpower needed to move the load
- Easy battery replacement—can even be done while under load
- No cords to deal with
- No exhaust from propane- able to be used more places
- Straight line driving function to keep ROBOT moving perfectly straight
- Optional: Lift table to lift the load directly from the ROBOT
- 2 year/900 hour warranty
Technical Specifications:
- Weight: 690 lbs.
- Load Capacity: 22,000 lbs. (10 t) 100kN
- Drive: 2 DC Motor (24 V / 930 W)
- Battery Type: Li-Lonen
- Battery Life: 4-6 Hours
- Speed: Min: 20 ft/min, Max: 36 ft/min
- Incline Max: 5%
- Loading Height: 7.1" (180mm)
- Roller Amount: 8
- Roller Size: 85 x 85mm
- L-ROBOT Dimensions (L x W x H): 39.1 x 33.2 x 7.1" (992 x 842 x 180mm)
- F-ROBOT Dimensions (L x W x H): 11 x 63 x 7.1" (280 x 1600 x 180mm)
- Contact surface L-ROBOT: 9.8" (250mm)
- Contact Surface / Cassette: 8.6 - 10.8" (25 x 275mm)
- Connecting Bar, Adjustable: 1.4' - 5.3' (440 - 1600mm)
- Swivel Plate / Steering Angle: ∅ 6.7" (170 mm) / ± 90°
- F Dolly Weight: 243 lbs. (100 kg)
- L-ROBOT Weight: 529 lbs. (240 kg)
