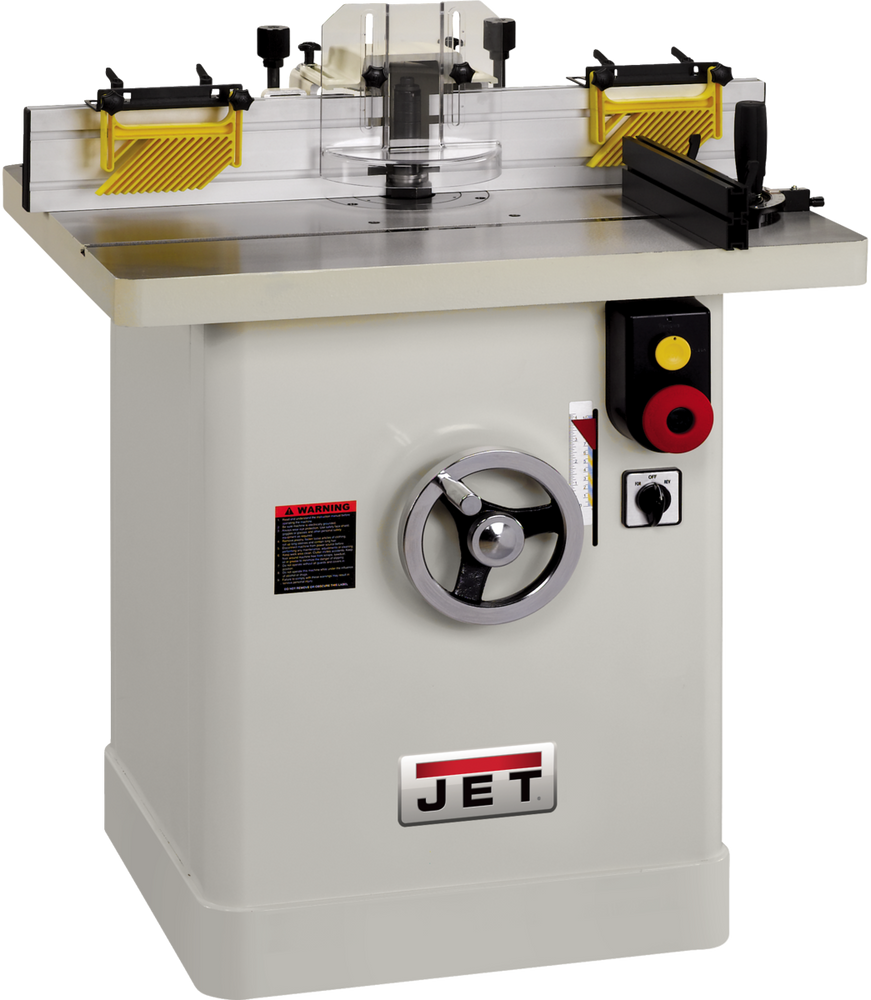

JWS-35X5-1 Industrial Shaper 5HP, 1Ph

by Jet
$3,699.99
SKU 708326
  • Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
  • Powerful 5HP, 1Ph motor with magnetic controls
  • Poly-V-belt transfers maximum power to the spindle
  • Large 26-3/4 X 32-1/4 precision ground cast iron table provides a durable work area, predrilled for power feeder
  • Spindle height scale
  • Starting pins for irregular shaping
  • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
  • Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
  • Reversible spindle speeds for diverse shaping jobs
  • 4 Dust port built into fence for convenient hookup to any dust collection system
Height41.000
Length30.000
Gross Weight550.000
Net Weight473.000
Volume28.472
Width40.000
Ready For Web (US)Yes
Prop 65Cancer and Reproductive Harm
Spindle Size Under Nut (In.)4
Router Bit Collet Included#N/A
Spindle Speed (RPM)4000/6000/8000/10000
Dust Collection Minimum CFM Required (CFM)600
Spindle Tilt (Deg.)#N/A
Table Opening Diameter (In.)6-19/64
Motor Power (HP)5
Spindles Included1-1/4
Motor Phase (PH)1
Maximum Spindle Diameter (In.)1-1/4
Recommended Circuit Size (Amps.)#N/A
ReversibleYes
Wiring Remarks#N/A
Sliding Table Size (In.)#N/A
Maximum Diameter Cutter Below Table (In.)6
Table T-Slot (In.)3/4 x 3/8
Spindle Travel (In.)4
Table Travel (In.)#N/A
Table Height from Floor (In.)33-1/4
Fence Size (L x H) (In.)16 x 4-3/4
Electrical ControlsYes
Prewired Voltage (V.)230
Maximum Diameter Cutter Above Table (In.)7-1/2
Motor Voltage (V.)230
Dust Port Outside Diameter (In.)4
Motor Amps17
Digital Readouts#N/A
Fence Travel (Major and Minor) (In.)4, 1
Table Insert Opening Diameter (In.)2-9/16, 4-5/16
Style (Type)#N/A
Table Size (L x W) (In.)32-1/4 x 26-3/4
Table Inserts (In.)2
